GRX122

Toyota REIZ · 2005 · 4,241 parts · 192 categories

← Back to categories

4,241 items

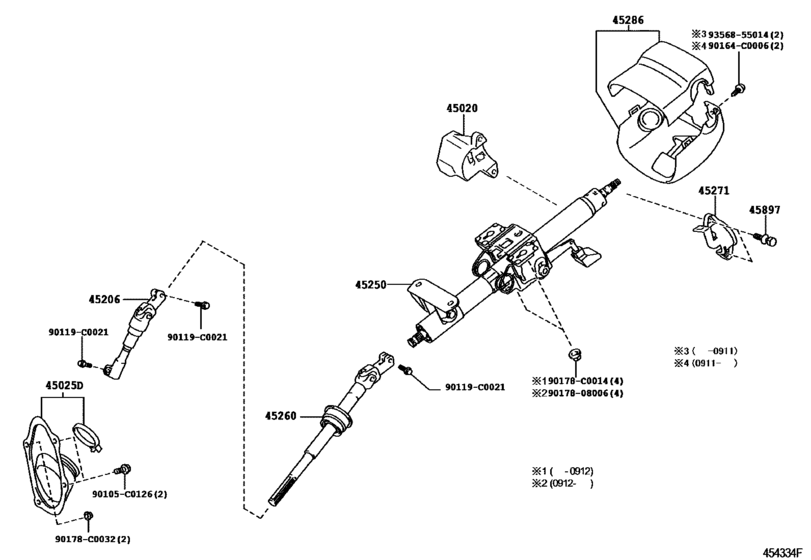

Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V) 19

#	OEM	Part name
45020	45020-0P020	Bracket Assy, Steering Column Upper W/switch
45025	45025-0P010	Cover Sub-Assy, Steering Column Hole, No.1
45206	45206-0N010	Yoke Sub-Assy, Steering Sliding W/shaft
45206	45206-0N020	Yoke Sub-Assy, Steering Sliding W/shaft
45250	45250-0P010	Column Assy, Steering
45250	45250-0P020	Column Assy, Steering
45260	45260-0P010	Shaft Assy, Steering Intermediate, No.2
45260	45260-0P011	Shaft Assy, Steering Intermediate, No.2
45271	45271-0P010	Clamp, Steering Column, Upper
45286	45286-0P901	Cover, Steering Column
45286	45286-0P902	Cover, Steering Column
45897	45897-12020	Bolt, Steering Lock Set
90105	90105-C0126	New Genuine Part
90119	90119-C0021	New Genuine Part
90164	90164-C0006	New Genuine Part
90178	90178-C0014	Nut (For Transmission Control Cable)
90178	90178-C0032	Nut, Wire Adjusting, No.1
9017808006	90178-08006	NUT FLANGE
9356855014	93568-55014	Screw

OEM	Part name	Category
45020-0P020	Bracket Assy, Steering Column Upper W/switch	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
45025-0P010	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
45206-0N010	Yoke Sub-Assy, Steering Sliding W/shaft	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
45206-0N020	Yoke Sub-Assy, Steering Sliding W/shaft	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
45250-0P010	Column Assy, Steering	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
45250-0P020	Column Assy, Steering	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
45260-0P010	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
45260-0P011	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
45271-0P010	Clamp, Steering Column, Upper	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
45286-0P901	Cover, Steering Column	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
45286-0P902	Cover, Steering Column	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
90105-C0126	New Genuine Part	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
90119-C0021	New Genuine Part	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
90164-C0006	New Genuine Part	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
90178-08006	NUT FLANGE	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
90178-C0014	Nut (For Transmission Control Cable)	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
90178-C0032	Nut, Wire Adjusting, No.1	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
93568-55014	Screw	Steering Column & Shaft ([10.2007 - ] (0510-0710)GRX121 ; (0710- )25V,30V)
