Search › Model › GRX122

GRX122

Toyota REIZ · 2005 · 4,241 parts · 192 categories

4,241 items

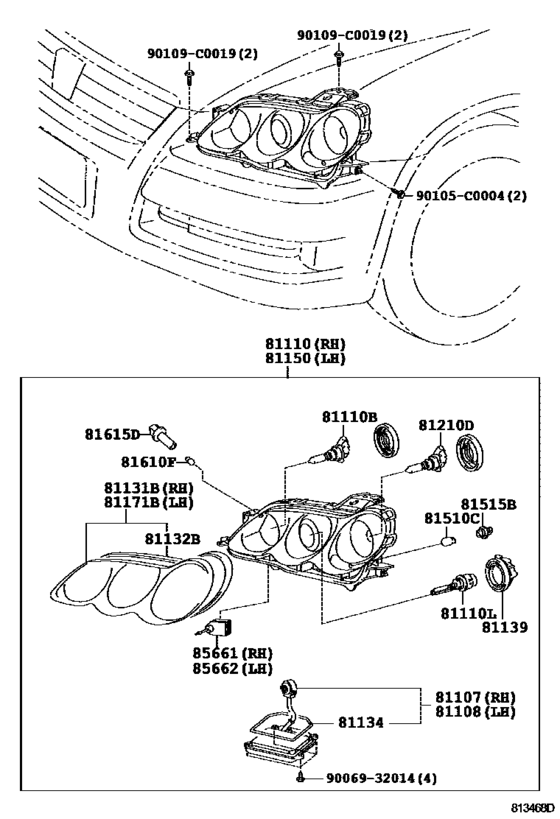

Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122) 29

#	OEM	Part name
81107	81107-0P010	Computer Sub-Assy, Headlamp Light Control, Rh
81110	81110-0P010	Headlamp Assy, Rh
81110	81110-0P011	Headlamp Assy, Rh
81110	90080-81041	Bulb(For Headlamp, No.1)
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-20013	Bulb, Discharge Headlamp
81110	90981-20024	Bulb, Discharge Headlamp
81110	90981-20021	Bulb, Discharge Headlamp
81110	81110-0P030	Headlamp Assy, Rh
81110	81110-0P031	Headlamp Assy, Rh
81131	81131-0P020	Head Lamp Lens, Rh
81132	81132-0P020	Gasket, Headlamp Lens
81134	81134-0P020	Gasket, Headlamp
81139	81139-0P020	Cover, Headlamp Socket
81150	81150-0P010	Headlamp Assy, Lh
81150	81150-0P011	Headlamp Assy, Lh
81150	81150-0P030	Headlamp Assy, Lh
81150	81150-0P031	Headlamp Assy, Lh
81171	81171-0P020	Head Lamp Lens, Lh
81210	90981-13047	Bulb (HB4)
81510	90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81515	90069-81062	Socket, Front Turn Signal Lamp
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
81615	90069-81061	Socket, Clearance Lamp
85661	85661-12020	Motor, Headlamp Leveling, Rh
90105	90105-C0004	New Genuine Part
90109	90109-C0019	New Genuine Part
9006932014	90069-32014	New Genuine Part

OEM	Part name	Category
81107-0P010	Computer Sub-Assy, Headlamp Light Control, Rh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81110-0P010	Headlamp Assy, Rh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81110-0P011	Headlamp Assy, Rh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81110-0P030	Headlamp Assy, Rh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81110-0P031	Headlamp Assy, Rh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81131-0P020	Head Lamp Lens, Rh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81132-0P020	Gasket, Headlamp Lens	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81134-0P020	Gasket, Headlamp	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81139-0P020	Cover, Headlamp Socket	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81150-0P010	Headlamp Assy, Lh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81150-0P011	Headlamp Assy, Lh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81150-0P030	Headlamp Assy, Lh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81150-0P031	Headlamp Assy, Lh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
81171-0P020	Head Lamp Lens, Lh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
85661-12020	Motor, Headlamp Leveling, Rh	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90069-32014	New Genuine Part	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90069-81061	Socket, Clearance Lamp	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90069-81062	Socket, Front Turn Signal Lamp	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90080-81041	Bulb(For Headlamp, No.1)	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90105-C0004	New Genuine Part	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90109-C0019	New Genuine Part	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90981-13047	Bulb (HB4)	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90981-20013	Bulb, Discharge Headlamp	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90981-20021	Bulb, Discharge Headlamp	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
90981-20024	Bulb, Discharge Headlamp	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
99132-12050	Bulb (12V 5W)	Headlamp ([10.2005 - ] DISCHARGE (0510- )GRX122)
