Search › Model › GRX122

GRX122

Toyota REIZ · 2005 · 4,241 parts · 192 categories

4,241 items

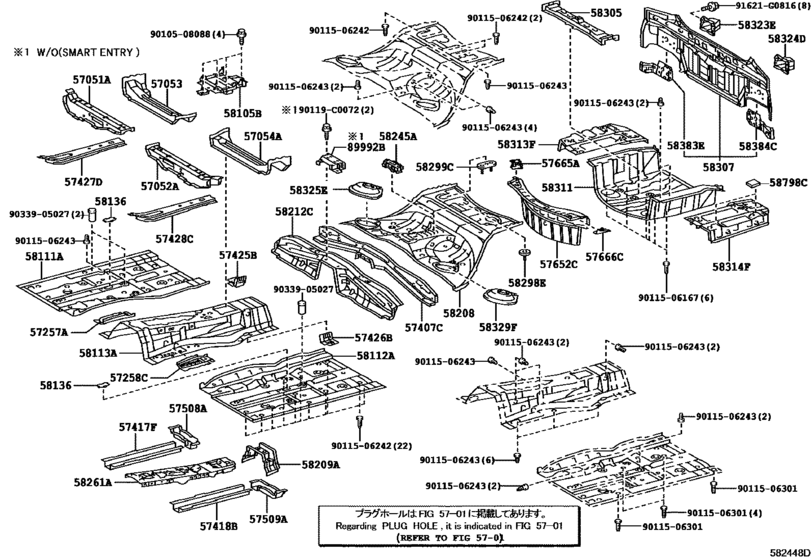

Floor Pan & Lower Back Panel ([10.2005 - ] (0510- )) 60

#	OEM	Part name
57051	57051-30110	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-22090	Member Sub-Assy, Front Floor Cross, Lh
57053	57053-30071	Reinforcement Sub-Assy, Front Floor Cross Member, Rh
57054	57054-30071	Reinforcement Sub-Assy, Front Floor Cross Member, Lh
57257	57257-30040	Bracket, Engine Rear Mounting Member, Rh
57257	57257-30041	Bracket, Engine Rear Mounting Member, Rh
57258	57258-30090	Bracket, Engine Rear Mounting Member, Lh
57258	57258-30091	Bracket, Engine Rear Mounting Member, Lh
57407	57407-0N010	Member Sub-Assy, Center Floor Cross
57417	57417-30080	Reinforcement, Front Floor Under, Rh
57425	57425-30020	Reinforcement, Front Floor, No.2 Rh
57426	57426-30020	Reinforcement, Front Floor, No.2 Lh
57427	57427-30030	Reinforcement, Front Floor, Upper
57508	57508-0P010	Reinforcement, Center Floor Crossmember, Rh
57509	57509-0P010	Reinforcement, Center Floor Crossmember, Lh
57652	57652-0N010	Member, Rear Floor Cross, No.1
57665	57665-22030	Reinforcement, Rear Floor Crossmember, No.2
57666	57666-22030	Reinforcemnt, Rear Floor Crossmember
58105	58105-30040	Panel Sub-Assy, Front Floor Rear Upper Sub
58111	58111-30450	Pan, Front Floor, Rh
58111	57257-30042	Bracket, Engine Rear Mounting Member, Rh
58111	58111-30460	Pan, Front Floor, Rh
58111	87212-30431	Duct, Air, Rear No.1
58112	58112-30160	Panel, Front Floor, Lh
58112	58112-30162	Panel, Front Floor, Lh
58112	90950-01950	New Genuine Part
58112	58112-30161	Panel, Front Floor, Lh
58113	58113-0N010	Panel, Front Floor, Center
58136	58136-51010	Cover, Front Floor Hole
58208	58211-0N010	Pan, Center Floor
58209	58209-30050	Reinforcement Sub-Assy, Drive Shaft Center Support
58212	58202-0N010	Pan Sub-Assy, Center Floor, Front
58245	58245-0P010	Bracket, Rear Seat Hinge, Center No.1
58261	58261-30231	Cover, Transmission
58298	58298-30030	Bracket, Hot Air Intake, No.1
58299	58299-30010	Bracket, Hot Air Intake, No.2
58305	58305-0N010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-0P010	Panel Sub-Assy, Body Lower Back
58311	58311-0P010	Pan, Rear Floor
58313	58313-0P010	Extension, Rear Floor Pan To Quarter Panel, Rh
58314	58303-0P020	Extension, Rear Floor Pan To Quarter Panel, Lh
58323	58323-0P010	Reinforcement, Rear Bumper Arm Support, Rh
58323	58323-0P020	Reinforcement, Rear Bumper Arm Support, Rh
58324	58324-0P010	Reinforcement, Rear Bumper Arm Support, Lh
58324	58324-0P021	Reinforcement, Rear Bumper Arm Support, Lh
58325	58325-30020	Cover, Rear Floor Service Hole
58329	58329-30030	Cover, Rear Floor Service Hole, No.2
58383	58383-0P010	Reinforcement, Body Lower Back, No.2 Rh
58384	58384-0P010	Reinforcement, Body Lower Back, No.2 Lh
58798	58798-0N020	Cushion, Jack Carrier
58798	58798-0P010	Cushion, Jack Carrier
89992	89992-0P040	Case, Less Oscillator Electrical Key
90119	90119-C0072	New Genuine Part
91621	91621-G0816	BOLT WWASHER
9010508088	90105-08088	New Genuine Part
9011506167	90115-06167	Bolt, Weld(For Front Floor Panel, Center)
9011506242	90115-06242	New Genuine Part
9011506243	90115-06243	Bolt, Weld(For Front Floor Panel, Center)
9011506301	90115-06301	Bolt, Weld(For Front Floor Pan, Lh)
9033905027	90339-05027	New Genuine Part

OEM	Part name	Category
57051-30110	Member Sub-Assy, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57052-22090	Member Sub-Assy, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57053-30071	Reinforcement Sub-Assy, Front Floor Cross Member, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57054-30071	Reinforcement Sub-Assy, Front Floor Cross Member, Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57257-30040	Bracket, Engine Rear Mounting Member, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57257-30041	Bracket, Engine Rear Mounting Member, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57257-30042	Bracket, Engine Rear Mounting Member, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57258-30090	Bracket, Engine Rear Mounting Member, Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57258-30091	Bracket, Engine Rear Mounting Member, Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57407-0N010	Member Sub-Assy, Center Floor Cross	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57417-30080	Reinforcement, Front Floor Under, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57425-30020	Reinforcement, Front Floor, No.2 Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57426-30020	Reinforcement, Front Floor, No.2 Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57427-30030	Reinforcement, Front Floor, Upper	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57508-0P010	Reinforcement, Center Floor Crossmember, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57509-0P010	Reinforcement, Center Floor Crossmember, Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57652-0N010	Member, Rear Floor Cross, No.1	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57665-22030	Reinforcement, Rear Floor Crossmember, No.2	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
57666-22030	Reinforcemnt, Rear Floor Crossmember	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58105-30040	Panel Sub-Assy, Front Floor Rear Upper Sub	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58111-30450	Pan, Front Floor, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58111-30460	Pan, Front Floor, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58112-30160	Panel, Front Floor, Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58112-30161	Panel, Front Floor, Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58112-30162	Panel, Front Floor, Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58113-0N010	Panel, Front Floor, Center	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58136-51010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58202-0N010	Pan Sub-Assy, Center Floor, Front	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58209-30050	Reinforcement Sub-Assy, Drive Shaft Center Support	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58211-0N010	Pan, Center Floor	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58245-0P010	Bracket, Rear Seat Hinge, Center No.1	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58261-30231	Cover, Transmission	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58298-30030	Bracket, Hot Air Intake, No.1	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58299-30010	Bracket, Hot Air Intake, No.2	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58303-0P020	Extension, Rear Floor Pan To Quarter Panel, Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58305-0N010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58307-0P010	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58311-0P010	Pan, Rear Floor	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58313-0P010	Extension, Rear Floor Pan To Quarter Panel, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58323-0P010	Reinforcement, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58323-0P020	Reinforcement, Rear Bumper Arm Support, Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58324-0P010	Reinforcement, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58324-0P021	Reinforcement, Rear Bumper Arm Support, Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58325-30020	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58329-30030	Cover, Rear Floor Service Hole, No.2	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58383-0P010	Reinforcement, Body Lower Back, No.2 Rh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58384-0P010	Reinforcement, Body Lower Back, No.2 Lh	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58798-0N020	Cushion, Jack Carrier	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
58798-0P010	Cushion, Jack Carrier	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
87212-30431	Duct, Air, Rear No.1	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
89992-0P040	Case, Less Oscillator Electrical Key	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
90105-08088	New Genuine Part	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
90115-06167	Bolt, Weld(For Front Floor Panel, Center)	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
90115-06242	New Genuine Part	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
90115-06243	Bolt, Weld(For Front Floor Panel, Center)	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
90115-06301	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
90119-C0072	New Genuine Part	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
90339-05027	New Genuine Part	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
90950-01950	New Genuine Part	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
91621-G0816	BOLT WWASHER	Floor Pan & Lower Back Panel ([10.2005 - ] (0510- ))
