Search › Model › GRX121

GRX121

Toyota MARK-X · 2004 · 4,893 parts · 202 categories

4,893 items

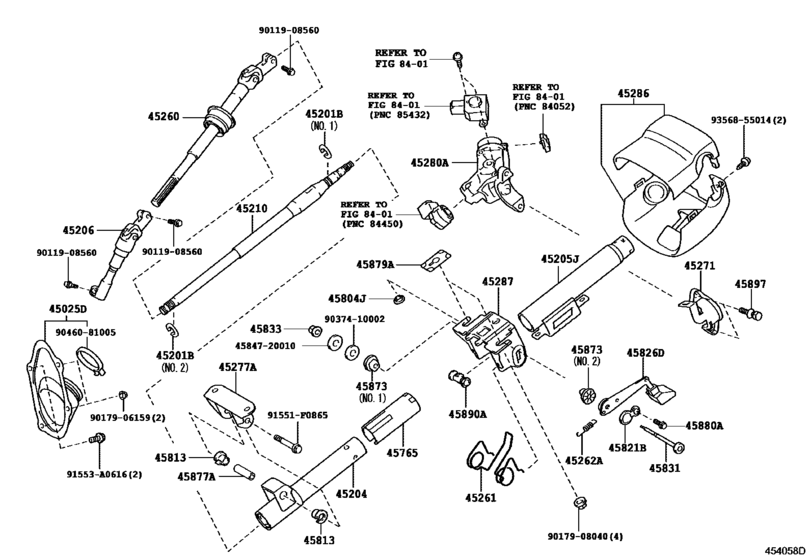

Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120) 51

#	OEM	Part name
45025	45025-22130	Cover Sub-Assy, Steering Column Hole, No.1
45201	90520-17269	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-21023	Ring, Shaft Snap(For Steering Main Shaft)
45204	45204-22090	Tube Assy, Steering Column, Lower
45205	45205-22260	Tube Sub-Assy, Steering Column, Upper
45205	45205-22270	Tube Sub-Assy, Steering Column, Upper
45206	45206-30100	Yoke Sub-Assy, Steering Sliding W/shaft
45206	45206-30140	Yoke Sub-Assy, Steering Sliding W/shaft
45210	45210-22280	Shaft Assy, Steering Main
45210	45210-22281	Shaft Assy, Steering Main
45210	45210-22290	Shaft Assy, Steering Main
45210	45210-22291	Shaft Assy, Steering Main
45260	45260-22370	Shaft Assy, Steering Intermediate, No.2
45260	45260-22371	Shaft Assy, Steering Intermediate, No.2
45261	45261-35020	Spring, Tilt Steering Jump Up
45262	45262-35010	Spring, Tilt Lever Return
45271	45271-22020	Clamp, Steering Column, Upper
45271	45271-22030	Clamp, Steering Column, Upper
45277	45277-22030	Support, Tilt Steering
45277	45277-22031	Support, Tilt Steering
45280	45280-22510	Bracket Assy, Steering Column, Upper
45280	45280-22520	Actuator Or Upper Bracket Assy, Steering Lock
45286	45286-22960	Cover, Steering Column
45286	45286-22962	Cover, Steering Column
45287	45878-35160	Cover, Steering Column, Lwr
45287	45878-35161	Bracket, Break Away
45765	45765-35010	Guide, Telescopic Steering
45804	45804-22030	Collar Sub-Assy, Break Away
45813	45813-12020	Collar, Tilt Steering Support, No.1
45821	45821-35020	Reinforce, Tilt Steering Support, No.1
45826	45826-22130	Lever, Steering Tilt
45831	45831-35010	Bolt, Tilt Lever Lock, No.1
45833	45833-20030	Nut, Tilt Steering Adjusting, No.1
45873	45873-20050	Stopper, Steering Column Tube
45873	45873-35010	Stopper, Steering Column Tube
45877	45877-35030	Spacer, Steering Column Bracket
45879	45879-22070	Capsule, Break Away
45880	45832-12010	Bolt(For Steering Tilt Lever)
45890	45823-35020	Pawl Assy, Tilt Steering
45897	45897-12020	Bolt, Steering Lock Set
91551	91551-F0865	New Genuine Part
91553	91553-A0616	New Genuine Part
4584720010	45847-20010	ROTOR TILT STEERING
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9017906159	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017906159	90080-17210	Nut, Rear Wiper Link Pivot, No.1
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9037410002	90374-10002	New Genuine Part
9046081005	90460-81005	New Genuine Part
9356855014	93568-55014	Screw

OEM	Part name	Category
45025-22130	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45204-22090	Tube Assy, Steering Column, Lower	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45205-22260	Tube Sub-Assy, Steering Column, Upper	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45205-22270	Tube Sub-Assy, Steering Column, Upper	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45206-30100	Yoke Sub-Assy, Steering Sliding W/shaft	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45206-30140	Yoke Sub-Assy, Steering Sliding W/shaft	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45210-22280	Shaft Assy, Steering Main	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45210-22281	Shaft Assy, Steering Main	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45210-22290	Shaft Assy, Steering Main	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45210-22291	Shaft Assy, Steering Main	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45260-22370	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45260-22371	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45261-35020	Spring, Tilt Steering Jump Up	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45262-35010	Spring, Tilt Lever Return	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45271-22020	Clamp, Steering Column, Upper	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45271-22030	Clamp, Steering Column, Upper	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45277-22030	Support, Tilt Steering	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45277-22031	Support, Tilt Steering	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45280-22510	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45280-22520	Actuator Or Upper Bracket Assy, Steering Lock	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45286-22960	Cover, Steering Column	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45286-22962	Cover, Steering Column	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45765-35010	Guide, Telescopic Steering	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45804-22030	Collar Sub-Assy, Break Away	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45813-12020	Collar, Tilt Steering Support, No.1	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45821-35020	Reinforce, Tilt Steering Support, No.1	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45823-35020	Pawl Assy, Tilt Steering	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45826-22130	Lever, Steering Tilt	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45831-35010	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45832-12010	Bolt(For Steering Tilt Lever)	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45833-20030	Nut, Tilt Steering Adjusting, No.1	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45847-20010	ROTOR TILT STEERING	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45873-20050	Stopper, Steering Column Tube	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45873-35010	Stopper, Steering Column Tube	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45877-35030	Spacer, Steering Column Bracket	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45878-35160	Cover, Steering Column, Lwr	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45878-35161	Bracket, Break Away	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45879-22070	Capsule, Break Away	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
90080-11555	Bolt w-washer	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
90080-17210	Nut, Rear Wiper Link Pivot, No.1	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
90374-10002	New Genuine Part	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
90460-81005	New Genuine Part	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
90520-17269	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
90520-21023	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
91551-F0865	New Genuine Part	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
91553-A0616	New Genuine Part	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
93568-55014	Screw	Steering Column & Shaft ([11.2004 - 10.2006] (0411-0610)GRX120,121..250G,300G ; (0610- )GR X120)
