Search › Model › GRX121

GRX121

Toyota MARK-X · 2004 · 4,893 parts · 202 categories

4,893 items

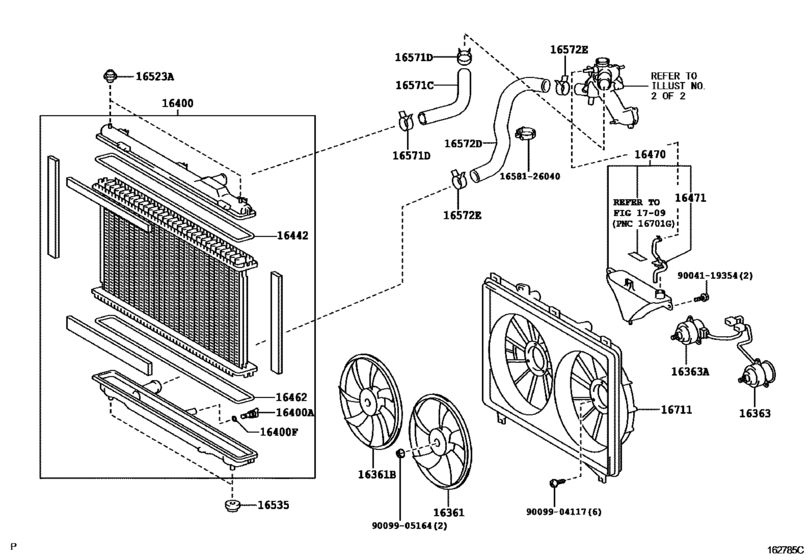

Radiator & Water Outlet ([11.2004 - ] (0411- )) 71

#	OEM	Part name
16031	16031-31020	Water Inlet Sub-Assy, W/thermostat
16261	16261-31040	Hose, Water By-Pass
16261	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
16261	96136-52101	Clip(For Ventilation Hose)
16261	16261-31070	Hose, Water By-Pass, No.1
16261	16261-31071	Hose, Water By-Pass, No.1
16261	96137-51501	Clip(For Water By-Pass Hose Assy)
16264	16264-31060	Hose, Water By-Pass, No.2
16264	16264-31120	Hose, Water By-Pass, No.2
16264	16264-31030	Hose, Water By-Pass, No.2
16267	16267-31021	Hose, Water By-Pass, No.3
16279	16279-31020	Pipe, Water By-Pass, No.3
16279	16279-31050	Pipe, Water By-Pass, No.3
16281	16281-31020	Hose, Water By-Pass, No.4
16281	16281-31021	Hose, Water By-Pass, No.4
16283	16283-31010	Hose, Water By-Pass, No.6
16296	16296-31020	Hose, Water By-Pass, No.8
16296	16296-31021	Hose, Water By-Pass, No.8
16296	16296-31040	Hose, Water By-Pass, No.8
16296	96136-42701	Clamp Or Clip, Hose(For Water By-Pass Hose)
16297	16297-31020	Hose, Water By-Pass, No.9
16297	16297-31030	Hose, Water By-Pass, No.9
16297	16297-31031	Hose, Water By-Pass, No.9
16304	16304-31031	Outlet Sub-Assy, Water
16304	16304-31037	Outlet Sub-Assy, Water
16304	16304-31032	Outlet Sub-Assy, Water
16304	16304-31033	Outlet Sub-Assy, Water
16306	16306-31030	Pipe Sub-Assy, Water Outlet
16306	16306-31031	Pipe Sub-Assy, Water Outlet
16306	96761-35025	Ring, O(For Water Outlet Pipe)
16325	16325-31010	Gasket, Water Inlet Housing, No.1
16326	16326-31020	Gasket, Water Inlet Housing, No.2
16333	92122-80618	Bolt, Stud(For Water Outlet Housing)
16341	16341-31010	Gasket, Water Outlet
16356	16356-31021	Joint, Water By-Pass, Rear
16361	16361-31090	Fan
16361	16361-31100	Fan, No.2
16363	16363-74340	Motor, Cooling Fan
16363	16363-31040	Motor, Cooling Fan, No.2
16400	16400-31370	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16401	16401-28280	Cap Sub-Assy, Radiator
16401	16401-31480	Cap Sub-Assy, Radiator
16401	16401-31650	Cap Sub-Assy, Radiator
16401	16401-75440	Cap Sub-Assy, Radiator
16442	16462-46040	Ring, O(For Radiator Upper Tank)
16462	16462-70500	Ring, O(For Radiator Lower Tank)
16470	16470-31040	Tank Assy, Radiator Reserve
16471	16405-31020	Cap Sub-Assy, Reserve Tank
16471	16405-31021	Cap Sub-Assy, Reserve Tank
16523	16523-31010	Cushion, Radiator Support
16535	90480-40021	Grommet(For Radiator Support)
16571	16571-31150	Hose, Radiator, No.1
16571	96136-44801	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-54801	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-31191	Hose, Radiator, No.2
16581	16581-31010	Clamp, Hose(For Water Hose)
16711	16711-31220	Shroud, Fan
91553	91553-A0810	New Genuine Part
1658126040	16581-26040	Clamp, Hose(For Water Hose)
9004119354	90041-19354	BOLT
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009905164	90099-05164	Nut
9012606028	90126-06028	Bolt, Stud(For Oil Pan)
9155180620	91551-80620	Bolt
9155180635	91551-80635	Bolt(For Head To Camshaft Bearing Cap)
9167180612	91671-80612	Bolt
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9613741301	96137-41301	Clamp Or Clip, Hose(For Water By-Pass Hose)

OEM	Part name	Category
16031-31020	Water Inlet Sub-Assy, W/thermostat	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16261-31040	Hose, Water By-Pass	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16261-31070	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16261-31071	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16264-31030	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16264-31060	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16264-31120	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16267-31021	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16279-31020	Pipe, Water By-Pass, No.3	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16279-31050	Pipe, Water By-Pass, No.3	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16281-31020	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16281-31021	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16283-31010	Hose, Water By-Pass, No.6	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16296-31020	Hose, Water By-Pass, No.8	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16296-31021	Hose, Water By-Pass, No.8	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16296-31040	Hose, Water By-Pass, No.8	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16297-31020	Hose, Water By-Pass, No.9	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16297-31030	Hose, Water By-Pass, No.9	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16297-31031	Hose, Water By-Pass, No.9	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16304-31031	Outlet Sub-Assy, Water	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16304-31032	Outlet Sub-Assy, Water	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16304-31033	Outlet Sub-Assy, Water	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16304-31037	Outlet Sub-Assy, Water	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16306-31030	Pipe Sub-Assy, Water Outlet	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16306-31031	Pipe Sub-Assy, Water Outlet	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16325-31010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16326-31020	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16341-31010	Gasket, Water Outlet	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16356-31021	Joint, Water By-Pass, Rear	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16361-31090	Fan	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16361-31100	Fan, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16363-31040	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16363-74340	Motor, Cooling Fan	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16400-31370	Radiator Assy	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16401-28280	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16401-31480	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16401-31650	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16401-75440	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16405-31020	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16405-31021	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16462-46040	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16462-70500	Ring, O(For Radiator Lower Tank)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16470-31040	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16523-31010	Cushion, Radiator Support	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16571-31150	Hose, Radiator, No.1	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16572-31191	Hose, Radiator, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16581-26040	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16581-31010	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
16711-31220	Shroud, Fan	Radiator & Water Outlet ([11.2004 - ] (0411- ))
90041-19354	BOLT	Radiator & Water Outlet ([11.2004 - ] (0411- ))
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([11.2004 - ] (0411- ))
90099-05164	Nut	Radiator & Water Outlet ([11.2004 - ] (0411- ))
90126-06028	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
90480-40021	Grommet(For Radiator Support)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
91551-80620	Bolt	Radiator & Water Outlet ([11.2004 - ] (0411- ))
91551-80635	Bolt(For Head To Camshaft Bearing Cap)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
91553-A0810	New Genuine Part	Radiator & Water Outlet ([11.2004 - ] (0411- ))
91671-80612	Bolt	Radiator & Water Outlet ([11.2004 - ] (0411- ))
91671-80614	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
92122-80618	Bolt, Stud(For Water Outlet Housing)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
96136-42701	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
96136-44801	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
96136-52101	Clip(For Ventilation Hose)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
96136-54801	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
96137-41301	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
96137-51501	Clip(For Water By-Pass Hose Assy)	Radiator & Water Outlet ([11.2004 - ] (0411- ))
96761-35025	Ring, O(For Water Outlet Pipe)	Radiator & Water Outlet ([11.2004 - ] (0411- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 202
Collected: 2026-08-04
