GRS218

Toyota CROWN-MAJESTA · 2015 · 3,353 parts · 187 categories

3,353 items

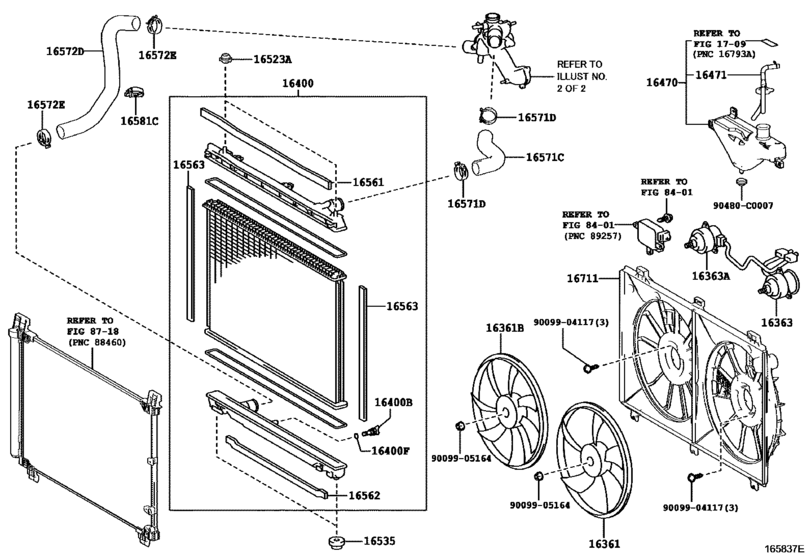

Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE) 56

#	OEM	Part name
16031	16031-31020	Water Inlet Sub-Assy, W/thermostat
16261	16261-0P010	Hose, Water By-Pass
16261	90466-C0013	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	16261-0P060	Hose, Water By-Pass, No.1
16261	90466-C0023	Clip(For Water By-Pass Hose No.1)
16264	16264-0P060	Hose, Water By-Pass, No.2
16264	16264-0P010	Hose, Water By-Pass, No.2
16267	16267-0P060	Hose, Water By-Pass, No.3
16279	16279-31040	Pipe, Water By-Pass, No.3
16281	16281-0P030	Hose, Water By-Pass, No.4
16283	16283-0P010	Hose, Water By-Pass, No.6
16288	16288-31031	Pipe, Water By-Pass, No.4
16296	16296-31010	Hose, Water By-Pass, No.8
16296	96136-42701	Clamp Or Clip, Hose(For Water By-Pass Hose)
16297	16297-31010	Hose, Water By-Pass, No.9
16304	16304-0P010	Outlet Sub-Assy, Water
16306	16306-0P010	Pipe Sub-Assy, Water Outlet
16306	90301-T0031	Ring, O(For Water Outlet Pipe)
16325	16325-0P030	Gasket, Water Inlet Housing, No.1
16333	92122-80618	Bolt, Stud(For Water Outlet Housing)
16341	16341-0P010	Gasket, Water Outlet
16356	16356-0P010	Joint, Water By-Pass, Rear
16361	16361-0P020	Fan
16361	16361-0P030	Fan, No.2
16363	16363-0P340	Motor, Cooling Fan
16363	16363-0P350	Motor, Cooling Fan, No.2
16400	16400-0P460	Radiator Assy
16400	16417-0H290	Cock Sub-Assy, Radiator Drain - RADIATOR DRAIN COCK
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16401	16401-31680	Cap Sub-Assy, Radiator
16470	16470-0P080	Tank Assy, Radiator Reserve
16471	16405-0P080	Cap Sub-Assy, Reserve Tank
16523	16523-0P010	Cushion, Radiator Support
16535	90480-T0007	Support, Radiator, Lower
16561	16561-0P120	Seal, Radiator To Support, No.1
16562	16562-0P090	Seal, Radiator To Support, No.2
16563	16563-0P050	Seal, Radiator To Support, No.3
16571	16571-0P330	Hose, Radiator, No.1
16571	90466-C0016	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-0P330	Hose, Radiator, No.2
16581	16581-0P020	Clamp, Hose(For Radiator Hose)
16581	16581-31010	Clamp, Hose(For Water Hose)
16711	16711-0P310	Shroud, Fan
90105	90105-C0082	New Genuine Part
90105	90105-C0084	Bolt(For Cylinder Head Cover)
90105	90105-C0100	New Genuine Part
90119	90119-C0090	New Genuine Part
90119	90119-C0096	New Genuine Part
90178	90178-C0032	Nut, Wire Adjusting, No.1
90466	90466-C0015	Clamp Or Clip(For Water By-Pass Hose No.3)
90466	90466-C0025	New Genuine Part
90480	90480-C0007	Grommet
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009905164	90099-05164	Nut
9012606028	90126-06028	Bolt, Stud(For Oil Pan)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
16031-31020	Water Inlet Sub-Assy, W/thermostat	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16261-0P010	Hose, Water By-Pass	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16261-0P060	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16264-0P010	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16264-0P060	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16267-0P060	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16279-31040	Pipe, Water By-Pass, No.3	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16281-0P030	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16283-0P010	Hose, Water By-Pass, No.6	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16288-31031	Pipe, Water By-Pass, No.4	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16296-31010	Hose, Water By-Pass, No.8	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16297-31010	Hose, Water By-Pass, No.9	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16304-0P010	Outlet Sub-Assy, Water	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16306-0P010	Pipe Sub-Assy, Water Outlet	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16325-0P030	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16341-0P010	Gasket, Water Outlet	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16356-0P010	Joint, Water By-Pass, Rear	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16361-0P020	Fan	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16361-0P030	Fan, No.2	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16363-0P340	Motor, Cooling Fan	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16363-0P350	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16400-0P460	Radiator Assy	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16401-31680	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16405-0P080	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16417-0H290	Cock Sub-Assy, Radiator Drain - RADIATOR DRAIN COCK	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16470-0P080	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16523-0P010	Cushion, Radiator Support	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16561-0P120	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16562-0P090	Seal, Radiator To Support, No.2	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16563-0P050	Seal, Radiator To Support, No.3	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16571-0P330	Hose, Radiator, No.1	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16572-0P330	Hose, Radiator, No.2	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16581-0P020	Clamp, Hose(For Radiator Hose)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16581-31010	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
16711-0P310	Shroud, Fan	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90099-05164	Nut	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90105-C0082	New Genuine Part	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90105-C0084	Bolt(For Cylinder Head Cover)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90105-C0100	New Genuine Part	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90119-C0090	New Genuine Part	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90119-C0096	New Genuine Part	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90126-06028	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90178-C0032	Nut, Wire Adjusting, No.1	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90301-T0031	Ring, O(For Water Outlet Pipe)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90466-C0013	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90466-C0015	Clamp Or Clip(For Water By-Pass Hose No.3)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90466-C0016	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90466-C0023	Clip(For Water By-Pass Hose No.1)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90466-C0025	New Genuine Part	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90480-C0007	Grommet	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
90480-T0007	Support, Radiator, Lower	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
92122-80618	Bolt, Stud(For Water Outlet Housing)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
96136-42701	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([01.2015 - ] (1501- )5GRFE)
