GRS218

Toyota CROWN-MAJESTA · 2015 · 3,353 parts · 187 categories
GRS218 ×

← Back to categories

3,353 items

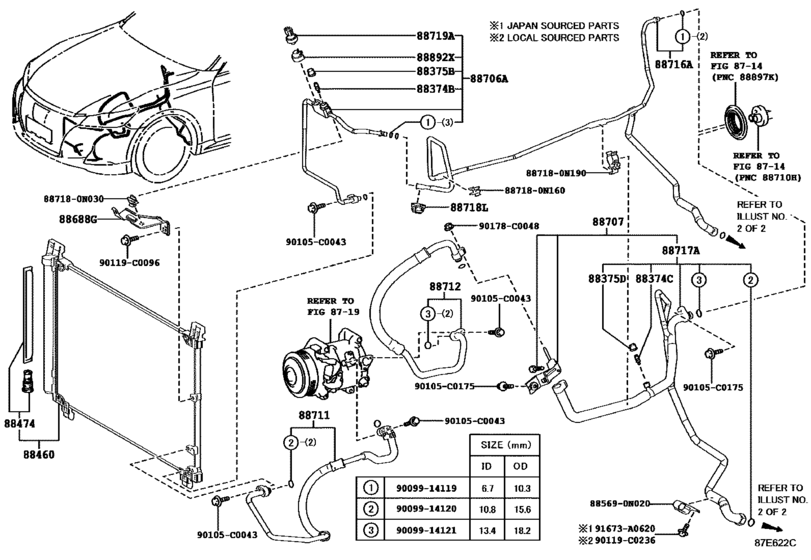

Heating & Air Conditioning - Cooler Piping ([01.2015 - ] FRONT W(REAR COOLER) (1501- )GRS218..ROYVP) 29
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-0D010 Cap, Service Valve, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88460 88460-0N040 Condenser Assy, Cooler
88474 88474-12010 Dryer, Cooler
88688 88688-0N080 Bracket, Cooler Refrigerant Pipe
88706 88706-0N090 Tube Sub-Assy, Liquid, A
88707 88707-0N080 Pipe Sub-Assy, Suction
88711 88711-0N050 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-0N050 Hose, Cooler Refrigerant Suction, No.1
88716 88716-0N040 Pipe, Cooler Refrigerant Liquid, A
88717 88717-0N020 Pipe, Cooler Refrigerant Suction, A
88718 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
88719 88719-33020 Sensor, Airconditioner Pressure
88892 88892-50120 Cover, Cooler, No.2
90105 90105-C0043 New Genuine Part
90105 90105-C0175 New Genuine Part
90119 90119-C0096 New Genuine Part
90119 90119-C0236 New Genuine Part
90178 90178-C0048 New Genuine Part
91673 91673-A0620 BOLT FLANGE
885690 88569-0N020 Clamp (for Cooler Relay)
887180 88718-0N030 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0N160 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0N190 Pipe, Cooler Refrigerant Suction, No.2
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
