GRS218

Toyota CROWN-MAJESTA · 2015 · 3,353 parts · 187 categories
GRS218 ×

← Back to categories

3,353 items

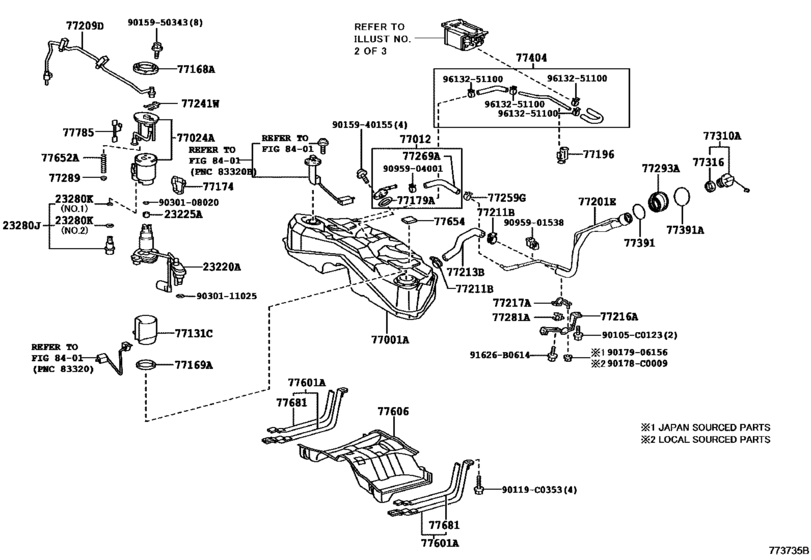

Fuel Tank & Tube ([01.2015 - ] FUEL TANK (1501- )GRS218) 54
#OEMPart name
23220 23220-0P141 Pump Assy, Fuel W/filter
23225 23225-0H020 Spacer, Fuel Pump
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
77001 77001-0N011 Tank Sub-Assy, Fuel
77001 77001-0N012 Tank Sub-Assy, Fuel
77012 77012-0N010 Tube Sub-Assy, Fuel Tank Breather
77012 77012-22030 Tube Sub-Assy, Fuel Tank Breather
77024 77024-0N040 Plate Sub-Assy, Fuel Suction
77131 77131-0N012 Sub-Tank, Fuel, No.1
77168 77168-0N010 Plate, Fuel Tank Vent Tube Set
77168 77168-52020 Plate, Fuel Tank Vent Tube Set
77169 77169-52010 Gasket, Fuel Suction Tube Set
77174 77174-0N011 Support, Fuel Suction, No.1
77179 77179-20040 Gasket, Fuel Tank Breather Tube
77196 77196-30050 Clamp, Evaporation Vent Tube, No.1
77201 77201-0N020 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-0N020 Tube Sub-Assy, Fuel Tank Main
77211 90460-46005 Clamp (For Fuel Filler Pipe)
77213 77213-0N010 Hose, Fuel Tank To Filler Pipe
77213 77213-22100 Hose, Fuel Tank To Filler Pipe
77216 77216-0N010 Support, Fuel Tank Filler Pipe, No.1
77217 77217-0N010 Support, Fuel Tank Filler Pipe, No.2
77241 77241-33011 Clip, Tube Joint
77259 90959-04001 Clip, Fuel Hose
77269 77269-0N010 Hose, Fuel Tank Breather
77269 77269-22010 Hose, Fuel Tank Breather
77281 77281-50020 Clamp, Fuel Filler Pipe
77289 77289-52090 Holder, Fuel Tank Pipe Setting
77293 77293-0N030 Shield, Fuel Tank Filler Pipe, No.3
77310 77300-02030 Cap Assy, Fuel Tank
77316 77316-0F020 Gasket, Fuel Tank Cap
77391 77391-0R030 Ring, Fuel Inlet Box
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-30020 Ring, Fuel Inlet Box
77404 77404-0N010 Hose Sub-Assy, Fuel Tank Vent
77601 77601-22120 Band Sub-Assy, Fuel Tank, No.1
77606 77606-0N010 Protector Sub-Assy, Fuel Tank, No.1
77652 77652-0N010 Cushion, Fuel Tank, No.1
77654 77652-12100 Cushion, Fuel Tank, No.1
77681 77681-22020 Seat, Fuel Tank Band, Rh
77785 77785-0N020 Harness, Fuel Pump
90105 90105-C0123 Plug(For Fuel Sub-Tank)
90119 90119-C0353 Bolt, Fuel Tank Band Set
90178 90178-C0009 New Genuine Part
91626 91626-B0614 BOLT, W/WASHER
9015940155 90159-40155 SCREW WWASHER
9015950343 90159-50343 SCREW, W-WASHER
9017906156 90179-06156 Nut (For Transmission Control Cable)
9030108020 90301-08020 Ring, O(For Fuel Pump)
9030111025 90301-11025 Ring, O(For Fuel Pump)
9095901538 90959-01538 New Genuine Part
9613251100 96132-51100 Clip (For Hose)
