Search › Model › GRS218
GRS218

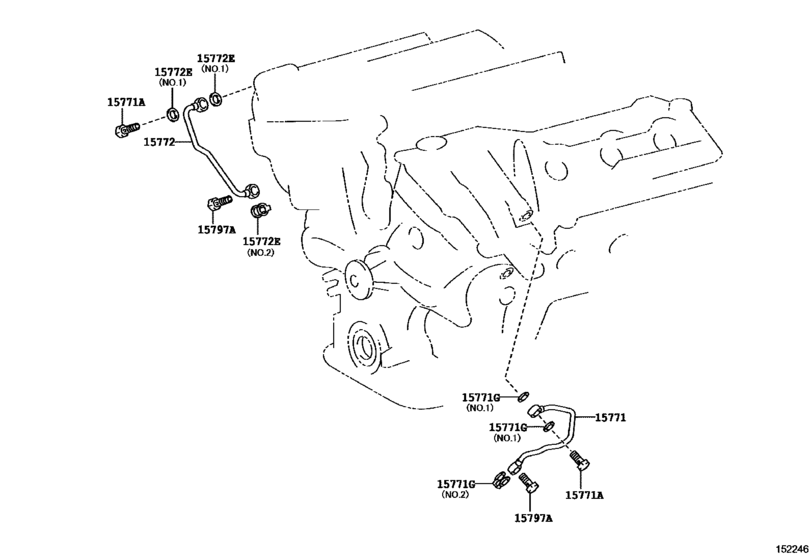

Engine Oil Cooler ([01.2015 - ] (1501- )5GRFE) 6
| # | OEM | Part name |
|---|---|---|
| 15771 | 15771-0P010 | Pipe, Oil, No.1 |
| 15771 | 90401-16043 | Union(For Oil Pipe) |
| 15771 | 90430-16012 | Gasket, W/head Taper Screw Plug |
| 15771 | 90430-16016 | Gasket |
| 15772 | 15772-0P010 | Pipe, Oil, No.2 |
| 15797 | 15797-31010 | Bolt, Oil Check Valve |
| OEM | Part name | Category |
|---|---|---|
| 15771-0P010 | Pipe, Oil, No.1 | Engine Oil Cooler ([01.2015 - ] (1501- )5GRFE) |
| 15772-0P010 | Pipe, Oil, No.2 | Engine Oil Cooler ([01.2015 - ] (1501- )5GRFE) |
| 15797-31010 | Bolt, Oil Check Valve | Engine Oil Cooler ([01.2015 - ] (1501- )5GRFE) |
| 90401-16043 | Union(For Oil Pipe) | Engine Oil Cooler ([01.2015 - ] (1501- )5GRFE) |
| 90430-16012 | Gasket, W/head Taper Screw Plug | Engine Oil Cooler ([01.2015 - ] (1501- )5GRFE) |
| 90430-16016 | Gasket | Engine Oil Cooler ([01.2015 - ] (1501- )5GRFE) |
