GRS218

Toyota CROWN-MAJESTA · 2015 · 3,353 parts · 187 categories

3,353 items

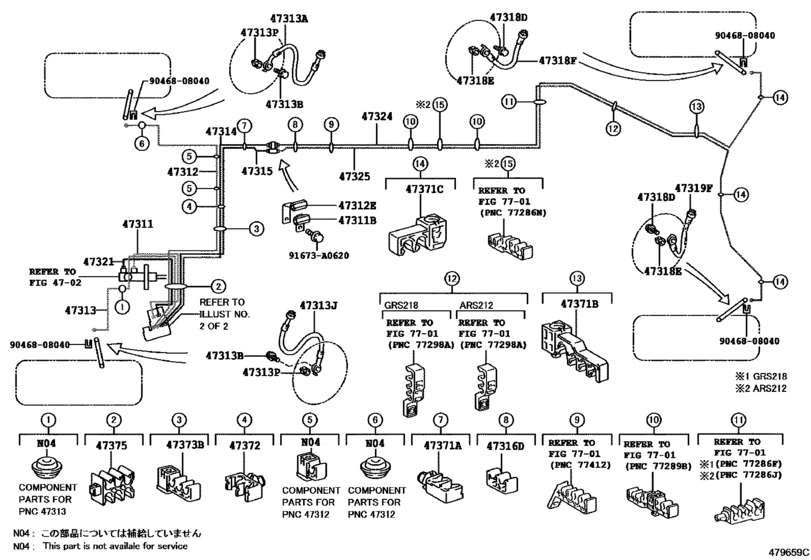

Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- )) 25

#	OEM	Part name
47311	47311-0N030	Tube, Front Brake, No.1
47311	90412-10292	Way, No.1(For Front Brake Tube)
47311	90412-C0016	Way, No.1(For Front Brake Tube)
47312	47312-0N030	Tube, Front Brake, No.2
47312	90412-10297	Way, No.1(For Front Brake Tube)
47312	90412-C0017	Way, No.2(For Front Brake Tube)
47313	47313-0N030	Tube, Front Brake, No.3
47313	90947-C2072	Hose, Flexible, No.1(For Front)
47313	90401-C0001	Bolt, Union(For Front Flexible Hose)
47313	47389-50021	Gasket(For Front Flexible Hose)
47314	47322-0N030	Tube, Front Brake, No.4
47315	47323-0N030	Tube, Front Brake, No.5
47316	90480-01621	Grommet(For Front Brake Tube)
47318	90947-C2073	Hose, Flexible(For Rear Rh)
47321	47321-0N030	Tube, Rear Brake, No.1
47324	47324-0N031	Tube, Rear Brake, No.4
47325	47325-0N031	Tube, Rear Brake, No.5
47371	90949-T1018	Clamp, Brake Tube, No.1
47371	90949-T1020	Clamp, Brake Tube, No.6
47371	90949-T1021	Clamp, Brake Tube, No.6
47372	90949-T1019	Clamp, Brake Tube, No.2
47373	90949-01D08	Clamp, Brake Tube, No.1
47375	90949-T1022	Clamp, Brake Tube, No.1
91673	91673-A0620	BOLT FLANGE
9046808040	90468-08040	CLIP

OEM	Part name	Category
47311-0N030	Tube, Front Brake, No.1	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
47312-0N030	Tube, Front Brake, No.2	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
47313-0N030	Tube, Front Brake, No.3	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
47321-0N030	Tube, Rear Brake, No.1	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
47322-0N030	Tube, Front Brake, No.4	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
47323-0N030	Tube, Front Brake, No.5	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
47324-0N031	Tube, Rear Brake, No.4	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
47325-0N031	Tube, Rear Brake, No.5	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90401-C0001	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90412-10292	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90412-10297	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90412-C0016	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90412-C0017	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90468-08040	CLIP	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90480-01621	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90947-C2072	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90947-C2073	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90949-01D08	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90949-T1018	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90949-T1019	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90949-T1020	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90949-T1021	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
90949-T1022	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
91673-A0620	BOLT FLANGE	Brake Tube & Clamp ([01.2015 - ] BRAKE TUBE (1501- ))
