Search › Model › GRS210

GRS210

Toyota CROWN-MAJESTA · 2012 · 4,720 parts · 225 categories

4,720 items

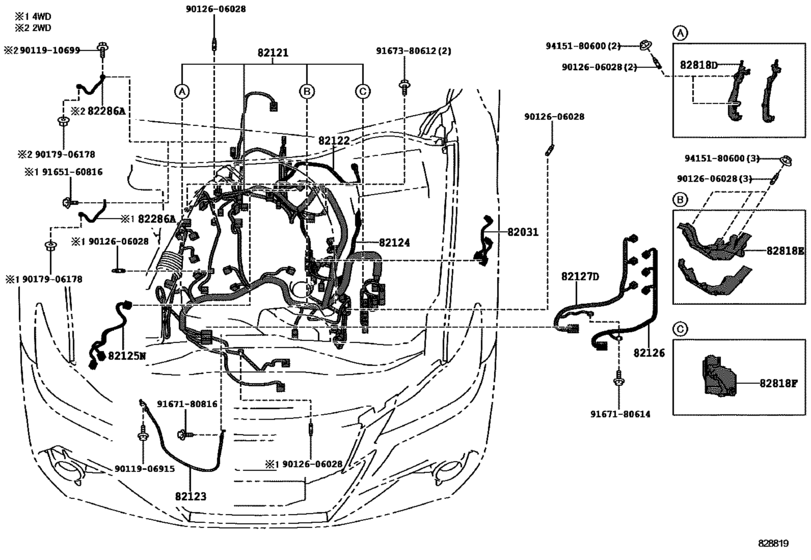

Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211) 22

#	OEM	Part name
82031	82031-22150	Wire Sub-Assy, Ignition Coil
82121	82121-30G70	Wire, Engine
82122	82122-22580	Wire, Engine, No.2
82123	82123-30490	Wire, Engine, No.3
82124	82124-30370	Wire, Engine, No.4
82125	82125-30500	Wire, Transmission
82126	82126-30040	Wire, Engine
82127	82127-30040	Wire, Differential
82286	82286-30110	Wire, Earth, No.2
82818	82817-2A730	Protector, Wiring Harness, No.6
82818	82817-30A80	Protector, Wiring Harness, No.7
82818	82817-30M90	Protector, Wiring Harness, No.8
9011906915	90119-06915	BOLT W-WASHER
9011910699	90119-10699	BOLT WWASHER
9012606028	90126-06028	Bolt, Stud(For Oil Pan)
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)
9167380612	91673-80612	BOLT FLANGE
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
82031-22150	Wire Sub-Assy, Ignition Coil	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
82121-30G70	Wire, Engine	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
82122-22580	Wire, Engine, No.2	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
82123-30490	Wire, Engine, No.3	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
82124-30370	Wire, Engine, No.4	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
82125-30500	Wire, Transmission	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
82126-30040	Wire, Engine	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
82127-30040	Wire, Differential	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
82286-30110	Wire, Earth, No.2	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
82817-2A730	Protector, Wiring Harness, No.6	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
82817-30A80	Protector, Wiring Harness, No.7	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
82817-30M90	Protector, Wiring Harness, No.8	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
90080-11396	Bolt	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
90119-10699	BOLT WWASHER	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
90126-06028	Bolt, Stud(For Oil Pan)	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
90179-06178	Nut (For Rear Wiper Arm Setting)	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
91651-60816	BOLT	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
91673-80612	BOLT FLANGE	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Wiring & Clamp ([12.2012 - ] ｴﾝｼﾞﾝ (1212- )GRS210,211)
