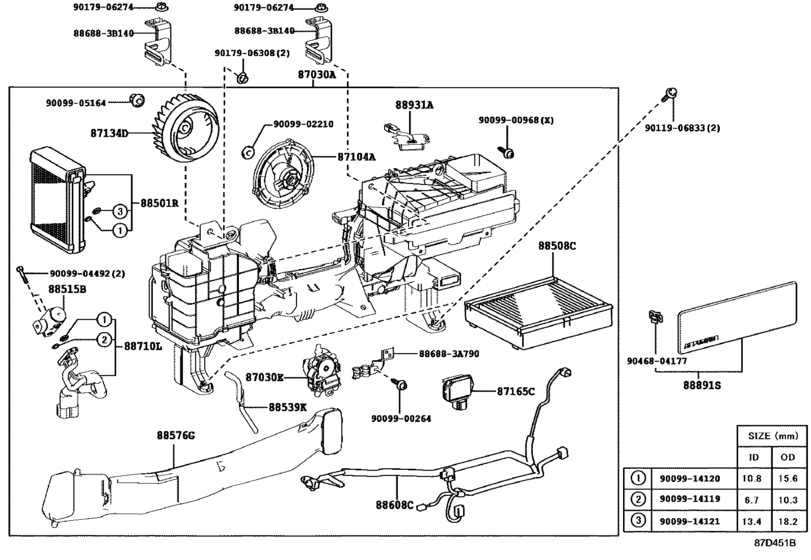

| 87030-30110 |
Unit Assy, Cooling, Rear |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 87104-30520 |
Motor Sub-Assy, Blower |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 87106-30490 |
Damper Servo Sub-Assy, Rear Cooling Unit, No.1 |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 87134-30090 |
Fan, Blower(For Cooling Unit) |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 87165-45030 |
Control, Blower Motor |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 88501-3A070 |
Evaporator Sub-Assy (Rear) |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 88508-30110 |
Filter Sub-Assy, Air |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 88515-30740 |
Valve, Rear Cooling Unit Expansion |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 88539-30880 |
Hose, Cooler Unit Drain, No.2 |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 88576-3A480 |
Duct, Cooler Air, No.3 |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 88608-3A280 |
Harness Sub-Assy, Wiring Air Indicator, No.2 |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 88688-3A790 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 88688-3B140 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 88710-3A250 |
Tube Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 88891-30690-C0 |
Cover, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 88931-30090 |
Sensor, Smoke |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90099-00264 |
SCREW |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90099-00968 |
Screw(For Air Conditioner Unit) |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90099-02210 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90099-04492 |
BOLT |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90099-05164 |
Nut |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90119-06833 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90179-06274 |
Nut |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90179-06308 |
NUT |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
| 90468-04177 |
Clip(For Instrument Panel Under Cover) |
Heating & Air Conditioning - Cooler Unit ([12.2012 - ] ﾘﾔ (1212- )GRS210,211..ROY,ROYG) |
