Search › Model › GRS210

GRS210

Toyota CROWN-MAJESTA · 2012 · 4,720 parts · 225 categories

← Back to categories

4,720 items

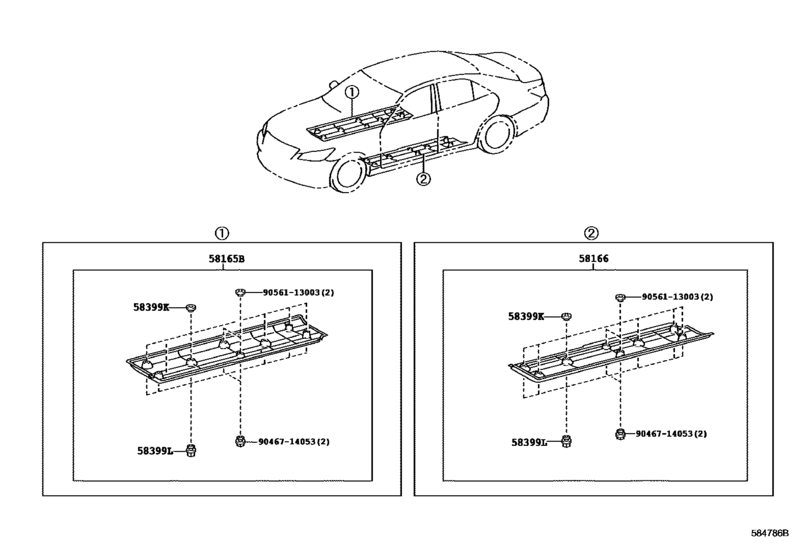

Floor Pan & Lower Back Panel ([12.2012 - ] ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ (1212- )AWS210,211,GRS21# ; (1509- )ARS210) 6

#	OEM	Part name
58165	58165-30061	Cover, Front Floor, Rh
58166	58166-30031	Cover, Front Floor, Lh
58399	90561-11011	Clip, No.1(For Floor Under Cover)
58399	90480-10024	Clip, No.2(For Floor Under Cover)
9046714053	90467-14053	Clip, No.1(For Floor Under Cover)
9056113003	90561-13003	Clip, No.4(For Floor Under Cover)

OEM	Part name	Category
58165-30061	Cover, Front Floor, Rh	Floor Pan & Lower Back Panel ([12.2012 - ] ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ (1212- )AWS210,211,GRS21# ; (1509- )ARS210)
58166-30031	Cover, Front Floor, Lh	Floor Pan & Lower Back Panel ([12.2012 - ] ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ (1212- )AWS210,211,GRS21# ; (1509- )ARS210)
90467-14053	Clip, No.1(For Floor Under Cover)	Floor Pan & Lower Back Panel ([12.2012 - ] ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ (1212- )AWS210,211,GRS21# ; (1509- )ARS210)
90480-10024	Clip, No.2(For Floor Under Cover)	Floor Pan & Lower Back Panel ([12.2012 - ] ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ (1212- )AWS210,211,GRS21# ; (1509- )ARS210)
90561-11011	Clip, No.1(For Floor Under Cover)	Floor Pan & Lower Back Panel ([12.2012 - ] ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ (1212- )AWS210,211,GRS21# ; (1509- )ARS210)
90561-13003	Clip, No.4(For Floor Under Cover)	Floor Pan & Lower Back Panel ([12.2012 - ] ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ (1212- )AWS210,211,GRS21# ; (1509- )ARS210)
