Search › Model › GRS210

GRS210

Toyota CROWN-MAJESTA · 2012 · 4,720 parts · 225 categories

4,720 items

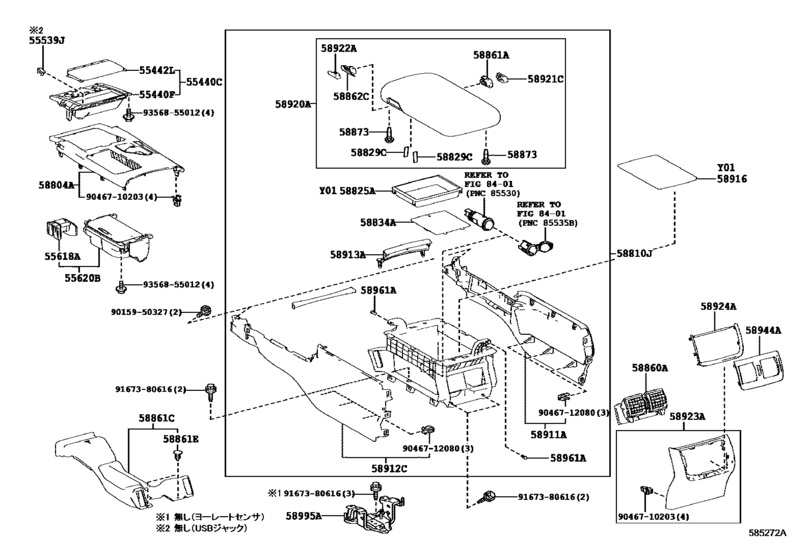

Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#) 63

#	OEM	Part name
55440	55440-30120-E0	Box Assy, Instrument Panel
55440	55440-30120-E3	Box Assy, Instrument Panel
55440	55441-30290	Box Assy, Instrument Panel
55442	55442-30390-E0	Door, Instrument Panel
55442	55442-30390-E3	Door, Instrument Panel
55539	55539-52060-C0	Cover, Spare Switch Hole
55618	55618-30040	Holder, Console Box Cup
55620	55620-30360-E0	Holder, Instrument Panel Cup
55620	55620-30360-E3	Holder, Instrument Panel Cup
58804	58804-30F00-E0	Panel Sub-Assy, Console, Upper
58804	58804-30F00-E3	Panel Sub-Assy, Console, Upper
58804	58804-30F01-E3	Panel Sub-Assy, Console, Upper
58810	58810-30D30-22	Box Assy, Console
58810	58810-30D30-A1	Box Assy, Console
58810	58810-30D30-E0	Box Assy, Console
58825	58825-30160	Pocket, Console Box
58829	58829-30060-A1	Stopper, Console Box Pocket
58829	58829-30060-C0	Stopper, Console Box Pocket
58829	58829-30060-E1	Stopper, Console Box Pocket
58834	58834-22040	Cover, Console, Lower
58860	58860-22020-C0	Register Assy, Console Box
58860	58860-22020-C1	Register Assy, Console Box
58861	58865-30130-A0	Support, Console Box, No.1
58861	58865-30130-C0	Support, Console Box, No.1
58861	58865-30130-E0	Support, Console Box, No.1
58861	58861-30190	Duct, Console Box, No.1
58861	90467-05161-C0	Clip
58862	58866-30070-A0	Support, Console Box, No.2
58862	58866-30070-C0	Support, Console Box, No.2
58862	58866-30070-E0	Support, Console Box, No.2
58873	58873-30050	Cushion, Console Box, No.3
58911	58911-30250-A0	Panel, Box Side, No.1
58911	58911-30250-C0	Panel, Box Side, No.1
58911	58911-30250-E0	Panel, Box Side, No.1
58912	58912-30290-A0	Panel, Box Side, No.2
58912	58912-30290-C0	Panel, Box Side, No.2
58912	58912-30290-E0	Panel, Box Side, No.2
58913	58913-30070-A0	Panel, Box, No.3
58913	58913-30070-C0	Panel, Box, No.3
58913	58913-30070-E0	Panel, Box, No.3
58916	58916-30190	Mat, Box Bottom
58920	58920-30350-A2	Armrest Assy, Rear Console
58920	58920-30350-C6	Armrest Assy, Rear Console
58920	58920-30350-E2	Armrest Assy, Rear Console
58921	58921-30090-A0	Plate, Box, Upper No.1
58921	58921-30090-C0	Plate, Box, Upper No.1
58921	58921-30090-E0	Plate, Box, Upper No.1
58922	58922-30070-A0	Plate, Box, Upper No.2
58922	58922-30070-C0	Plate, Box, Upper No.2
58922	58922-30070-E0	Plate, Box, Upper No.2
58923	58923-30200-A0	Panel, Console Rear End
58923	58923-30200-C0	Panel, Console Rear End
58923	58923-30200-E0	Panel, Console Rear End
58924	58924-30190	Panel, Console Rear End, No.2
58944	58944-30120-E0	Cover, Console, Rear
58944	58944-30120-E2	Cover, Console, Rear
58961	58961-30110	Hinge, Console Compartment Door Male
58995	58995-30220	Bracket, Console Box Mounting, No.1
9015950327	90159-50327	SCREW WWASHER
9046710203	90467-10203	Direct
9046712080	90467-12080	Clip(For Panel, Instrument Cluster Finish)
9167380616	91673-80616	Bolt, W/washer
9356855012	93568-55012	SCREW

OEM	Part name	Category
55440-30120-E0	Box Assy, Instrument Panel	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
55440-30120-E3	Box Assy, Instrument Panel	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
55441-30290	Box Assy, Instrument Panel	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
55442-30390-E0	Door, Instrument Panel	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
55442-30390-E3	Door, Instrument Panel	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
55539-52060-C0	Cover, Spare Switch Hole	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
55618-30040	Holder, Console Box Cup	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
55620-30360-E0	Holder, Instrument Panel Cup	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
55620-30360-E3	Holder, Instrument Panel Cup	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58804-30F00-E0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58804-30F00-E3	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58804-30F01-E3	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58810-30D30-22	Box Assy, Console	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58810-30D30-A1	Box Assy, Console	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58810-30D30-E0	Box Assy, Console	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58825-30160	Pocket, Console Box	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58829-30060-A1	Stopper, Console Box Pocket	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58829-30060-C0	Stopper, Console Box Pocket	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58829-30060-E1	Stopper, Console Box Pocket	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58834-22040	Cover, Console, Lower	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58860-22020-C0	Register Assy, Console Box	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58860-22020-C1	Register Assy, Console Box	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58861-30190	Duct, Console Box, No.1	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58865-30130-A0	Support, Console Box, No.1	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58865-30130-C0	Support, Console Box, No.1	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58865-30130-E0	Support, Console Box, No.1	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58866-30070-A0	Support, Console Box, No.2	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58866-30070-C0	Support, Console Box, No.2	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58866-30070-E0	Support, Console Box, No.2	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58873-30050	Cushion, Console Box, No.3	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58911-30250-A0	Panel, Box Side, No.1	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58911-30250-C0	Panel, Box Side, No.1	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58911-30250-E0	Panel, Box Side, No.1	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58912-30290-A0	Panel, Box Side, No.2	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58912-30290-C0	Panel, Box Side, No.2	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58912-30290-E0	Panel, Box Side, No.2	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58913-30070-A0	Panel, Box, No.3	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58913-30070-C0	Panel, Box, No.3	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58913-30070-E0	Panel, Box, No.3	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58916-30190	Mat, Box Bottom	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58920-30350-A2	Armrest Assy, Rear Console	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58920-30350-C6	Armrest Assy, Rear Console	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58920-30350-E2	Armrest Assy, Rear Console	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58921-30090-A0	Plate, Box, Upper No.1	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58921-30090-C0	Plate, Box, Upper No.1	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58921-30090-E0	Plate, Box, Upper No.1	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58922-30070-A0	Plate, Box, Upper No.2	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58922-30070-C0	Plate, Box, Upper No.2	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58922-30070-E0	Plate, Box, Upper No.2	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58923-30200-A0	Panel, Console Rear End	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58923-30200-C0	Panel, Console Rear End	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58923-30200-E0	Panel, Console Rear End	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58924-30190	Panel, Console Rear End, No.2	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58944-30120-E0	Cover, Console, Rear	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58944-30120-E2	Cover, Console, Rear	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58961-30110	Hinge, Console Compartment Door Male	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
58995-30220	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
90159-50327	SCREW WWASHER	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
90467-05161-C0	Clip	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
90467-10203	Direct	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
90467-12080	Clip(For Panel, Instrument Cluster Finish)	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
91673-80616	Bolt, W/washer	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)
93568-55012	SCREW	Console Box & Bracket ([03.2014 - ] (1403- )ARS210,AWS210,211,GRS21#)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 225
Collected: 2026-08-02
