GRS210

Toyota CROWN-MAJESTA · 2012 · 4,720 parts · 225 categories
GRS210 ×

← Back to categories

4,720 items

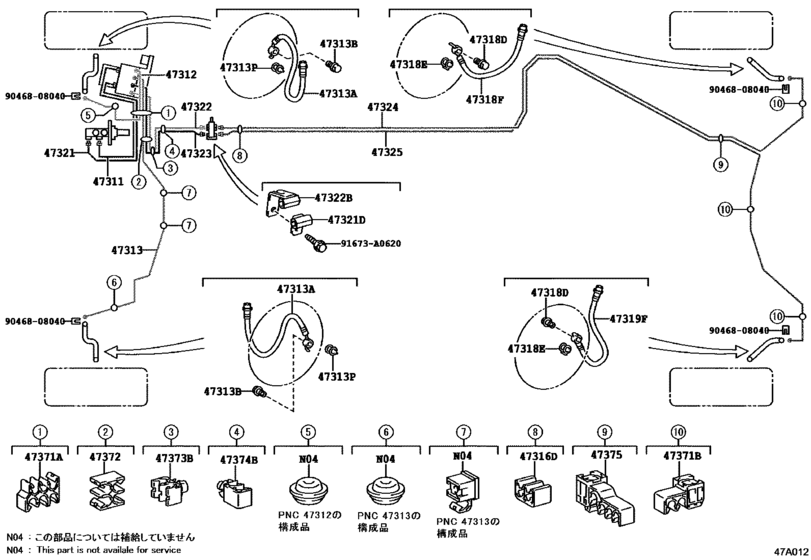

Brake Tube & Clamp ([09.2015 - ] (1509- )ARS210,GRS210,214) 30
#OEMPart name
47311 47311-30720 Tube, Front Brake, No.1
47311 47311-30740 Tube, Front Brake, No.1
47312 47312-30760 Tube, Front Brake, No.2
47312 47312-30870 Tube, Front Brake, No.2
47313 47313-30760 Tube, Front Brake, No.3
47313 47313-30A40 Tube, Front Brake, No.3
47313 90947-02G87 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47316 90480-01621 Grommet(For Front Brake Tube)
47318 90947-02G89 Hose, Flexible(For Rear Rh)
47321 47321-30430 Tube, Rear Brake, No.1
47321 47321-30440 Tube, Rear Brake, No.1
47321 90412-10292 Way, No.1(For Front Brake Tube)
47322 47322-30490 Tube, Rear Brake, No.2
47322 47322-30580 Tube, Rear Brake, No.2
47322 90412-10297 Way, No.1(For Front Brake Tube)
47323 47323-30430 Tube, Rear Brake, No.3
47323 47323-30520 Tube, Rear Brake, No.3
47324 47324-30340 Tube, Rear Brake, No.4
47325 47325-30120 Tube, Rear Brake, No.5
47371 90464-00880 Clamp, Brake Tube, No.1
47371 90949-01D52 Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.4
47371 90949-01D11 Clamp, Brake Tube, No.6
47372 90464-00876 Clamp, Brake Tube, No.1
47373 90949-01D12 Clamp(For Clutch Master Cylinder Tube)
47374 90949-01D13 Clamp, Brake Tube, No.9
47375 90949-01D09 Clamp, Brake Tube, No.6
91673 91673-A0620 BOLT FLANGE
9046808040 90468-08040 CLIP
Source
Public OEM parts-catalog data
Variants
2 / 6
Category
225
Collected
2026-08-02
