| 47201-30792 |
Cylinder Sub-Assy, Brake Master |

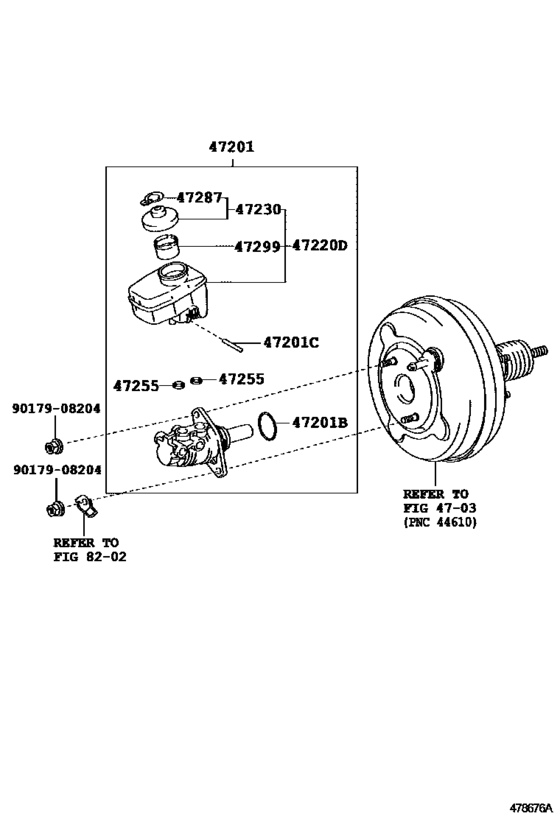

Brake Master Cylinder ([12.2012 - ] (1212- )ARS210,GRS21#) |
| 47201-30860 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([12.2012 - ] (1212- )ARS210,GRS21#) |
| 47220-30210 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([12.2012 - ] (1212- )ARS210,GRS21#) |
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([12.2012 - ] (1212- )ARS210,GRS21#) |
| 47287-20010 |
Label, Brake Fluid Information |
Brake Master Cylinder ([12.2012 - ] (1212- )ARS210,GRS21#) |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir |
Brake Master Cylinder ([12.2012 - ] (1212- )ARS210,GRS21#) |
| 90015-AH002 |
Ring, O(For Brake Master Cylinder) |
Brake Master Cylinder ([12.2012 - ] (1212- )ARS210,GRS21#) |
| 90029-15803 |
Ring Pin, Brake Master Cylinder |
Brake Master Cylinder ([12.2012 - ] (1212- )ARS210,GRS21#) |
| 90029-48001 |
Grommet, Master Cylinder Reservoir |
Brake Master Cylinder ([12.2012 - ] (1212- )ARS210,GRS21#) |
| 90080-18070 |
NUT, WWASHER |
Brake Master Cylinder ([12.2012 - ] (1212- )ARS210,GRS21#) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([12.2012 - ] (1212- )ARS210,GRS21#) |
