Search › Model › GRS203

GRS203

Toyota CROWN-MAJESTA · 2008 · 5,151 parts · 209 categories

5,151 items

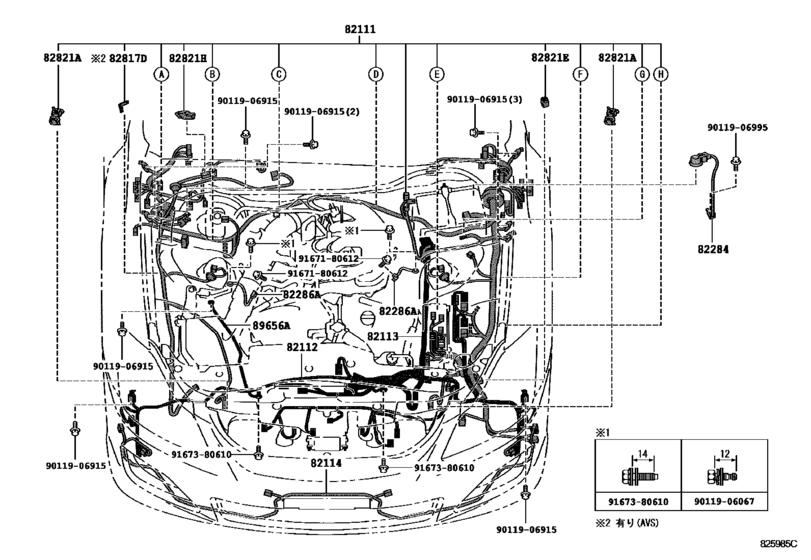

Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#) 25

#	OEM	Part name
82111	82111-30T70	Wire, Engine Room Main
82111	82111-30T71	Wire, Engine Room Main
82111	82111-30T72	Wire, Engine Room Main
82111	82111-30T80	Wire, Engine Room Main
82111	82111-30T81	Wire, Engine Room Main
82111	82111-30T82	Wire, Engine Room Main
82112	82112-30A40	Wire, Engine Room, No.2
82112	82112-30A50	Wire, Engine Room, No.2
82113	82113-30460	Wire, Engine Room, No.3
82114	82114-30090	Wire, Engine Room, No.4
82114	82114-30100	Wire, Engine Room, No.4
82114	82114-30110	Wire, Engine Room, No.4
82114	82114-30170	Wire, Engine Room, No.4
82284	82284-30010	Wire, Earth
82286	82286-30010	Wire, Earth, No.2
82817	82817-12860	Protector, Wiring Harness, No.1
82821	82821-30650	Retainer, Headlamp Harness
82821	82821-35040	Retainer, Headlamp Harness
82821	82821-22120	Cover, Connector
89656	89656-30020	Wire, Power Steering Earth
9011906067	90119-06067	BOLT
9011906915	90119-06915	BOLT W-WASHER
9011906995	90119-06995	BOLT WWASHER
9167180612	91671-80612	Bolt
9167380610	91673-80610	New Genuine Part

OEM	Part name	Category
82111-30T70	Wire, Engine Room Main	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82111-30T71	Wire, Engine Room Main	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82111-30T72	Wire, Engine Room Main	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82111-30T80	Wire, Engine Room Main	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82111-30T81	Wire, Engine Room Main	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82111-30T82	Wire, Engine Room Main	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82112-30A40	Wire, Engine Room, No.2	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82112-30A50	Wire, Engine Room, No.2	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82113-30460	Wire, Engine Room, No.3	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82114-30090	Wire, Engine Room, No.4	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82114-30100	Wire, Engine Room, No.4	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82114-30110	Wire, Engine Room, No.4	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82114-30170	Wire, Engine Room, No.4	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82284-30010	Wire, Earth	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82286-30010	Wire, Earth, No.2	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82817-12860	Protector, Wiring Harness, No.1	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82821-22120	Cover, Connector	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82821-30650	Retainer, Headlamp Harness	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
82821-35040	Retainer, Headlamp Harness	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
89656-30020	Wire, Power Steering Earth	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
90119-06067	BOLT	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
90119-06995	BOLT WWASHER	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
91671-80612	Bolt	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
91673-80610	New Genuine Part	Wiring & Clamp ([02.2008 - ] ｴﾝｼﾞﾝﾙｰﾑ 1/2 (0802- )GRS20#)
