GRS203

Toyota CROWN-MAJESTA · 2008 · 5,151 parts · 209 categories

5,151 items

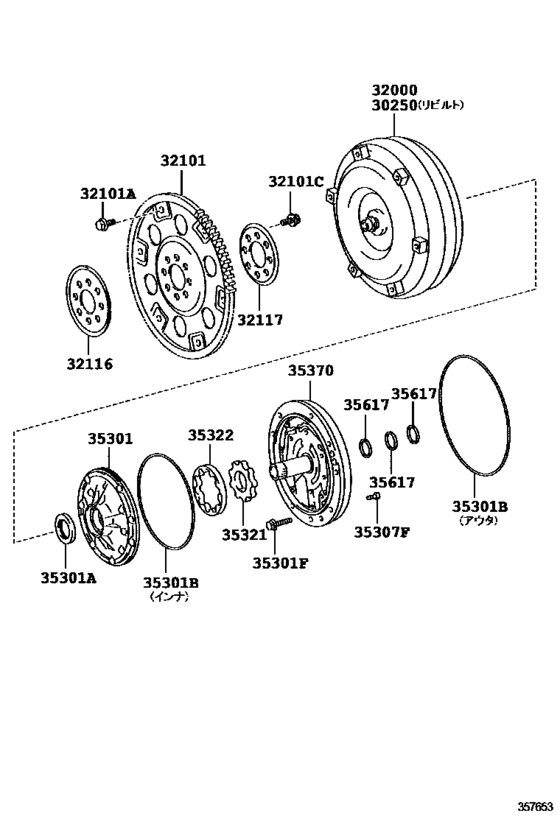

Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204) 32

#	OEM	Part name
30250	30250-30390	Converter Assy, Torque, Rebuilt
32000	32000-30390	Converter Assy, Torque
32101	32101-30080	Gear Sub-Assy, Drive Plate & Ring
32101	32101-30081	Gear Sub-Assy, Drive Plate & Ring
32101	90105-09005	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-09006	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10048	Bolt, Flywheel Setting
32101	90105-A0022	Bolt, Hexagon(For Drive Plate Setting)
32116	32116-32020	Spacer, Drive Plate, Front
32117	32117-30030	Spacer, Drive Plate, Rear
35301	35301-60030	Body Sub-Assy, Front Oil Pump
35301	90311-38083	Seal, Oil (For Front Oil Pump)
35301	90301-99139	Ring, O (For Front Oil Pump Body)
35301	90301-99148	Ring, O (For Front Oil Pump Body)
35301	90105-08451	Bolt (For Front Oil Pump Setting)
35307	90148-60079	Bolt (For Stator Shaft)
35321	35321-50010	Gear, Front Oil Pump Drive
35321	35321-50020	Gear, Front Oil Pump Drive
35321	35321-50030	Gear, Front Oil Pump Drive
35321	35321-50040	Gear, Front Oil Pump Drive
35321	35321-50050	Gear, Front Oil Pump Drive
35321	35321-50060	Gear, Front Oil Pump Drive
35321	35321-50070	Gear, Front Oil Pump Drive
35322	35322-50010	Gear, Front Oil Pump Driven
35322	35322-50020	Gear, Front Oil Pump Driven
35322	35322-50030	Gear, Front Oil Pump Driven
35322	35322-50040	Gear, Front Oil Pump Driven
35322	35322-50050	Gear, Front Oil Pump Driven
35322	35322-50060	Gear, Front Oil Pump Driven
35322	35322-50070	Gear, Front Oil Pump Driven
35370	35370-50030	Shaft Assy, Stator
35617	35617-50030	Ring, Clutch Drum Oil Seal

OEM	Part name	Category
30250-30390	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
32000-30390	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
32101-30080	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
32101-30081	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
32116-32020	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
32117-30030	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35301-60030	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35321-50010	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35321-50020	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35321-50030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35321-50040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35321-50050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35321-50060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35321-50070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35322-50010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35322-50020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35322-50030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35322-50040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35322-50050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35322-50060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35322-50070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35370-50030	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
35617-50030	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
90105-08451	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
90105-09005	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
90105-09006	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
90105-10048	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
90105-A0022	Bolt, Hexagon(For Drive Plate Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
90148-60079	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
90301-99139	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
90301-99148	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
90311-38083	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([02.2008 - ] A760H,A760E (0802- )GRS201,203,204)
