Search › Model › GRS203

GRS203

Toyota CROWN-MAJESTA · 2008 · 5,151 parts · 209 categories

5,151 items

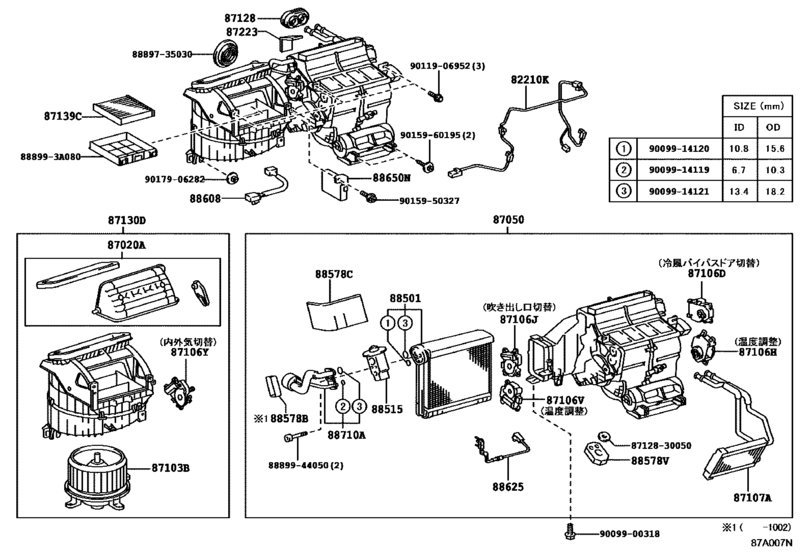

Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- )) 53

#	OEM	Part name
82210	82212-30013	Harness Assy, Air Conditioner
82210	82212-30014	Harness Assy, Air Conditioner
87020	87020-30010	Damper Assy, Heater Air
87050	87050-30210	Radiator Assy, Air Conditioner
87050	87050-30212	Radiator Assy, Air Conditioner
87050	87050-30211	Radiator Assy, Air Conditioner
87103	87103-30400	Motor Sub-Assy, Cooling Unit, W/fan
87103	87103-30401	Motor Sub-Assy, Cooling Unit, W/fan
87106	87106-30440	Servo Sub-Assy, Damper, No.1
87106	87106-30430	Servo Sub-Assy, Damper(For Airmix)
87106	87106-30450	Servo Sub-Assy, Damper(For Airmix)
87106	87106-30470	Servo Sub-Assy, Damper
87107	87107-30560	Unit Sub-Assy, Heater Radiator
87128	87128-35020	Grommet, Heater
87130	87130-30790	Blower Assy
87130	87130-30791	Damper Assy, Heater Air
87139	87139-30040	Filter, Clean Air
87139	87139-YZZ45	Filter, Clean Air
87139	87139-50060	Filter, Clean Air (Charcoal)
87139	87139-50100	Clean Air Filter (Charcoal type)
87223	87223-30030	Pad, Air Duct
88501	88501-3A160	Evaporator Sub-Assy, Cooler, No.1
88501	88501-3A161	Evaporator Sub-Assy, Cooler, No.1
88515	88515-28180	Valve, Cooler Expansion
88515	88515-30780	Valve, Cooler Expansion
88578	88578-30830	Packing, Cooling Unit, No.1
88578	88578-30840	Packing, Cooling Unit, No.2
88578	88578-30870	Packing, Cooling Unit, No.2
88625	88620-30020	Thermistor, Cooler, No.1
88650	88650-30J20	Amplifier Assy, Air Conditioner
88650	88650-30J21	Amplifier Assy, Air Conditioner
88650	88650-30J30	Amplifier Assy, Air Conditioner
88650	88650-30J31	Amplifier Assy, Air Conditioner
88650	88650-30J40	Amplifier Assy, Air Conditioner
88650	88650-30J41	Amplifier Assy, Air Conditioner
88650	88650-30N70	Amplifier Assy, Air Conditioner
88650	88650-30N80	Amplifier Assy, Air Conditioner
88650	88650-30N90	Amplifier Assy, Air Conditioner
88710	88710-3A260	Tube Assy, Air Conditioner
88710	88710-3A420	Tube Assy, Air Conditioner
888993	88899-3A080	Parts, Cooling Unit
8712830050	87128-30050	Grommet, Heater
8889735030	88897-35030	Grommet, (For Cooler Pipe)
8889944050	88899-44050	Bolt, W/Washer
9009900318	90099-00318	New Genuine Part
9009914119	90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119	90099-14119-TH	O RING
9009914120	90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)
9009914121	90099-14121	O-Ring, Cooler Evaporator No.1(Suction)
9011906952	90119-06952	New Genuine Part
9015950327	90159-50327	SCREW WWASHER
9015960195	90159-60195	New Genuine Part
9017906282	90179-06282	New Genuine Part

OEM	Part name	Category
82212-30013	Harness Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
82212-30014	Harness Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87020-30010	Damper Assy, Heater Air	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87050-30210	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87050-30211	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87050-30212	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87103-30400	Motor Sub-Assy, Cooling Unit, W/fan	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87103-30401	Motor Sub-Assy, Cooling Unit, W/fan	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87106-30430	Servo Sub-Assy, Damper(For Airmix)	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87106-30440	Servo Sub-Assy, Damper, No.1	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87106-30450	Servo Sub-Assy, Damper(For Airmix)	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87106-30470	Servo Sub-Assy, Damper	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87107-30560	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87128-30050	Grommet, Heater	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87128-35020	Grommet, Heater	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87130-30790	Blower Assy	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87130-30791	Damper Assy, Heater Air	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87139-30040	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87139-50060	Filter, Clean Air (Charcoal)	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87139-50100	Clean Air Filter (Charcoal type)	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87139-YZZ45	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
87223-30030	Pad, Air Duct	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88501-3A160	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88501-3A161	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88515-28180	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88515-30780	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88578-30830	Packing, Cooling Unit, No.1	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88578-30840	Packing, Cooling Unit, No.2	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88578-30870	Packing, Cooling Unit, No.2	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88620-30020	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88650-30J20	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88650-30J21	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88650-30J30	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88650-30J31	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88650-30J40	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88650-30J41	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88650-30N70	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88650-30N80	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88650-30N90	Amplifier Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88710-3A260	Tube Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88710-3A420	Tube Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88897-35030	Grommet, (For Cooler Pipe)	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88899-3A080	Parts, Cooling Unit	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
88899-44050	Bolt, W/Washer	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
90099-00318	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
90099-14119-TH	O RING	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
90099-14121	O-Ring, Cooler Evaporator No.1(Suction)	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
90119-06952	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
90159-50327	SCREW WWASHER	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
90159-60195	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
90179-06282	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([02.2008 - ] ﾌﾛﾝﾄ (0802- ))
