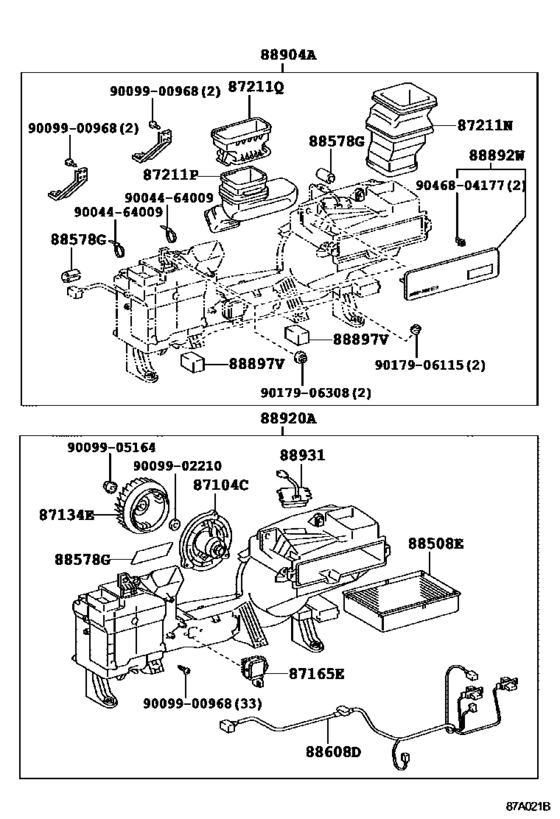

| 87104-30520 |
Motor Sub-Assy, Blower |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 87134-30090 |
Fan, Blower(For Cooling Unit) |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 87165-45030 |
Control, Blower Motor |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 87211-30520 |
Duct, Air Purifier Air, No.1 |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 87211-30550 |
Duct, Air Purifier Air, No.2 |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 87211-30560 |
Duct, Air Purifier Air, No.3 |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 88508-30110 |
Filter Sub-Assy, Air |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 88578-30370 |
Packing, Air Purifier, No.1 |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 88608-3A270 |
Harness Sub-Assy, Wiring Air Indicater, No.2 |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 88891-30690-C0 |
Cover, Cooler, No.1 |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 88897-30780 |
Cushion, Air Purifier |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 88904-30440 |
Accessory Sub-Assy, Air Purifire |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 88920-30180 |
Purifier Assy, Air |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 88931-30090 |
Sensor, Smoke |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 90044-64009 |
CLAMP |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 90099-00968 |
Screw(For Air Conditioner Unit) |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 90099-02210 |
New Genuine Part |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 90099-05164 |
Nut |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 90179-06115 |
Nut (For Rear Wiper Arm Setting) |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 90179-06308 |
NUT |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
| 90468-04177 |
Clip(For Instrument Panel Under Cover) |
Air Purifier Or Ion Generator ([02.2010 - ] ｴｱﾋﾟｭﾘﾌｧｲﾔ (0802- )GRS200,201 ; (1002- )GRS202,203,20 4..ATH,ROY) |
