GRS202

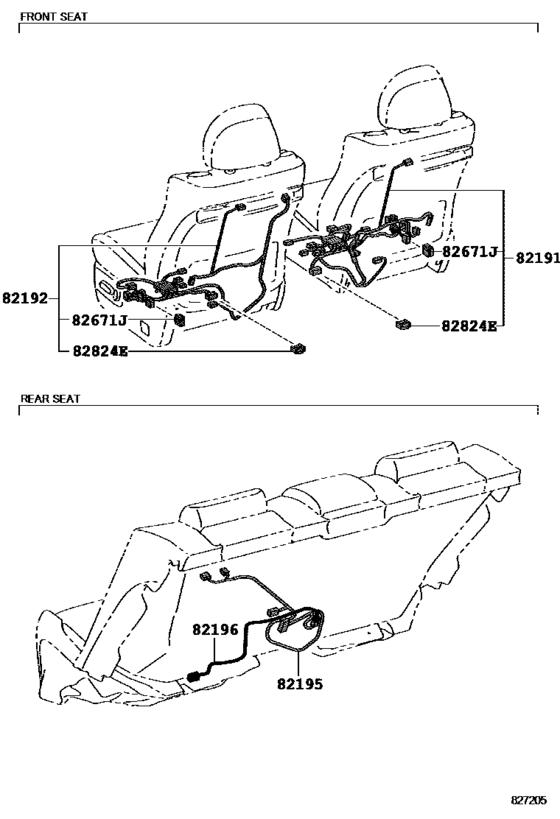

Wiring & Clamp ([09.2010 - ] SEAT (1009- )) 6
| # | OEM | Part name |
|---|---|---|
| 82191 | 82191-30380 | Wire, Front Seat, Rh |
| 82192 | 82192-30270 | Wire, Front Seat, Lh |
| 82195 | 82195-30060 | Wire,rear Seat,rh No.2 |
| 82196 | 82196-30080 | Wire,rear Seat,lh No.2 |
| 82671 | 82671-30340 | Block, Junction |
| 82824 | 82824-22080 | Connector, Wiring Harness |
| OEM | Part name | Category |
|---|---|---|
| 82191-30380 | Wire, Front Seat, Rh | Wiring & Clamp ([09.2010 - ] SEAT (1009- )) |
| 82192-30270 | Wire, Front Seat, Lh | Wiring & Clamp ([09.2010 - ] SEAT (1009- )) |
| 82195-30060 | Wire,rear Seat,rh No.2 | Wiring & Clamp ([09.2010 - ] SEAT (1009- )) |
| 82196-30080 | Wire,rear Seat,lh No.2 | Wiring & Clamp ([09.2010 - ] SEAT (1009- )) |
| 82671-30340 | Block, Junction | Wiring & Clamp ([09.2010 - ] SEAT (1009- )) |
| 82824-22080 | Connector, Wiring Harness | Wiring & Clamp ([09.2010 - ] SEAT (1009- )) |
