Search › Model › GRS202
GRS202

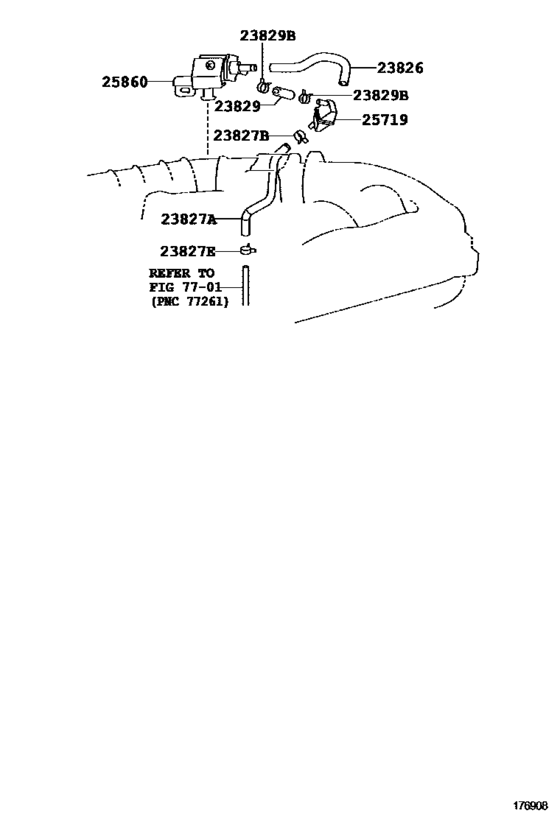

Vacuum Piping ([09.2010 - ] (1009- )) 7
| # | OEM | Part name |
|---|---|---|
| 23826 | 23826-31050 | Hose, Fuel Vapor Feed, No.1 |
| 23827 | 23827-31060 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 23827 | 96132-41500 | Clip(For Ventilation Tube) |
| 23829 | 23829-31010 | Hose, Fuel Vapor Feed, No.3 |
| 25719 | 25719-31010 | Pipe, Fuel Vapor Feed |
| 25860 | 25860-31040 | Valve Assy, Vacuum Switching, No.1 |
| OEM | Part name | Category |
|---|---|---|
| 23826-31050 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([09.2010 - ] (1009- )) |
| 23827-31060 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([09.2010 - ] (1009- )) |
| 23829-31010 | Hose, Fuel Vapor Feed, No.3 | Vacuum Piping ([09.2010 - ] (1009- )) |
| 25719-31010 | Pipe, Fuel Vapor Feed | Vacuum Piping ([09.2010 - ] (1009- )) |
| 25860-31040 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([09.2010 - ] (1009- )) |
| 96132-41500 | Clip(For Ventilation Tube) | Vacuum Piping ([09.2010 - ] (1009- )) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([09.2010 - ] (1009- )) |
