Search › Model › GRS202
GRS202

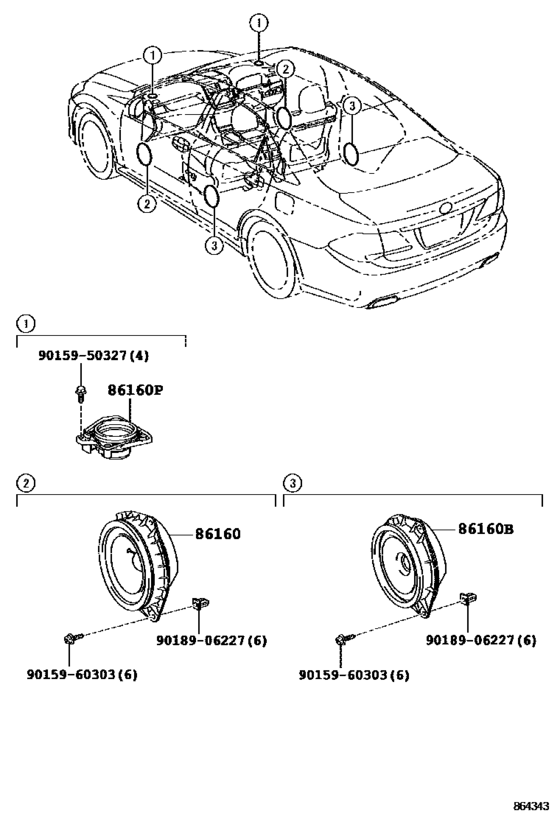

Speaker ([09.2010 - ] (1009- )) 8
| # | OEM | Part name |
|---|---|---|
| 86160 | 86160-30A20 | Speaker Assy, Front No.1 |
| 86160 | 86160-22A10 | Speaker Assy, Front No.1 |
| 86160 | 86160-52300 | Speaker Assy, Front No.1 |
| 86160 | 86160-30B20 | Speaker Assy, Front No.2 |
| 86160 | 86160-30B30 | Speaker Assy, Front No.2 |
| 9015950327 | 90159-50327 | SCREW WWASHER |
| 9015960303 | 90159-60303 | SCREW |
| 9018906227 | 90189-06227 | GROMMET SCREW |
| OEM | Part name | Category |
|---|---|---|
| 86160-22A10 | Speaker Assy, Front No.1 | Speaker ([09.2010 - ] (1009- )) |
| 86160-30A20 | Speaker Assy, Front No.1 | Speaker ([09.2010 - ] (1009- )) |
| 86160-30B20 | Speaker Assy, Front No.2 | Speaker ([09.2010 - ] (1009- )) |
| 86160-30B30 | Speaker Assy, Front No.2 | Speaker ([09.2010 - ] (1009- )) |
| 86160-52300 | Speaker Assy, Front No.1 | Speaker ([09.2010 - ] (1009- )) |
| 90159-50327 | SCREW WWASHER | Speaker ([09.2010 - ] (1009- )) |
| 90159-60303 | SCREW | Speaker ([09.2010 - ] (1009- )) |
| 90189-06227 | GROMMET SCREW | Speaker ([09.2010 - ] (1009- )) |
