Search › Model › GRS195
GRS195

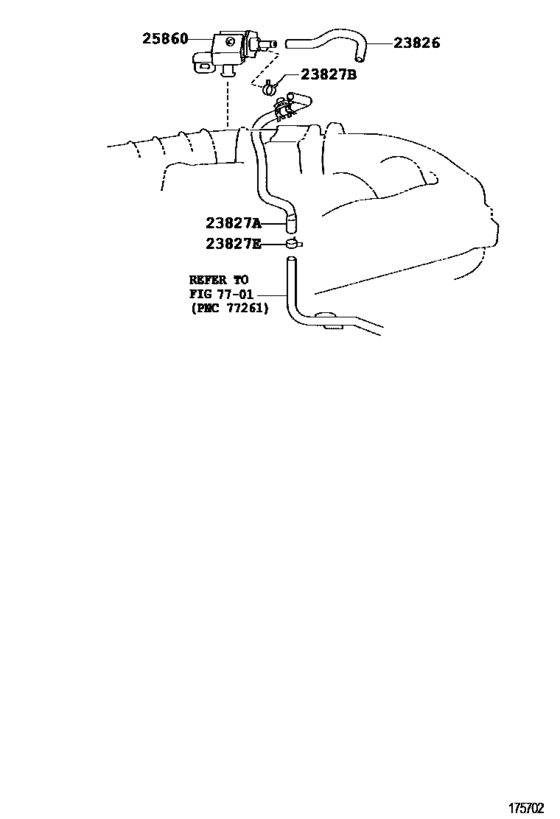

Vacuum Piping ([01.2005 - 07.2006] (0501-0607)3GRFSE) 6
| # | OEM | Part name |
|---|---|---|
| 23826 | 23826-31020 | Hose, Fuel Vapor Feed, No.1 |
| 23827 | 23827-31030 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 23827 | 90467-15022 | Clip Or Clamp(For Ventilation Hose) |
| 23827 | 96132-41500 | Clip(For Ventilation Tube) |
| 25860 | 25860-31040 | Valve Assy, Vacuum Switching, No.1 |
| OEM | Part name | Category |
|---|---|---|
| 23826-31020 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([01.2005 - 07.2006] (0501-0607)3GRFSE) |
| 23827-31030 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([01.2005 - 07.2006] (0501-0607)3GRFSE) |
| 25860-31040 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([01.2005 - 07.2006] (0501-0607)3GRFSE) |
| 90467-15022 | Clip Or Clamp(For Ventilation Hose) | Vacuum Piping ([01.2005 - 07.2006] (0501-0607)3GRFSE) |
| 96132-41500 | Clip(For Ventilation Tube) | Vacuum Piping ([01.2005 - 07.2006] (0501-0607)3GRFSE) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([01.2005 - 07.2006] (0501-0607)3GRFSE) |
