Search › Model › GRS195

GRS195

Lexus GS · 2005 · 4,734 parts · 177 categories

4,734 items

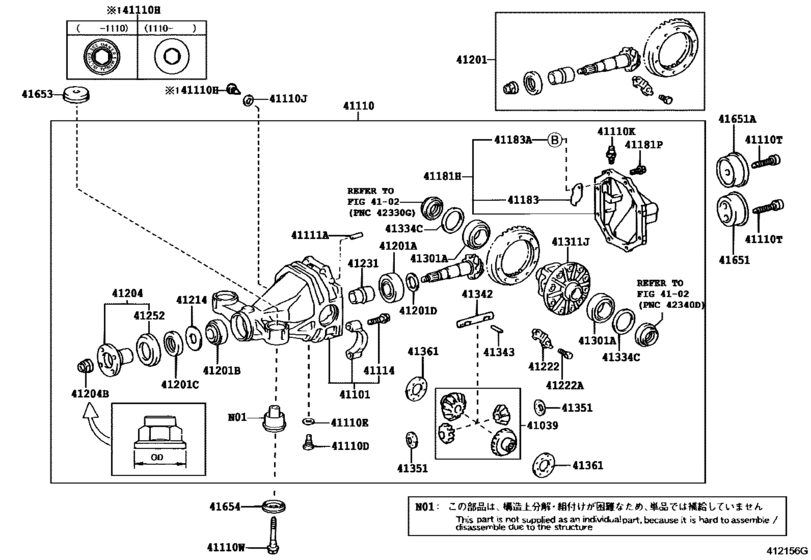

Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195) 100

#	OEM	Part name
41039	41039-34030	Gear Kit, Differential, Rear
41101	41101-22090	Carrier Sub-Assy, Differential, Rear
41110	41110-30A21	Carrier Assy, Differential, Rear
41110	90341-18035	Plug, No.1 (With Magnet)
41110	12157-10010	Gasket (For Drain Plug)
41110	90341-18032	Plug Sub-Assy, Drain(Mtm) - No magnet
41110	90341-18066	Plug (For Rear Differential Filler)
41110	90930-03077	Plug, Breather (For Automatic Transmission Case)
41110	90110-14004	Bolt, No.2 (For Rear Differential Carrier Set)
41110	90110-14006	Bolt, No.2 (For Rear Differential Carrier Set)
41110	90109-12081	Bolt, No.4 (For Rear Differential Carrier Set)
41111	90250-08120	Pin, Straight, No.1
41114	90105-12164	Bolt (For Rear Differential Carrier)
41181	41108-53010	Cover, Rear Differential Carrier
41181	90105-10417	Bolt (For Front Differential Carrier Cover Setting)
41183	41183-53010	Deflector, Rear Differential Breather Plug Oil
41183	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
41201	41201-80054	Final Gear Kit, Differential, Rear
41201	90366-35104	Bearing (For Rear Drive Pinion Rear)
41201	90366-35117	Bearing (For Rear Drive Pinion Rear)
41201	90366-30078	Bearing (For Rear Drive Pinion Front)
41201	90311-38070	Seal, Oil (For Rear Differential Carrier)
41201	90201-35497	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35498	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35499	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35500	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35501	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35502	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35503	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35504	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35505	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35506	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35507	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35508	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35509	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35510	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35511	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35512	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35513	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35514	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35515	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35516	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35517	Washer, Plate (For Rear Differential Drive Pinion)
41201	90201-35518	Washer, Plate (For Rear Differential Drive Pinion)
41204	41204-35050	Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204	90179-18019	Nut (For Rear Drive Pinion)
41204	90179-18020	Nut (For Transfer Gear)
41214	41214-35020	Slinger, Rear Differential Drive Pinion Oil
41222	41222-35030	Plate, Rear Differential Ring Gear Set Bolt Lock
41222	90101-11353	Bolt (For Rear Differential Ring Gear Set)
41231	41231-22010	Spacer, Rear Differential Drive Pinion Bearing
41252	41252-30010	Deflector, Dust (For Rear Differential)
41301	90368-50006	Bearing(For Rear Differential Case)
41311	41311-28030	Case, Front Differential
41334	90201-65007	Washer, Plate (For Front Differential Case)
41334	90201-65009	Washer, Plate (For Front Differential Case)
41334	90201-65011	Washer, Plate (For Front Differential Case)
41334	90201-65013	Washer, Plate (For Front Differential Case)
41334	90201-65015	Washer, Plate (For Front Differential Case)
41334	90201-65017	Washer, Plate (For Front Differential Case)
41334	90201-65019	Washer, Plate (For Front Differential Case)
41334	90201-65021	Washer, Plate (For Front Differential Case)
41334	90201-65023	Washer, Plate (For Front Differential Case)
41334	90201-65025	Washer, Plate (For Front Differential Case)
41334	90201-65027	Washer, Plate (For Front Differential Case)
41334	90201-65029	Washer, Plate (For Front Differential Case)
41334	90564-65001	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65002	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65003	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65004	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65005	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65006	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65007	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65008	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65009	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65010	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65011	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65012	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65013	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65014	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65015	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65016	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65017	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65018	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65019	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65020	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65021	Washer, Plate (For Rear Differential Side Gear Shaft)
41334	90564-65022	Washer, Plate (For Rear Differential Side Gear Shaft)
41342	41342-22021	Shaft, Rear Differential Pinion
41343	90250-06058	Pin, Straight(For Timing Gear Case)
41351	41351-30060	Washer, Rear Differential Pinion Thrust
41361	41361-30040	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-30050	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-30060	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-30070	Washer, Rear Differential Side Gear Thrust, No.1
41651	41651-30060	Cushion, Rear Differential Mount, No.1
41651	41651-30070	Cushion, Rear Differential Mount, No.2
41653	41653-30060	Stopper, Rear Differential Mount, Upper
41654	41654-30040	Stopper, Rear Differential Mount, Lower
41654	41654-30041	Stopper, Rear Differential Mount, Lower

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41039-34030	Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41101-22090	Carrier Sub-Assy, Differential, Rear	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41108-53010	Cover, Rear Differential Carrier	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41110-30A21	Carrier Assy, Differential, Rear	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41183-53010	Deflector, Rear Differential Breather Plug Oil	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41201-80054	Final Gear Kit, Differential, Rear	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41204-35050	Flange Sub-Assy, Rear Drive Pinion Companion, Rear	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41214-35020	Slinger, Rear Differential Drive Pinion Oil	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41222-35030	Plate, Rear Differential Ring Gear Set Bolt Lock	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41231-22010	Spacer, Rear Differential Drive Pinion Bearing	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41252-30010	Deflector, Dust (For Rear Differential)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41311-28030	Case, Front Differential	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41342-22021	Shaft, Rear Differential Pinion	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41351-30060	Washer, Rear Differential Pinion Thrust	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41361-30040	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41361-30050	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41361-30060	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41361-30070	Washer, Rear Differential Side Gear Thrust, No.1	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41651-30060	Cushion, Rear Differential Mount, No.1	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41651-30070	Cushion, Rear Differential Mount, No.2	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41653-30060	Stopper, Rear Differential Mount, Upper	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41654-30040	Stopper, Rear Differential Mount, Lower	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
41654-30041	Stopper, Rear Differential Mount, Lower	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90101-11353	Bolt (For Rear Differential Ring Gear Set)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90105-10417	Bolt (For Front Differential Carrier Cover Setting)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90105-12164	Bolt (For Rear Differential Carrier)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90109-12081	Bolt, No.4 (For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90110-14004	Bolt, No.2 (For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90110-14006	Bolt, No.2 (For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90179-18019	Nut (For Rear Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90179-18020	Nut (For Transfer Gear)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35497	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35498	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35499	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35500	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35501	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35502	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35503	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35504	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35505	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35506	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35507	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35508	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35509	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35510	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35511	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35512	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35513	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35514	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35515	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35516	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35517	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-35518	Washer, Plate (For Rear Differential Drive Pinion)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65007	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65009	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65011	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65013	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65015	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65017	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65019	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65021	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65023	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65025	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65027	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90201-65029	Washer, Plate (For Front Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90250-06058	Pin, Straight(For Timing Gear Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90250-08120	Pin, Straight, No.1	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90311-38070	Seal, Oil (For Rear Differential Carrier)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90341-18032	Plug Sub-Assy, Drain(Mtm) - No magnet	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90341-18035	Plug, No.1 (With Magnet)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90341-18066	Plug (For Rear Differential Filler)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90366-30078	Bearing (For Rear Drive Pinion Front)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90366-35104	Bearing (For Rear Drive Pinion Rear)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90366-35117	Bearing (For Rear Drive Pinion Rear)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90368-50006	Bearing(For Rear Differential Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65001	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65002	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65003	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65004	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65005	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65006	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65007	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65008	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65009	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65010	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65011	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65012	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65013	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65014	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65015	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65016	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65017	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65018	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65019	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65020	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65021	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90564-65022	Washer, Plate (For Rear Differential Side Gear Shaft)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
90930-03077	Plug, Breather (For Automatic Transmission Case)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Rear Axle Housing & Differential ([01.2005 - ] (0501- )GRS195)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 177
Collected: 2026-07-30
