GRS184

Toyota CROWN-MAJESTA · 2005 · 4,154 parts · 195 categories
GRS184 ×

← Back to categories

4,154 items

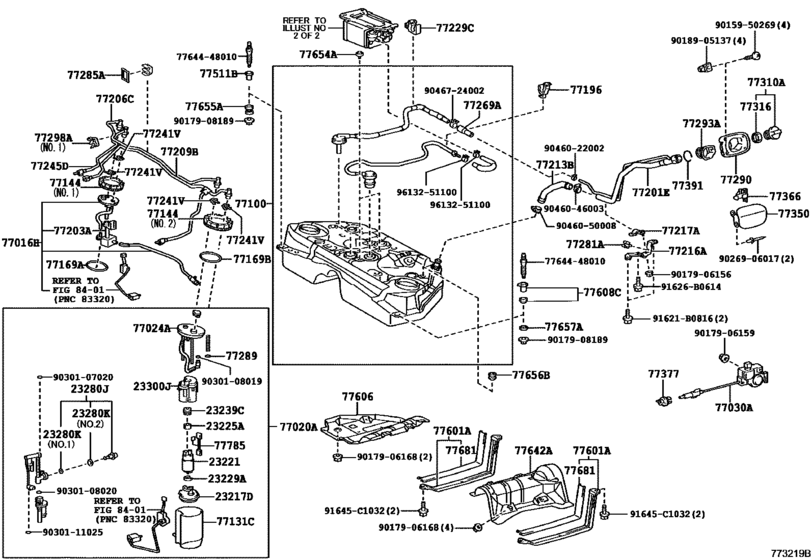

Fuel Tank & Tube ([08.2006 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0608- )GRS184) 99
#OEMPart name
23217 23217-31020 Filter, Fuel Pump
23217 23217-31100 Filter, Fuel Pump
23221 23221-31020 Pump, Fuel
23221 23221-31340 Pump, Fuel
23221 23221-31090 Pump, Fuel
23225 23225-21010 Spacer, Fuel Pump
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23239 23239-21010 Seal, Fuel Pump Filter
23280 23280-31020 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
23300 23300-31110 Filter Assy, Fuel
23300 23300-31140 Filter Assy, Fuel
77016 77016-30040 Tube Sub-Assy, Fuel Return Vent
77016 77016-30080 Tube Sub-Assy, Fuel Return Vent
77020 77020-30170 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-30171 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-30290 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-30292 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-30291 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-30090 Plate Sub-Assy, Fuel Suction
77024 77024-30110 Plate Sub-Assy, Fuel Suction
77030 77030-30140 Lock Assy, Fuel Lid W/motor
77100 77001-30560 Tank Assy, Fuel
77100 77001-30561 Tank Assy, Fuel
77131 77131-30050 Sub-Tank, Fuel, No.1
77131 77131-30070 Sub-Tank, Fuel, No.1
77131 77131-30071 Sub-Tank, Fuel, No.1
77144 77144-30020 Retainer, Fuel Pump Gauge
77144 77144-47020 Retainer, Fuel Pump Gauge
77169 77169-30010 Gasket, Fuel Suction Tube Set
77169 77169-47030 Gasket, Fuel Suction Tube Set
77196 77196-30050 Clamp, Evaporation Vent Tube, No.1
77201 77201-30420 Pipe Sub-Assy, Fuel Tank Filler
77203 77203-30180 Tube Sub-Assy, Fuel Suction
77206 77206-30030 Tube Sub-Assy, Fuel Main, No.2
77209 77209-30140 Tube Sub-Assy, Fuel Pump
77209 77209-30220 Tube Sub-Assy, Fuel Pump
77213 77213-30191 Hose, Fuel Tank To Filler Pipe
77216 77216-30050 Support, Fuel Tank Filler Pipe, No.1
77216 77216-30051 Support, Fuel Tank Filler Pipe, No.1
77217 77217-30130 Support, Fuel Tank Filler Pipe, No.2
77217 77217-30131 Support, Fuel Tank Filler Pipe, No.2
77229 77229-30050 Clamp, Breather Tube
77241 77241-60320 Clip, Tube Joint
77245 77245-30170 Tube, Fuel Tank Return Vent
77269 77269-30060 Hose, Fuel Tank Breather
77281 77281-50020 Clamp, Fuel Filler Pipe
77285 77285-30230 Support, Fuel Return And Main Tube
77289 77289-52090 Holder, Fuel Tank Pipe Setting
77290 77290-30100 Shield Assy, Fuel Tank Filler Pipe
77293 77293-30060 Shield, Fuel Tank Filler Pipe, No.3
77298 77298-12010 Clamp, Fuel Tube, No.4
77298 77298-30150 Clamp, Brake Tube, No.8
77298 77298-30180 Clamp, Fuel Tube, No.4
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-30360 Lid Assy, Fuel Filler Opening
77350 77350-30400 Lid Assy, Fuel Filler Opening
77366 77360-12030 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77511 77511-48030 Bracket, Fuel Tank
77601 77601-30170 Band Sub-Assy, Fuel Tank, No.1
77601 77601-30171 Band Sub-Assy, Fuel Tank, No.1
77606 77606-30190 Protector Sub-Assy, Fuel Tank, No.1
77608 77608-48010 Cushion Set, Fuel Tank
77642 77642-30030 Protector, Fuel Tank, No.2
77654 77654-30020 Cushion, Fuel Tank, No.4
77655 77655-30080 Cushion, Fuel Tank, No.5
77656 77656-30030 Cushion, Fuel Tank, No.6
77657 77655-48010 Cushion, Fuel Tank
77681 77681-30010 Seat, Fuel Tank Band, Rh
77785 77785-30040 Harness, Fuel Pump
77785 77785-30041 Harness, Fuel Pump
91621 91621-B0816 BOLT WWASHER
91626 91626-B0614 BOLT, W/WASHER
91645 91645-C1032 Bolt, Fuel Tank
7764448010 77644-48010 Bolt, Fuel Tank
9015950269 90159-50269 SCREW WWASHER
9017906156 90179-06156 Nut (For Transmission Control Cable)
9017906159 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017906159 90080-17210 Nut, Rear Wiper Link Pivot, No.1
9017906168 90179-06168 Nut & Washer Assy
9017908189 90179-08189 NUT
9018905137 90189-05137 GROMMET SCREW
9026906017 90269-06017 RIVET
9030107020 90301-07020 Ring, O(For Fuel Pressure Regulator)
9030108019 90301-08019 Ring, O(For Fuel Pressure Regulator)
9030108020 90301-08020 Ring, O(For Fuel Pump)
9030111025 90301-11025 Ring, O(For Fuel Pump)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046050008 90460-50008 Clamp (For Fuel Filler Pipe)
9046724002 90467-24002 Clip(For Water By-Pass Hose No.2)
9613251100 96132-51100 Clip (For Hose)
