GRS183

Toyota CROWN-MAJESTA · 2003 · 6,015 parts · 229 categories

← Back to categories

6,015 items

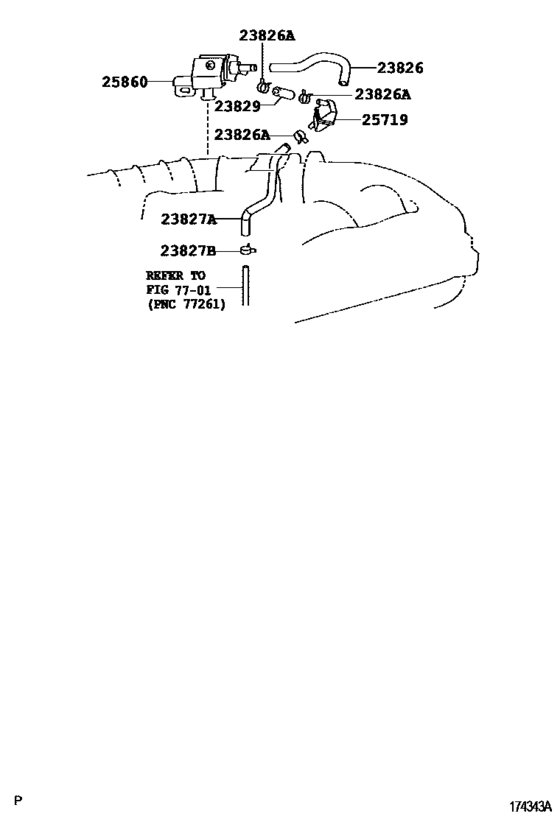

Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE) 11

#	OEM	Part name
23826	23826-31020	Hose, Fuel Vapor Feed, No.1
23826	23826-31030	Hose, Fuel Vapor Feed, No.1
23826	96132-51300	Clip(For Ventilation Hose No.2)
23827	23827-31010	Hose, Fuel Vapor Feed, No.2
23827	23827-31041	Hose, Fuel Vapor Feed, No.2
23827	23827-31110	Hose, Fuel Vapor Feed, No.2
23827	96132-41500	Clip(For Ventilation Tube)
23829	23829-31010	Hose, Fuel Vapor Feed, No.3
25719	25719-31010	Pipe, Fuel Vapor Feed
25860	25860-31040	Valve Assy, Vacuum Switching, No.1
25860	25860-50160	Valve Assy, Vacuum Switching, No.1

OEM	Part name	Category
23826-31020	Hose, Fuel Vapor Feed, No.1	Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE)
23826-31030	Hose, Fuel Vapor Feed, No.1	Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE)
23827-31010	Hose, Fuel Vapor Feed, No.2	Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE)
23827-31041	Hose, Fuel Vapor Feed, No.2	Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE)
23827-31110	Hose, Fuel Vapor Feed, No.2	Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE)
23829-31010	Hose, Fuel Vapor Feed, No.3	Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE)
25719-31010	Pipe, Fuel Vapor Feed	Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE)
25860-31040	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE)
25860-50160	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE)
96132-41500	Clip(For Ventilation Tube)	Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE)
96132-51300	Clip(For Ventilation Hose No.2)	Vacuum Piping ([11.2004 - 09.2005] (0411-0509)3GRFSE,4GRFSE)
