Search › Model › GRS183

GRS183

Toyota CROWN-MAJESTA · 2003 · 6,015 parts · 229 categories

← Back to categories

6,015 items

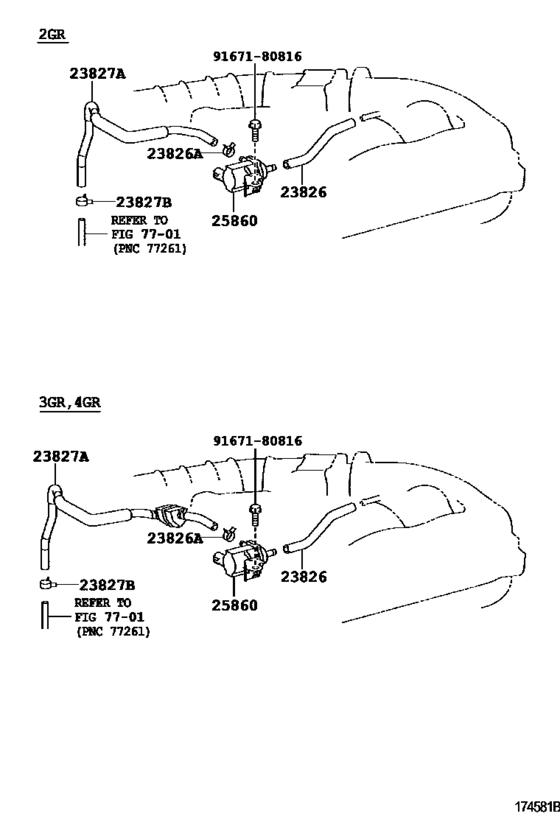

Vacuum Piping ([09.2005 - ] (0509- )2GRFSE,3GRFSE,4GRFSE) 10

#	OEM	Part name
23826	23826-31020	Hose, Fuel Vapor Feed, No.1
23826	23826-31030	Hose, Fuel Vapor Feed, No.1
23826	96132-51300	Clip(For Ventilation Hose No.2)
23827	23827-31010	Hose, Fuel Vapor Feed, No.2
23827	23827-31041	Hose, Fuel Vapor Feed, No.2
23827	23827-31110	Hose, Fuel Vapor Feed, No.2
23827	96132-41500	Clip(For Ventilation Tube)
25860	25860-31040	Valve Assy, Vacuum Switching, No.1
25860	25860-50160	Valve Assy, Vacuum Switching, No.1
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
23826-31020	Hose, Fuel Vapor Feed, No.1	Vacuum Piping ([09.2005 - ] (0509- )2GRFSE,3GRFSE,4GRFSE)
23826-31030	Hose, Fuel Vapor Feed, No.1	Vacuum Piping ([09.2005 - ] (0509- )2GRFSE,3GRFSE,4GRFSE)
23827-31010	Hose, Fuel Vapor Feed, No.2	Vacuum Piping ([09.2005 - ] (0509- )2GRFSE,3GRFSE,4GRFSE)
23827-31041	Hose, Fuel Vapor Feed, No.2	Vacuum Piping ([09.2005 - ] (0509- )2GRFSE,3GRFSE,4GRFSE)
23827-31110	Hose, Fuel Vapor Feed, No.2	Vacuum Piping ([09.2005 - ] (0509- )2GRFSE,3GRFSE,4GRFSE)
25860-31040	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([09.2005 - ] (0509- )2GRFSE,3GRFSE,4GRFSE)
25860-50160	Valve Assy, Vacuum Switching, No.1	Vacuum Piping ([09.2005 - ] (0509- )2GRFSE,3GRFSE,4GRFSE)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Vacuum Piping ([09.2005 - ] (0509- )2GRFSE,3GRFSE,4GRFSE)
96132-41500	Clip(For Ventilation Tube)	Vacuum Piping ([09.2005 - ] (0509- )2GRFSE,3GRFSE,4GRFSE)
96132-51300	Clip(For Ventilation Hose No.2)	Vacuum Piping ([09.2005 - ] (0509- )2GRFSE,3GRFSE,4GRFSE)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 229
Collected: 2026-08-02
