Search › Model › GRS183

GRS183

Toyota CROWN-MAJESTA · 2003 · 6,015 parts · 229 categories

6,015 items

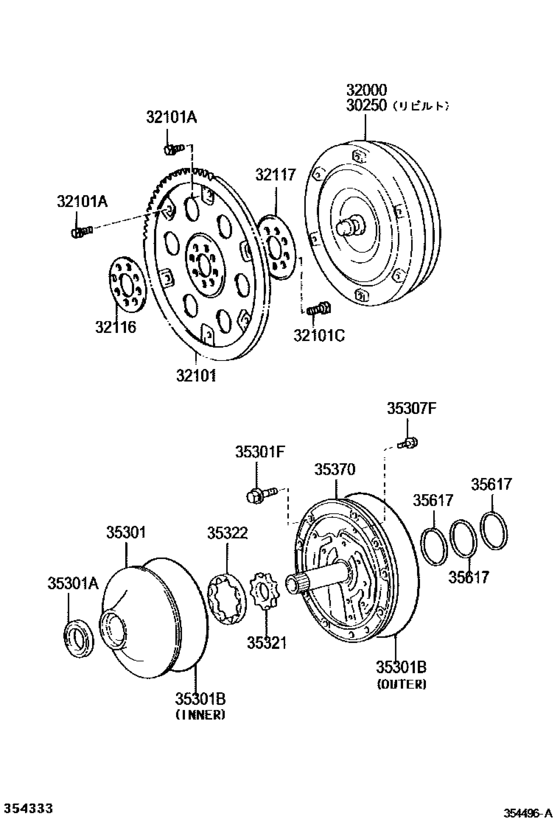

Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184) 33

#	OEM	Part name
30250	30250-30390	Converter Assy, Torque, Rebuilt
32000	32000-30390	Converter Assy, Torque
32101	32101-30080	Gear Sub-Assy, Drive Plate & Ring
32101	32101-30081	Gear Sub-Assy, Drive Plate & Ring
32101	90105-09005	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-09006	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10048	Bolt, Flywheel Setting
32116	32116-32020	Spacer, Drive Plate, Front
32117	32117-30030	Spacer, Drive Plate, Rear
35301	35301-60030	Body Sub-Assy, Front Oil Pump
35301	90311-38083	Seal, Oil (For Front Oil Pump)
35301	90301-99139	Ring, O (For Front Oil Pump Body)
35301	90301-99148	Ring, O (For Front Oil Pump Body)
35301	90105-08451	Bolt (For Front Oil Pump Setting)
35301	91511-K0840	Bolt(For Crankshaft Bearing Cap Set)
35307	90148-60079	Bolt (For Stator Shaft)
35321	35321-50010	Gear, Front Oil Pump Drive
35321	35321-50020	Gear, Front Oil Pump Drive
35321	35321-50030	Gear, Front Oil Pump Drive
35321	35321-50040	Gear, Front Oil Pump Drive
35321	35321-50050	Gear, Front Oil Pump Drive
35321	35321-50060	Gear, Front Oil Pump Drive
35321	35321-50070	Gear, Front Oil Pump Drive
35322	35322-50010	Gear, Front Oil Pump Driven
35322	35322-50020	Gear, Front Oil Pump Driven
35322	35322-50030	Gear, Front Oil Pump Driven
35322	35322-50040	Gear, Front Oil Pump Driven
35322	35322-50050	Gear, Front Oil Pump Driven
35322	35322-50060	Gear, Front Oil Pump Driven
35322	35322-50070	Gear, Front Oil Pump Driven
35370	35370-50030	Shaft Assy, Stator
35617	35617-50030	Ring, Clutch Drum Oil Seal
35617	35617-60020	Ring, Clutch Drum Oil Seal

OEM	Part name	Category
30250-30390	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
32000-30390	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
32101-30080	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
32101-30081	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
32116-32020	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
32117-30030	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35301-60030	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35321-50010	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35321-50020	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35321-50030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35321-50040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35321-50050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35321-50060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35321-50070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35322-50010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35322-50020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35322-50030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35322-50040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35322-50050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35322-50060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35322-50070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35370-50030	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35617-50030	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
35617-60020	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
90105-08451	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
90105-09005	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
90105-09006	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
90105-10048	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
90148-60079	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
90301-99139	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
90301-99148	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
90311-38083	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
91511-K0840	Bolt(For Crankshaft Bearing Cap Set)	Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184)
