Search › Model › GRN305

GRN305

Toyota TACOMA · 2015 · 3,920 parts · 206 categories

3,920 items

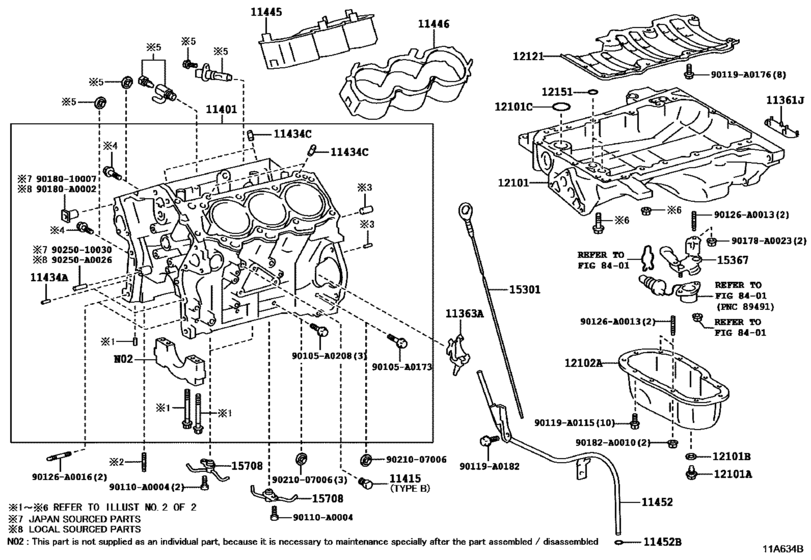

Cylinder Block ([08.2015 - ] (1508- )2GRFKS) 52

#	OEM	Part name
11361	11361-0P010	Cover, Flywheel Housing Under
11363	11363-0P020	Cover, Flywheel Housing Side
11401	11401-09A20	Block Sub-Assy, Cylinder
11401	90919-05089	Sensor, Crank Position
11415	90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	90345-A0001	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	90910-09129	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	90910-09087	Plug, Water Drain Cock(For Cylinder Block)
11416	90910-A2004	Bolt(For Crankshaft Bearing Cap Set)
11434	90250-04097	Pin, Straight(For Camshaft Housing Rh)
11434	90250-08120	Pin, Straight, No.1
11445	11445-0P020	Spacer, Cylinder Block Water Jacket
11445	11445-31050	Spacer, Cylinder Block Water Jacket
11446	11446-0P020	Spacer, Cylinder Block Water Jacket, Lh
11446	11446-31050	Spacer, Cylinder Block Water Jacket, Lh
11452	11452-0P050	Guide, Oil Level Gage
11452	90301-A0062	Ring, O(For Oil Level Gage Guide)
11452	96721-19010	Ring, O(For Oil Level Gage Guide)
12101	12101-0P020	Pan Sub-Assy, Oil
12101	90341-A0007	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12101	90430-A0006	Gasket(For Oil Pan Drain Plug)
12101	90301-A0061	Ring, O(For Oil Pan)
12101	96723-24033	Ring, O(For Oil Pan)
12102	12102-0P030	Pan Sub-Assy, Oil, No.2
12121	12121-0P030	Plate, Oil Pan Baffle, No.1
12151	12151-0P010	Gasket, Oil Pan
15301	15301-0P060	Gage Sub-Assy, Oil Level
15367	15367-31011	Bracket, Oil Level Sensor
15708	15708-31050	Nozzle Sub-Assy, Oil, No.1
90105	90105-A0173	New Genuine Part
90105	90105-A0208	Bolt(For Camshaft Housing Set)
90105	90105-A0064	New Genuine Part
90105	90105-A0121	New Genuine Part
90105	90105-A0123	Bolt(For Cylinder Head Cover)
90105	90105-A0127	Bolt(For Cylinder Head Set Sub)
90119	90119-A0115	New Genuine Part
90119	90119-A0176	New Genuine Part
90119	90119-A0182	New Genuine Part
90119	90119-A0160	New Genuine Part
90126	90126-A0013	Bolt, Stud(For Oil Pan)
90126	90126-A0016	New Genuine Part
90126	90126-A0019	Bolt, Stud(For Intake Manifold To Cylinder Head)
90178	90178-A0023	Nut, Wire Adjusting, No.2
90178	90178-A0024	New Genuine Part
90182	90182-A0010	New Genuine Part
90250	90250-A0026	Pin, Ring(For Timing Belt Idler Bracket Set)
90910	90910-A2005	Bolt(For Crankshaft Bearing Cap Set)
9018010007	90180-10007	New Genuine Part
9021007006	90210-07006	WASHER SEAL
9025010030	90250-10030	Pin, Straight(For Clutch Housing Set)
9025010113	90250-10113	Pin, Straight(For Timing Gear Cover Set)

OEM	Part name	Category
11361-0P010	Cover, Flywheel Housing Under	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
11363-0P020	Cover, Flywheel Housing Side	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
11401-09A20	Block Sub-Assy, Cylinder	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
11445-0P020	Spacer, Cylinder Block Water Jacket	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
11445-31050	Spacer, Cylinder Block Water Jacket	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
11446-0P020	Spacer, Cylinder Block Water Jacket, Lh	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
11446-31050	Spacer, Cylinder Block Water Jacket, Lh	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
11452-0P050	Guide, Oil Level Gage	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
12101-0P020	Pan Sub-Assy, Oil	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
12102-0P030	Pan Sub-Assy, Oil, No.2	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
12121-0P030	Plate, Oil Pan Baffle, No.1	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
12151-0P010	Gasket, Oil Pan	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
15301-0P060	Gage Sub-Assy, Oil Level	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
15367-31011	Bracket, Oil Level Sensor	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
15708-31050	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90105-A0064	New Genuine Part	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90105-A0121	New Genuine Part	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90105-A0123	Bolt(For Cylinder Head Cover)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90105-A0127	Bolt(For Cylinder Head Set Sub)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90105-A0173	New Genuine Part	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90105-A0208	Bolt(For Camshaft Housing Set)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90119-A0115	New Genuine Part	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90119-A0160	New Genuine Part	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90119-A0176	New Genuine Part	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90119-A0182	New Genuine Part	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90126-A0013	Bolt, Stud(For Oil Pan)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90126-A0016	New Genuine Part	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90126-A0019	Bolt, Stud(For Intake Manifold To Cylinder Head)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90178-A0023	Nut, Wire Adjusting, No.2	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90178-A0024	New Genuine Part	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90180-10007	New Genuine Part	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90182-A0010	New Genuine Part	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90210-07006	WASHER SEAL	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90250-04097	Pin, Straight(For Camshaft Housing Rh)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90250-08120	Pin, Straight, No.1	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90250-10030	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90250-A0026	Pin, Ring(For Timing Belt Idler Bracket Set)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90301-A0061	Ring, O(For Oil Pan)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90301-A0062	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90341-A0007	Plug(For Oil Pan Drain)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90345-A0001	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90430-A0006	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90910-09087	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90910-09129	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90910-A2004	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90910-A2005	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
90919-05089	Sensor, Crank Position	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
96721-19010	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
96723-24033	Ring, O(For Oil Pan)	Cylinder Block ([08.2015 - ] (1508- )2GRFKS)
