GRN305

Toyota TACOMA · 2015 · 3,920 parts · 206 categories

3,920 items

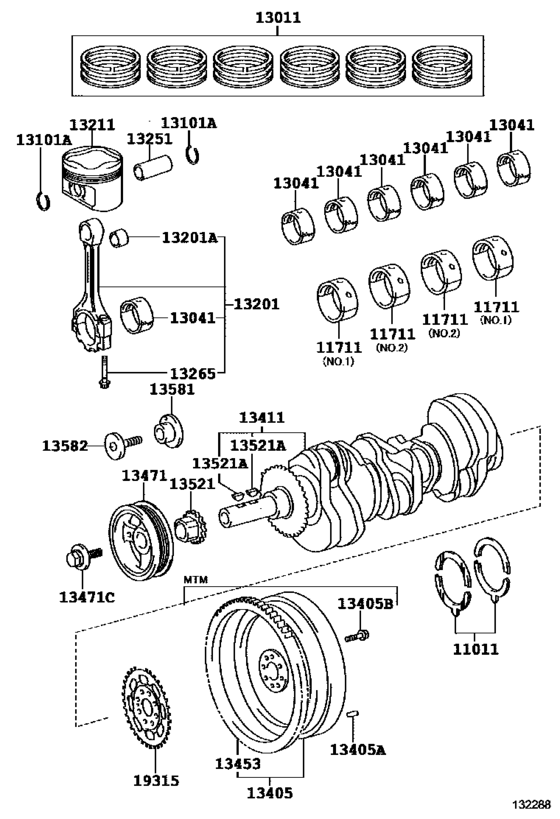

Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS) 49

#	OEM	Part name
11011	11011-31080	Washer Set, Crankshaft Thrust
11711	11071-0P060-A1	Bearing, Crankshaft
11711	11071-0P060-A2	Bearing, Crankshaft
11711	11071-0P060-B2	Bearing, Crankshaft
11711	11071-0P060-B3	Bearing, Crankshaft
11711	11071-0P060-C3	Bearing, Crankshaft
11711	11071-0P060-C4	Bearing, Crankshaft
11711	11071-0P060-D4	Bearing, Crankshaft
11711	11071-0P060-D5	Bearing, Crankshaft
11711	11071-0P060-E5	Bearing, Crankshaft
11711	11701-0P060-A1	Bearing, Crankshaft
11711	11701-0P060-A2	Bearing, Crankshaft
11711	11701-0P060-B2	Bearing, Crankshaft
11711	11701-0P060-B3	Bearing, Crankshaft
11711	11701-0P060-C3	Bearing, Crankshaft
11711	11701-0P060-C4	Bearing, Crankshaft
11711	11701-0P060-D4	Bearing, Crankshaft
11711	11701-0P060-D5	Bearing, Crankshaft
11711	11701-0P060-E5	Bearing, Crankshaft
13011	13011-0P050	Ring Set, Piston
13011	13011-0P051	Ring Set, Piston
13041	13041-0P090-01	Bearing, Connecting Rod
13041	13041-0P090-02	Bearing, Connecting Rod
13041	13041-0P090-03	Bearing, Connecting Rod
13041	13041-0P090-04	Bearing, Connecting Rod
13101	90520-A0004	Ring, Hole Snap(For Piston Pin)
13201	13201-09B90	Rod Sub-Assy, Connecting
13201	90999-73144	Bush(For Connecting Rod Small End)
13211	13101-0P040	Piston Sub-Assy, W/pin
13211	13211-0P040-A0	Piston
13211	13211-0P040-B0	Piston
13211	13211-0P040-C0	Piston
13211	13221-0P030-A0	Piston
13211	13301-0P030	Pin, Piston
13211	13221-0P030-B0	Piston
13211	13221-0P030-C0	Piston
13251	13251-0P020-A0	Pin, Piston
13251	13251-0P020-B0	Pin, Piston
13251	13251-0P020-C0	Pin, Piston
13265	13265-28010	Bolt, Connecting Rod
13265	13265-28020	BOLT CONNECTING ROD
13411	13401-0P060	Crankshaft
13471	13470-31090	Pulley, Crankshaft
13471	90119-16020	Bolt(For Crankshaft Pulley Set)
13521	13521-0P020	Gear Or Sprocket, Crankshaft Timing
13521	95161-30516	Key(For Oil Pump Drive Spline)
13581	13581-AD010	Shaft, Idle Gear, No.1
13582	13582-31031	Shaft, Idle Gear, No.2
19315	19315-0P040	Plate, Crank Angle Sensor, No.1

OEM	Part name	Category
11011-31080	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11071-0P060-A1	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11071-0P060-A2	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11071-0P060-B2	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11071-0P060-B3	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11071-0P060-C3	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11071-0P060-C4	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11071-0P060-D4	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11071-0P060-D5	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11071-0P060-E5	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11701-0P060-A1	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11701-0P060-A2	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11701-0P060-B2	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11701-0P060-B3	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11701-0P060-C3	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11701-0P060-C4	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11701-0P060-D4	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11701-0P060-D5	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
11701-0P060-E5	Bearing, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13011-0P050	Ring Set, Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13011-0P051	Ring Set, Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13041-0P090-01	Bearing, Connecting Rod	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13041-0P090-02	Bearing, Connecting Rod	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13041-0P090-03	Bearing, Connecting Rod	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13041-0P090-04	Bearing, Connecting Rod	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13101-0P040	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13201-09B90	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13211-0P040-A0	Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13211-0P040-B0	Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13211-0P040-C0	Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13221-0P030-A0	Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13221-0P030-B0	Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13221-0P030-C0	Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13251-0P020-A0	Pin, Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13251-0P020-B0	Pin, Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13251-0P020-C0	Pin, Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13265-28010	Bolt, Connecting Rod	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13265-28020	BOLT CONNECTING ROD	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13301-0P030	Pin, Piston	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13401-0P060	Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13470-31090	Pulley, Crankshaft	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13521-0P020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13581-AD010	Shaft, Idle Gear, No.1	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
13582-31031	Shaft, Idle Gear, No.2	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
19315-0P040	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
90119-16020	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
90520-A0004	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
90999-73144	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
95161-30516	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([08.2015 - ] (1508- )2GRFKS)
