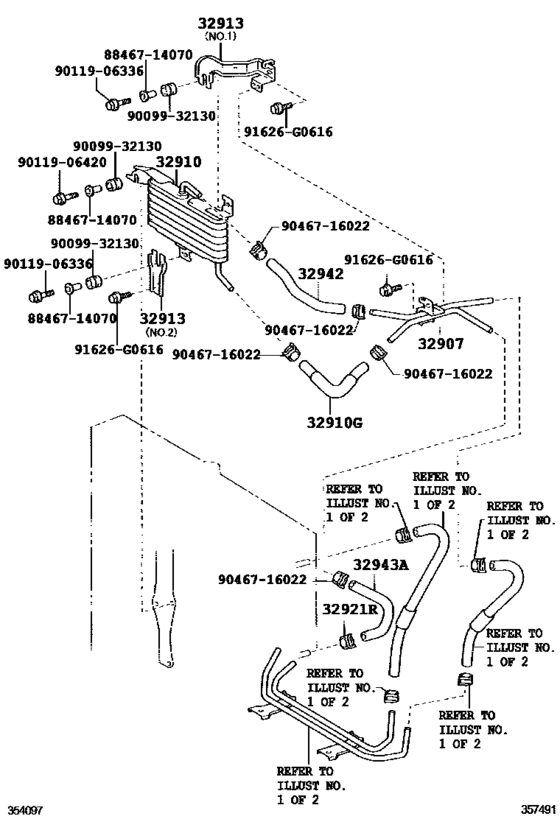

| 32907-60090 |
Tube Sub-Assy, Oil Cooler Outlet, No.2 |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 32910-60150 |
Cooler Assy, Oil |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 32913-60240 |
Bracket, Oil Cooler |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 32913-60250 |
Bracket, Oil Cooler |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 32942-60410 |
Hose, Oil Cooler Outlet, No.1 |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 32943-60280 |
Hose, Transmission Oil Cooler, No.2 |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 32943-60320 |
Hose, Oil Cooler Outlet |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 88467-14070 |
Insulator (For Power Take-Off Cable Bracket) |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 90099-32130 |
Grommet (For Power Take-Off Cable Bracket) |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 90119-06336 |
SCREW |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 90119-06420 |
BOLT WWASHER |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 90466-16004 |
Clip(For Ventilation Hose No.2) |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 90467-16022 |
Clip(For Water Inlet Hose) |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
| 91626-G0616 |
BOLT WWASHER |
Oil Cooler & Tube (Atm) ([08.2004 - 08.2005] A340E,A340F AIR COOLING OIL COOLER (0211-0308)GRN21# ; (0408-0508)GRN21#) |
