GRN210

Toyota HILUX-SURF-4RUNNER · 2002 · 5,395 parts · 362 categories
GRN210 ×

← Back to categories

5,395 items

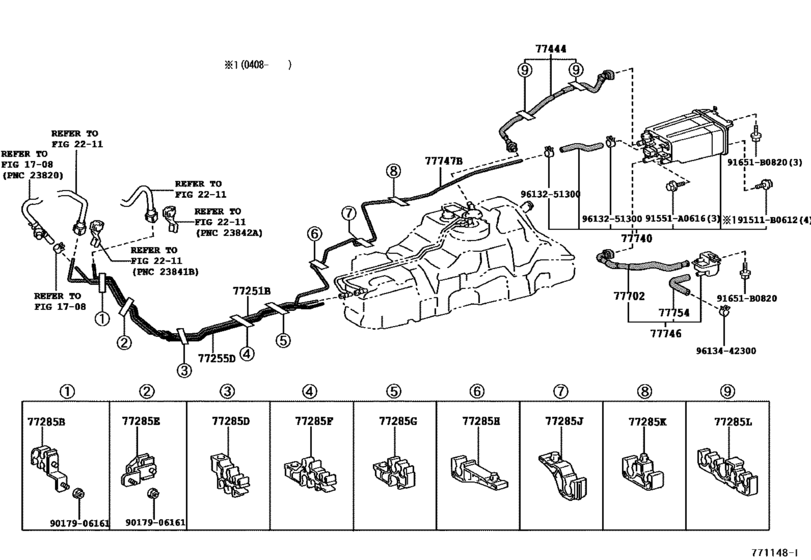

Fuel Tank & Tube ([08.2002 - ] FUEL TUBE (0208- )) 29
#OEMPart name
77251 77251-3D460 Tube, Fuel Main
77255 77255-3D080 Tube, Fuel Return
77285 77285-35630 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35631 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35670 Clamp, Fuel Tube, No.1
77285 77285-35640 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35641 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35680 Clamp, Fuel Tube, No.1
77285 77285-35690 Clamp, Fuel Tube, No.1
77285 77285-35700 Clamp, Fuel Tube, No.1
77285 77285-35710 Clamp, Fuel Tube, No.1
77285 77285-35610 Clamp, Fuel Tube, No.1
77285 77285-35620 Clamp, Fuel Tube, No.1
77444 77404-35020 Hose, Fuel Tank Vent
77702 77702-35020 Hose Sub-Assy, Canister Outlet, No.2
77740 77740-35511 Canister Assy, Charcoal
77740 77740-35530 Canister Assy, Charcoal
77740 77740-35531 Canister Assy, Charcoal
77746 77706-35020 Filter Sub-Assy, Charcoal Canister
77747 77747-35040 Tube, Charcoal Canister, No.1
77747 77747-35041 Tube, Charcoal Canister, No.1
77754 77754-35390 Hose, Charcoal Canister Outlet, No.1
91511 91511-B0612 BOLT FLANGE
91551 91551-A0616 New Genuine Part
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613442300 96134-42300 Clip Or Clamp(For Ventilation Hose)
