Search › Model › GRN210

GRN210

Toyota HILUX-SURF-4RUNNER · 2002 · 5,395 parts · 362 categories

5,395 items

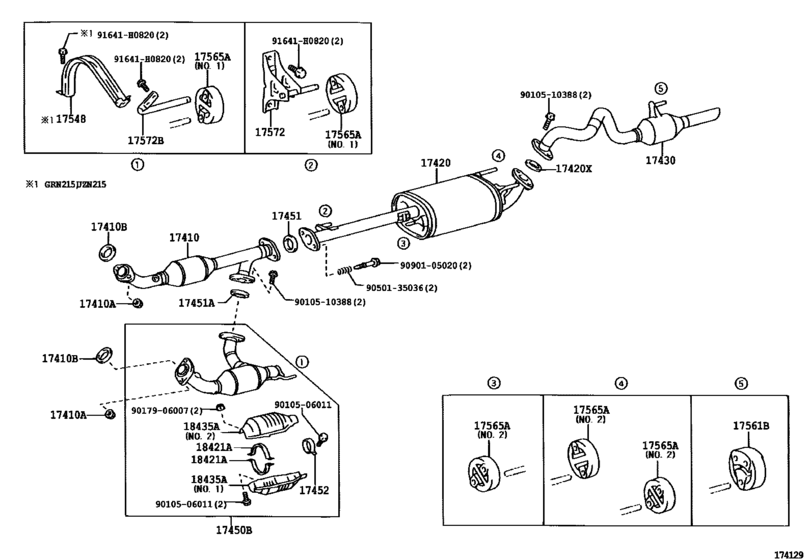

Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE) 26

#	OEM	Part name
17410	17410-31450	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06089	Gasket, Exhaust Pipe
17420	17420-50220	Pipe Assy, Exhaust, Center
17420	90917-06072	Gasket, Exhaust Pipe
17430	17430-31410	Pipe Assy, Exhaust, Tail
17450	17450-31030	Pipe Assy, Exhaust, Front No.2
17451	17451-74051	Gasket, Exhaust Pipe
17451	90917-06083	Gasket, Exhaust Pipe
17452	90461-12353	Clamp, Exhaust Pipe
17561	17561-73020	Bolt Or Ring, Exhaust Tail Pipe (For Front)
17561	17565-31050	Support, Exhaust Pipe, No.1
17565	17565-22040	Support, Exhaust Pipe, No.1
17565	17565-46040	Support, Exhaust Pipe, No.1
17572	17571-50140	Bracket, Exhaust Pipe Support, No.1
17572	17572-31070	Bracket, Exhaust Pipe Support, No.2
18421	18421-75010	Stay, Converter Protector, Lh
18435	18435-31030	Protector, Monolithic Converter
18435	18445-31010	Protector, Monolithic Converter
91641	91641-H0820	Bolt
9010506011	90105-06011	BOLT
9010510388	90105-10388	BOLT
9017906007	90179-06007	Nut
9050135036	90501-35036	SPRING COMPRESSION
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)

OEM	Part name	Category
17410-31450	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
17420-50220	Pipe Assy, Exhaust, Center	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
17430-31410	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
17450-31030	Pipe Assy, Exhaust, Front No.2	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
17451-74051	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
17561-73020	Bolt Or Ring, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
17565-31050	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
17565-46040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
17571-50140	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
17572-31070	Bracket, Exhaust Pipe Support, No.2	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
18421-75010	Stay, Converter Protector, Lh	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
18435-31030	Protector, Monolithic Converter	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
18445-31010	Protector, Monolithic Converter	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
90105-06011	BOLT	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
90105-10388	BOLT	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
90179-06007	Nut	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
90461-12353	Clamp, Exhaust Pipe	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
90501-35036	SPRING COMPRESSION	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
90917-06072	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
90917-06083	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
90917-06089	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
91641-H0820	Bolt	Exhaust Pipe ([11.2002 - ] (0211- )1GRFE ; (0408- )2UZFE)
