Search › Model › GRMN86

GRMN86

Toyota GT86 · 2016 · 477 parts · 94 categories

477 items

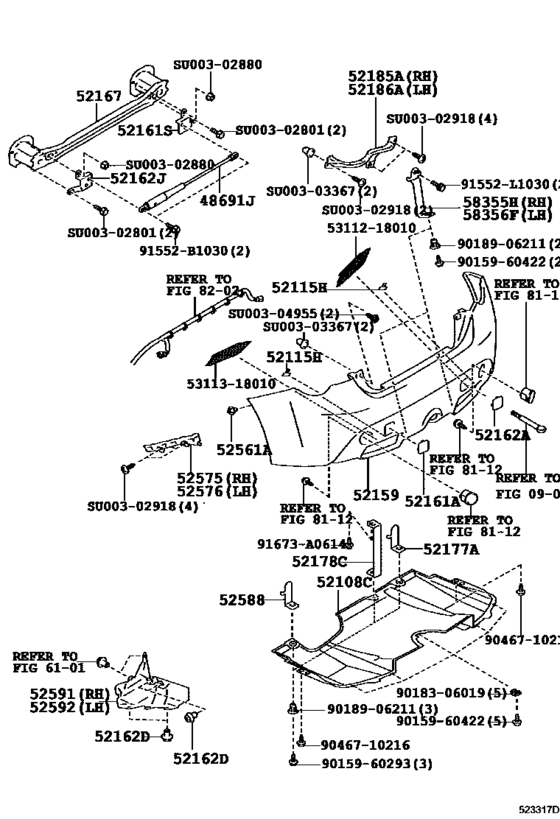

Rear Bumper & Bumper Stay ([02.2016 - ] (1602- )) 23

#	OEM	Part name
48691	48691-18010	Damper, Suspension Tower
52108	52108-18010	Extension Sub-Assy, Rear Bumper, Center
52115	52115-77010	Support, Rear Bumper Side
52159	52159-18901	Cover, Rear Bumper
52161	52161-18900	Piece, Rear Bumper, Rh
52161	52161-18010	Bracket, Rear Bumper Reinforcement, No.1
52162	52162-18900	Piece, Rear Bumper, Lh
52162	52162-18010	Bracket, Rear Bumper Reinforcement, No.2
52177	52177-18010	Retainer, Rear Bumper Extension, Rh
52178	52178-18010	Retainer, Rear Bumper Extension, Lh
52588	52588-18010	Retainer, Rear Bumper End, Lh
58355	58355-18010	Bracket, Rear Bumper Arm, Rh
58356	58356-18010	Bracket, Rear Bumper Arm, Lh
91552	91552-B1030	BOLT, FLANGE
91552	91552-L1030	New Genuine Part
91673	91673-A0614	BOLT, FLANGE W-WASER
5311218010	53112-18010	Grille, Radiator, Rh Or Upper
5311318010	53113-18010	Grille, Radiator, Lh Or Lower
9015960293	90159-60293	New Genuine Part
9015960422	90159-60422	SCREW WWASHER
9018306019	90183-06019	Clip, Outside Moulding, No.1
9018906211	90189-06211	GROMMET SCREW
9046710216	90467-10216	Clip, Engine Under Cover, No.2

OEM	Part name	Category
48691-18010	Damper, Suspension Tower	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
52108-18010	Extension Sub-Assy, Rear Bumper, Center	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
52115-77010	Support, Rear Bumper Side	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
52159-18901	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
52161-18010	Bracket, Rear Bumper Reinforcement, No.1	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
52161-18900	Piece, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
52162-18010	Bracket, Rear Bumper Reinforcement, No.2	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
52162-18900	Piece, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
52177-18010	Retainer, Rear Bumper Extension, Rh	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
52178-18010	Retainer, Rear Bumper Extension, Lh	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
52588-18010	Retainer, Rear Bumper End, Lh	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
53112-18010	Grille, Radiator, Rh Or Upper	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
53113-18010	Grille, Radiator, Lh Or Lower	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
58355-18010	Bracket, Rear Bumper Arm, Rh	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
58356-18010	Bracket, Rear Bumper Arm, Lh	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
90159-60293	New Genuine Part	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
90159-60422	SCREW WWASHER	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
90183-06019	Clip, Outside Moulding, No.1	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
90189-06211	GROMMET SCREW	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
90467-10216	Clip, Engine Under Cover, No.2	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
91552-B1030	BOLT, FLANGE	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
91552-L1030	New Genuine Part	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))
91673-A0614	BOLT, FLANGE W-WASER	Rear Bumper & Bumper Stay ([02.2016 - ] (1602- ))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 94
Collected: 2026-08-02
