GRMN86

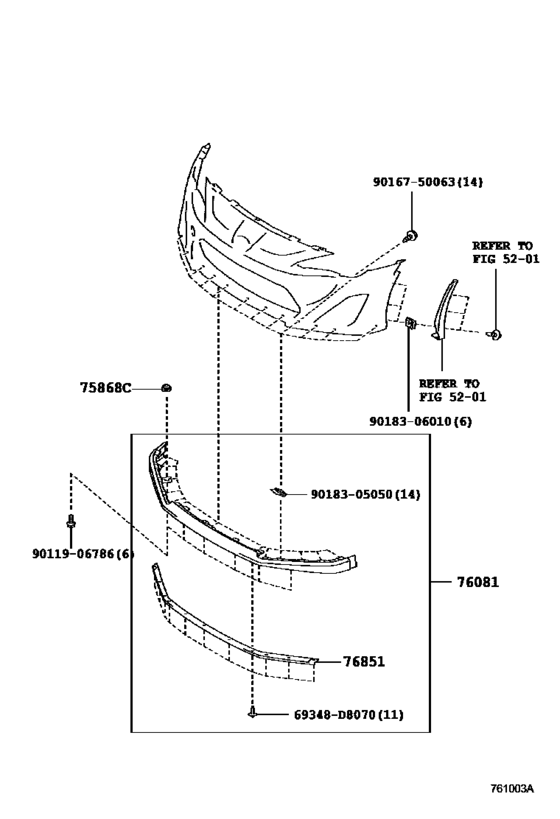

Mudguard & Spoiler ([02.2016 - ] ﾌﾛﾝﾄ (1602- )) 8
| # | OEM | Part name |
|---|---|---|
| 69348 | 69348-D8070 | Joint, Adjusting |
| 75868 | 90467-06169 | Clip |
| 76081 | 76081-18010 | Spoiler Sub-Assy, Front |
| 76851 | 76851-18010 | Cover, Front Spoiler |
| 9011906786 | 90119-06786 | BOLT WWASHER |
| 9016750063 | 90167-50063 | SCREW PAN TAPPING |
| 9018305050 | 90183-05050 | NUT SPRING |
| 9018306010 | 90183-06010 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 69348-D8070 | Joint, Adjusting | Mudguard & Spoiler ([02.2016 - ] ﾌﾛﾝﾄ (1602- )) |
| 76081-18010 | Spoiler Sub-Assy, Front | Mudguard & Spoiler ([02.2016 - ] ﾌﾛﾝﾄ (1602- )) |
| 76851-18010 | Cover, Front Spoiler | Mudguard & Spoiler ([02.2016 - ] ﾌﾛﾝﾄ (1602- )) |
| 90119-06786 | BOLT WWASHER | Mudguard & Spoiler ([02.2016 - ] ﾌﾛﾝﾄ (1602- )) |
| 90167-50063 | SCREW PAN TAPPING | Mudguard & Spoiler ([02.2016 - ] ﾌﾛﾝﾄ (1602- )) |
| 90183-05050 | NUT SPRING | Mudguard & Spoiler ([02.2016 - ] ﾌﾛﾝﾄ (1602- )) |
| 90183-06010 | NUT | Mudguard & Spoiler ([02.2016 - ] ﾌﾛﾝﾄ (1602- )) |
| 90467-06169 | Clip | Mudguard & Spoiler ([02.2016 - ] ﾌﾛﾝﾄ (1602- )) |
