GRMN86

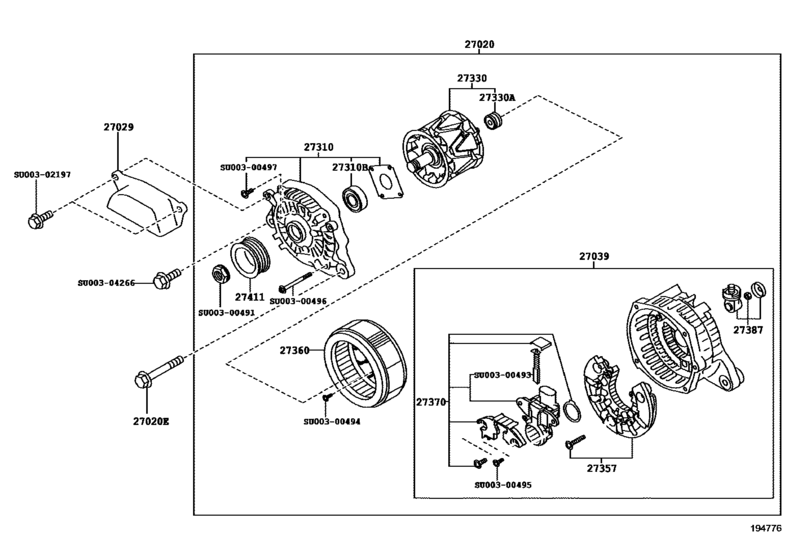

Alternator ([02.2016 - ] (1602- )) 12
| # | OEM | Part name |
|---|---|---|
| 27020 | 23700-AA751 | Alternator Assy |
| 27029 | 23774-AA060 | Cover, Alternator |
| 27039 | 23727-AA610 | Cover, Alternator Rear End |
| 27310 | 23718-AA260 | Frame Assy, Drive End, Alternator |
| 27310 | 23721-AA071 | Bearing(For Alternator Drive End Frame) |
| 27330 | 23708-AA280 | Rotor Assy, Alternator |
| 27330 | 23721-AA121 | Bearing(For Alternator Rotor) |
| 27357 | 23830-AA280 | Holder, Alternator, W/rectifier |
| 27360 | 23712-AA220 | Coil Assy, Alternator |
| 27370 | 23815-AA280 | Holder Assy, Alternator Brush |
| 27387 | 23797-AA110 | Insulator, Terminal |
| 27411 | 23752-AA140 | Pulley, Alternator |
| OEM | Part name | Category |
|---|---|---|
| 23700-AA751 | Alternator Assy | Alternator ([02.2016 - ] (1602- )) |
| 23708-AA280 | Rotor Assy, Alternator | Alternator ([02.2016 - ] (1602- )) |
| 23712-AA220 | Coil Assy, Alternator | Alternator ([02.2016 - ] (1602- )) |
| 23718-AA260 | Frame Assy, Drive End, Alternator | Alternator ([02.2016 - ] (1602- )) |
| 23721-AA071 | Bearing(For Alternator Drive End Frame) | Alternator ([02.2016 - ] (1602- )) |
| 23721-AA121 | Bearing(For Alternator Rotor) | Alternator ([02.2016 - ] (1602- )) |
| 23727-AA610 | Cover, Alternator Rear End | Alternator ([02.2016 - ] (1602- )) |
| 23752-AA140 | Pulley, Alternator | Alternator ([02.2016 - ] (1602- )) |
| 23774-AA060 | Cover, Alternator | Alternator ([02.2016 - ] (1602- )) |
| 23797-AA110 | Insulator, Terminal | Alternator ([02.2016 - ] (1602- )) |
| 23815-AA280 | Holder Assy, Alternator Brush | Alternator ([02.2016 - ] (1602- )) |
| 23830-AA280 | Holder, Alternator, W/rectifier | Alternator ([02.2016 - ] (1602- )) |
