GRJ71

Toyota LAND-CRUISER · 2009 · 3,480 parts · 202 categories
GRJ71 ×

← Back to categories

3,480 items

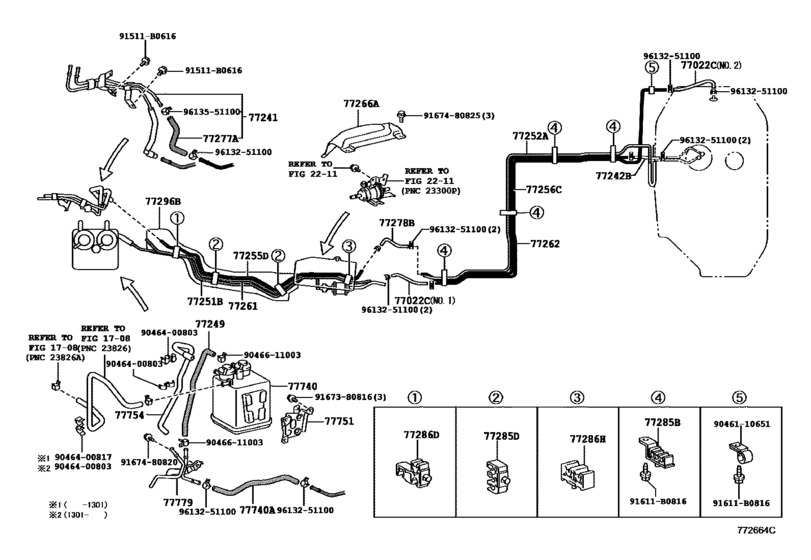

Fuel Tank & Tube ([07.2009 - ] FUEL TUBE (0907- )GRJ71) 38
#OEMPart name
77022 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77022 95337-06020 Hose, Differential Pressure Control
77022 95333-06030 Hose, Fuel
77022 95338-06030 HOSE, FUEL
77241 77205-60C80 Tube, Fuel Main, No.1
77242 77259-60680 Hose, Fuel, No.2 (For Main Tube, No.2)
77249 77249-60210 Hose, Fuel Emission
77251 77252-60840 Tube, Fuel Main
77252 77252-60890 Tube, Fuel Main, No.2
77255 77256-60820 Tube, Fuel Return
77256 77256-60890 Tube, Fuel Return, No.2
77261 77262-60410 Tube Sub-Assy, Fuel Emission
77262 77262-60340 Tube, Fuel Emission, No.2
77266 77266-60090 Protector, Fuel Tube, No.1
77277 77259-60B20 Hose, Fuel, No.1(For Return Tube, No.1)
77278 95334-06017 Hose, Fuel, No.2 (For Fuel Return Tube)
77285 77285-60420 Clamp, Fuel Tube W/grommet, No.1
77285 77285-60790 Clamp, Fuel Tube, No.1
77286 77285-60A90 Clamp, Fuel Tube, No.2
77286 77285-34031 Clamp, Fuel Tube, No.1
77296 77296-60160 Support, Fuel Tube Protector, No.1
77740 77704-60330 Canister Assy, Charcoal
77751 77751-60350 Bracket, Charcoal Canister Base
77754 77754-60360 Hose, Charcoal Canister Outlet, No.1
77779 77779-60060 Tube, Charcoal Canister Outlet
91511 91511-B0616 BOLT, FLANGE
91511 90080-10164 BOLT, FLANGE
91611 91611-B0816 Bolt
9046110651 90461-10651 New Genuine Part
9046400803 90464-00803 New Genuine Part
9046400817 90464-00817 Clamp
9046611003 90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)
9046611003 90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)
9167380816 91673-80816 Bolt (For Transmission Control Cable Bracket)
9167480820 91674-80820 BOLT FLANGE
9167480825 91674-80825 BOLT FLANGE
9613251100 96132-51100 Clip (For Hose)
9613551100 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
