Search › Model › GRJ71

GRJ71

Toyota LAND-CRUISER · 2009 · 3,480 parts · 202 categories

3,480 items

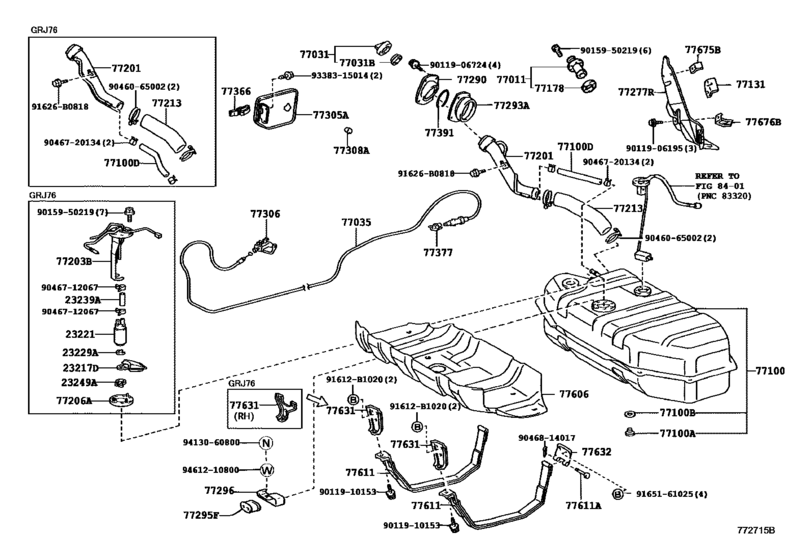

Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71) 51

#	OEM	Part name
23217	23217-31140	Filter, Fuel Pump
23221	23221-31150	Pump Assy, Fuel
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23239	23239-11010	Hose, Fuel Pump
23249	23249-74610	Rubber, Cushion(For Fuel Pump)
77011	77011-60180	Pipe Sub-Assy, Fuel Tank Filler, Lower
77031	77300-28010	Cap Assy, Fuel Tank
77031	77316-16010	Gasket (For Fuel Tank Cap)
77100	77001-60522	Tank Assy, Fuel
77100	90105-12116	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77100	90445-22024	Hose, Fuel, No.1(For Fuel Tank)
77131	77131-90K00	Bracket, Fuel Tank Filler Pipe Support
77178	77178-20010	Gasket, Fuel Tank Filler Pipe, Lower
77201	77201-60770	Pipe Sub-Assy, Fuel Tank Inlet
77203	77203-60270	Tube Sub-Assy, Fuel Suction
77206	77169-14010	Gasket, Fuel Pump Bracket
77213	77213-60160	Hose, Fuel Tank Sub Inlet
77277	77277-90K01	Protector, Fuel Tank Filler Pipe
77290	77290-60030	Shield Assy, Fuel Tank Filler Pipe
77293	77293-90K00	Shield, Fuel Tank Filler Pipe, No.3
77295	90480-01303	Grommet, Fuel Hose
77296	90949-01182	Plate, Fuel Tube Grommet Support
77305	77305-90K00	Lid Sub-Assy, Fuel Filler Opening
77308	90541-05018	Cushion(For Fuel Inlet Box Cover)
77366	77366-12010	Spring, Fuel Filler Opening Lid Hinge
77391	77391-32010	Ring, Fuel Inlet Box
77606	77606-60030	Protector Sub-Assy, Fuel Tank, No.1
77611	77601-60240	Band, Fuel Tank
77611	90240-10025	Pin (For Fuel Tank Band)
77631	77614-60050	Bracket, Fuel Tank, No.1
77632	77625-60020	Bracket, Fuel Tank, No.2
77675	77675-90K00	Bracket, Fuel Tank Filler Pipe Protector, No.1
77676	77676-90K00	Bracket, Fuel Tank Filler Pipe Protector, No.2
91612	91612-B1020	Bolt (For Transfer Case)Cover No.2
91626	91626-B0818	New Genuine Part
9011906195	90119-06195	New Genuine Part
9011906724	90119-06724	BOLT WWASHER
9011910153	90119-10153	BOLT
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9046065002	90460-65002	Clamp Or Clip(For Air Hose, No.1)
9046712067	90467-12067	Clip(For Fuel Pump Hose)
9046720134	90467-20134	Clip(For Ventilation Hose No.2)
9046814017	90468-14017	Clip, No.2(For Parking Brake)
9165161025	91651-61025	Bolt with washer
9338315014	93383-15014	Screw(For Steering Tilt Lever)
9413060800	94130-60800	Nut(For Clutch Pedal Stopper)
9413060800	90170-A0003	New Genuine Part
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)

OEM	Part name	Category
23217-31140	Filter, Fuel Pump	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
23219-03010	Clip(For Fuel Pump Filter)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
23221-31150	Pump Assy, Fuel	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
23229-16010	Clip(For Fuel Pump Filter)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
23239-11010	Hose, Fuel Pump	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
23249-74610	Rubber, Cushion(For Fuel Pump)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77001-60522	Tank Assy, Fuel	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77011-60180	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77131-90K00	Bracket, Fuel Tank Filler Pipe Support	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77169-14010	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77178-20010	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77201-60770	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77203-60270	Tube Sub-Assy, Fuel Suction	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77213-60160	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77277-90K01	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77290-60030	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77293-90K00	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77300-28010	Cap Assy, Fuel Tank	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77305-90K00	Lid Sub-Assy, Fuel Filler Opening	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77366-12010	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77391-32010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77601-60240	Band, Fuel Tank	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77606-60030	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77614-60050	Bracket, Fuel Tank, No.1	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77625-60020	Bracket, Fuel Tank, No.2	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77675-90K00	Bracket, Fuel Tank Filler Pipe Protector, No.1	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
77676-90K00	Bracket, Fuel Tank Filler Pipe Protector, No.2	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90119-06195	New Genuine Part	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90119-06724	BOLT WWASHER	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90119-10153	BOLT	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90159-50219	BOLT	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90170-A0003	New Genuine Part	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90240-10025	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90445-22024	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90460-65002	Clamp Or Clip(For Air Hose, No.1)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90467-12067	Clip(For Fuel Pump Hose)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90467-20134	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90468-14017	Clip, No.2(For Parking Brake)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90480-01303	Grommet, Fuel Hose	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90541-05018	Cushion(For Fuel Inlet Box Cover)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
90949-01182	Plate, Fuel Tube Grommet Support	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
91626-B0818	New Genuine Part	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
91651-61025	Bolt with washer	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
93383-15014	Screw(For Steering Tilt Lever)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
94130-60800	Nut(For Clutch Pedal Stopper)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)
94612-10800	Washer, Plate(For Repair Actuator Set)	Fuel Tank & Tube ([07.2009 - ] FUEL TANK (0907-1208)GRJ76 ; (0907- )GRJ71)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 202
Collected: 2026-08-02
