Search › Model › GRJ71
GRJ71

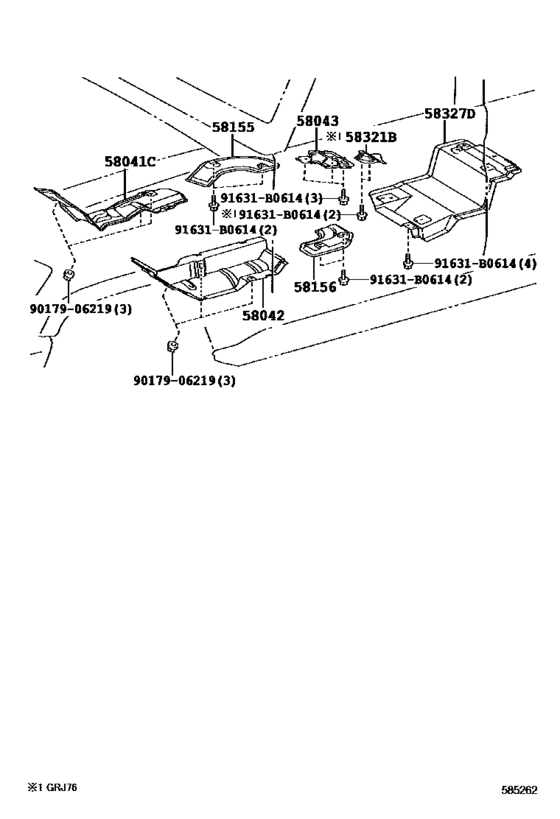

Floor Insulator ([07.2009 - ] (0907- )GRJ71,76) 9
| # | OEM | Part name |
|---|---|---|
| 58041 | 58041-60040 | Insulator Sub-Assy, Front Floor Heat, No.1 |
| 58042 | 58042-60040 | Insulator Sub-Assy, Front Floor Heat, No.2 |
| 58043 | 58043-60030 | Insulator Sub-Assy, Main Muffler Heat, Rear |
| 58155 | 58155-60081 | Insulator, Front Floor Heat, No.3 |
| 58156 | 58156-60030 | Insulator, Front Floor Heat, No.4 |
| 58327 | 58327-60030 | Insulator, Main Muffler Heat, Upper |
| 91631 | 91631-B0614 | BOLT WWASHER |
| 9017906219 | 90179-06219 | Nut |
| 9017906219 | 90182-A0005 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 58041-60040 | Insulator Sub-Assy, Front Floor Heat, No.1 | Floor Insulator ([07.2009 - ] (0907- )GRJ71,76) |
| 58042-60040 | Insulator Sub-Assy, Front Floor Heat, No.2 | Floor Insulator ([07.2009 - ] (0907- )GRJ71,76) |
| 58043-60030 | Insulator Sub-Assy, Main Muffler Heat, Rear | Floor Insulator ([07.2009 - ] (0907- )GRJ71,76) |
| 58155-60081 | Insulator, Front Floor Heat, No.3 | Floor Insulator ([07.2009 - ] (0907- )GRJ71,76) |
| 58156-60030 | Insulator, Front Floor Heat, No.4 | Floor Insulator ([07.2009 - ] (0907- )GRJ71,76) |
| 58327-60030 | Insulator, Main Muffler Heat, Upper | Floor Insulator ([07.2009 - ] (0907- )GRJ71,76) |
| 90179-06219 | Nut | Floor Insulator ([07.2009 - ] (0907- )GRJ71,76) |
| 90182-A0005 | Nut | Floor Insulator ([07.2009 - ] (0907- )GRJ71,76) |
| 91631-B0614 | BOLT WWASHER | Floor Insulator ([07.2009 - ] (0907- )GRJ71,76) |
