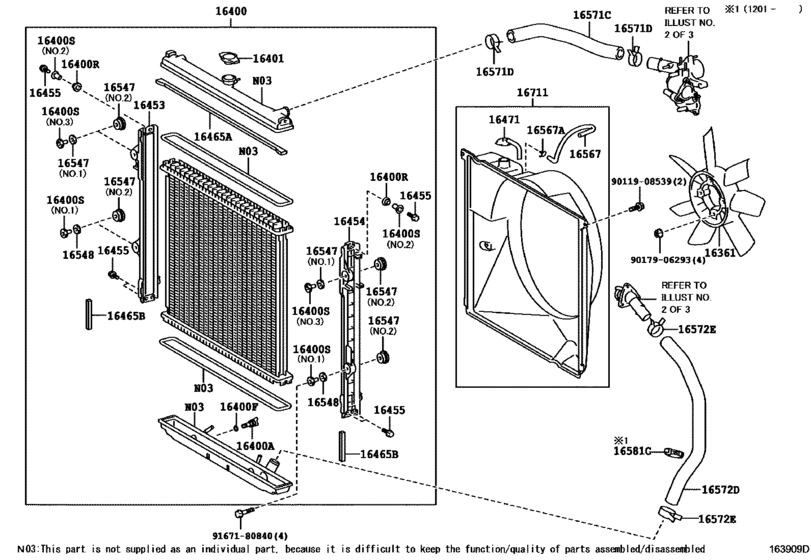

| 16361-31060 |
Fan |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16400-31604 |
Radiator Assy |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16401-17010 |
Cap Sub-Assy, Radiator |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16405-50080 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16417-30170 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16418-15520 |
Packing(For Radiator Drain Cock) |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16444-50370 |
Bushing(For Radiator) |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16445-31570 |
Collar(For Radiator) |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16445-50370 |
Collar(For Radiator) |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16445-50380 |
Collar(For Radiator) |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16453-50370 |
Plate, Radiator Side |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16454-50370 |
Plate, Radiator Side |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16455-50370 |
Bolt, Radiator Side Support Plate |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16465-50370 |
Packing, Radiator |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16466-50370 |
Packing, Radiator, No.2 |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16477-50220 |
Hose(For Radiator Reserve Tank) |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16547-50370 |
Bush, Radiator Support, No.1 |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16547-50381 |
Bush, Radiator Support, No.1 |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16548-50370 |
Bush, Radiator Support, No.2 |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16571-31241 |
Hose, Radiator, No.1 |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16572-31292 |
Hose, Radiator, No.2 |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16581-31070 |
Clamp, Hose(For Water Hose) |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 16711-31391 |
Shroud, Fan |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 90119-08539 |
BOLT |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 90179-06293 |
NUT |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 90466-11001 |
Clamp Or Clip(For Radiator Reserve Tank Hose) |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 91671-80840 |
BOLT FLANGE |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
| 96136-44301 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([09.2007 - ] (0709- )1GRFE) |
