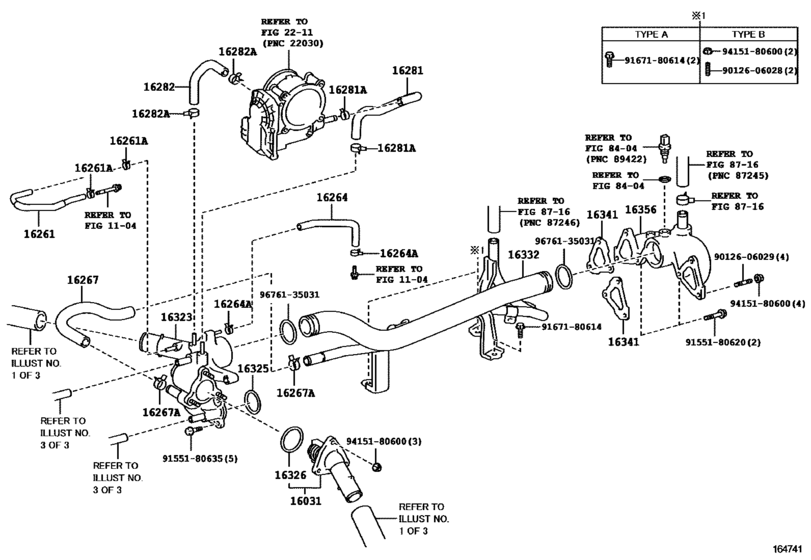

| 16031-31011 |
Water Inlet Sub-Assy, W/thermostat |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16206-31150 |
Pipe Sub-Assy, Water By-Pass |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16261-31100 |
Hose, Water By-Pass |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16264-31110 |
Hose, Water By-Pass, No.2 |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16267-31010 |
Hose, Water By-Pass, No.3 |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16281-31060 |
Hose, Water By-Pass, No.4 |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16282-31040 |
Hose, Water By-Pass, No.5 |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16283-31030 |
Hose, Water By-Pass, No.6 |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16295-31020 |
Hose, Water By-Pass, No.7 |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16296-31070 |
Hose, Water By-Pass, No.8 |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16297-31040 |
Hose, Water By-Pass, No.9 |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16306-31021 |
Pipe, Water Outlet, No.1 |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16323-31021 |
Housing, Water Inlet |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16325-31010 |
Gasket, Water Inlet Housing, No.1 |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16326-31020 |
Gasket, Water Inlet Housing, No.2 |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16341-31010 |
Gasket, Water Outlet |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 16356-31011 |
Joint, Water By-Pass, Rear |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 90126-06028 |
Bolt, Stud(For Oil Pan) |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 90126-06029 |
Bolt, Stud(For Vacuum Transmitting Pipe) |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 90126-A0014 |
Bolt, Stud(For Oil Strainer) |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 91551-80620 |
Bolt |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 91551-80635 |
Bolt(For Head To Camshaft Bearing Cap) |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 91671-80614 |
Bolt (For Transmission Control Cable Bracket) |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 94151-80600 |
Nut, Cap(For Cylinder Head Cover) |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 96136-41501 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 96136-42501 |
Clip(For Ventilation Hose) |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 96136-52201 |
Clip(For Ventilation Hose No.2) |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 96137-41301 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
| 96761-35031 |
Ring, O(For Water Inlet Pipe) |
Radiator & Water Outlet ([01.2012 - ] (1201- )1GRFE) |
