GRJ200

Toyota LAND-CRUISER · 2007 · 4,307 parts · 249 categories

4,307 items

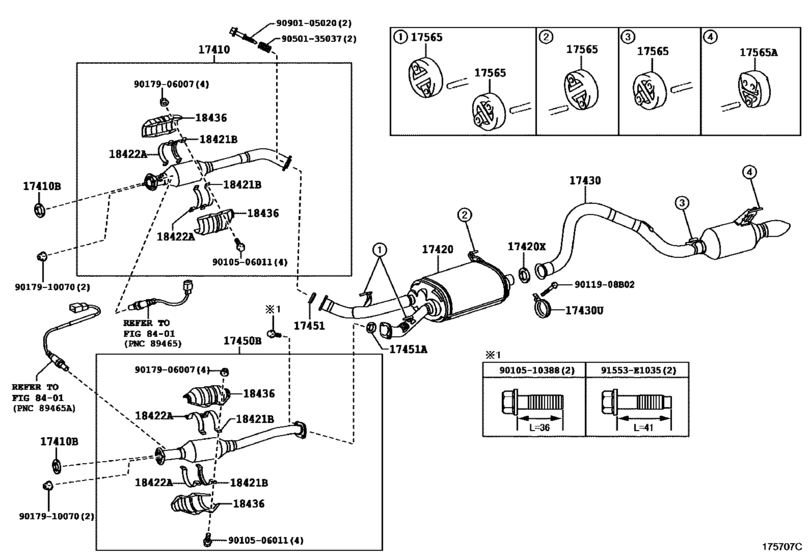

Exhaust Pipe ([09.2007 - ] (0709- )1GRFE) 24

#	OEM	Part name
0	91553-E1035	BOLT FLANGE
17410	17410-31E50	Pipe Assy, Exhaust, Front
17410	90917-06090	Gasket, Exhaust Pipe
17420	17420-31200	Pipe Assy, Exhaust, Center
17420	90917-06085	Gasket, Exhaust Pipe, Center
17430	17430-31A40	Pipe Assy, Exhaust, Tail
17430	90080-46263	Clamp No.1, Exhaust Tail Pipe (For Rear)
17450	17450-31180	Pipe Assy, Exhaust, Front No.2
17451	17451-28040	Gasket, Exhaust Pipe
17451	17451-28041	Gasket, Exhaust Pipe
17451	90917-06089	Gasket, Exhaust Pipe
17565	17565-28010	Support, Exhaust Pipe, No.1
17565	17565-31050	Support, Exhaust Pipe, No.1
18421	18421-22020	Stay, Converter Protector, No.2
18422	18421-50010	Stay, Converter Protector, Lh
18436	18435-50130	Protector, Monolithic Converter
9011908	90119-08B02	BOLT WWASHER
9010506011	90105-06011	BOLT
9010510388	90105-10388	BOLT
9017906007	90179-06007	Nut
9017910070	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9017910070	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)

OEM	Part name	Category
17410-31E50	Pipe Assy, Exhaust, Front	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
17420-31200	Pipe Assy, Exhaust, Center	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
17430-31A40	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
17450-31180	Pipe Assy, Exhaust, Front No.2	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
17451-28040	Gasket, Exhaust Pipe	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
17451-28041	Gasket, Exhaust Pipe	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
17565-28010	Support, Exhaust Pipe, No.1	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
17565-31050	Support, Exhaust Pipe, No.1	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
18421-22020	Stay, Converter Protector, No.2	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
18421-50010	Stay, Converter Protector, Lh	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
18435-50130	Protector, Monolithic Converter	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90080-46263	Clamp No.1, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90105-06011	BOLT	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90105-10388	BOLT	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90119-08B02	BOLT WWASHER	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90179-06007	Nut	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90917-06085	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90917-06089	Gasket, Exhaust Pipe	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
90917-06090	Gasket, Exhaust Pipe	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
91553-E1035	BOLT FLANGE	Exhaust Pipe ([09.2007 - ] (0709- )1GRFE)
