GRJ152

Toyota LAND-CRUISER-PRADO · 2015 · 4,765 parts · 232 categories

4,765 items

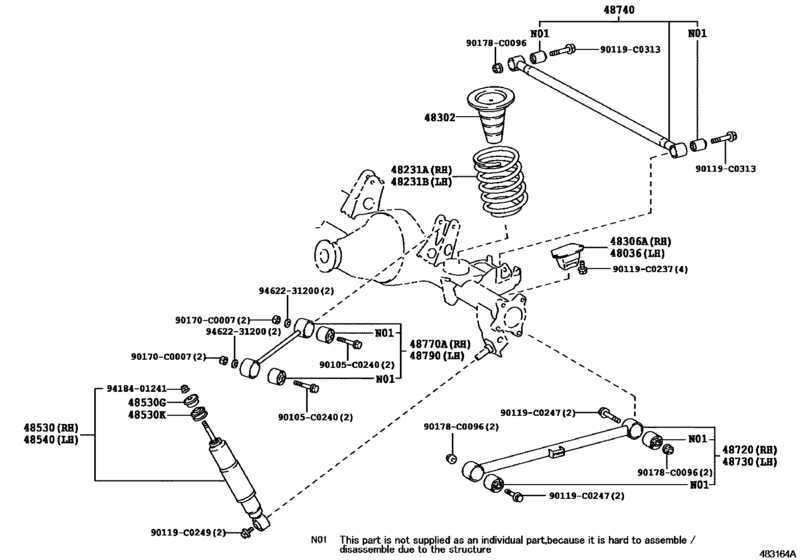

Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX) 47

#	OEM	Part name
31478	31478-20020	Cap, Rear Shock Absorber Bleeder Plug, Rh
44327	90430-16016	Gasket
44327	96341-41603	Bolt, Union(For Rear Stabilizer Contorol Tube)
48036	48036-60030	Bumper Sub-Assy, Rear Spring, Lh
48036	48306-0G020	Bumper Sub-Assy, Rear Spring, Lh
48231	48231-0G050	Spring, Coil, Rear Rh
48302	48302-60110	Spring Sub-Assy, Hollow
48306	48306-60240	Bumper Sub-Assy, Rear Spring, Rh
48530	48530-69535	Absorber Assy, Shock, Rear
48530	48530-8Z047	Absorber Assy, Shock, Rear Rh
48530	48505-0G010	Cushion, Rear Shock Absorber, No.1
48530	48505-0G030	Cushion, Rear Shock Absorber, No.1
48530	48505-0G020	Cushion, Rear Shock Absorber, No.2
48530	48505-0G040	Cushion, Rear Shock Absorber, No.2
48720	48720-0G010	Arm Assy, Lower Control, Rh
48740	48740-0G010	Rod Assy, Rear Lateral Control
48770	48770-0G010	Arm Assy, Upper Control, Rear Rh
48790	48710-0G010	Arm Assy, Upper Control, Rear Rh
48790	48790-0G010	Arm Assy, Upper Control, Rear Lh
48805	48805-60160	Bar, Stabilizer, Rear - REAR STABILIZER
48805	48805-60180	BAR SUBASSY RR
48818	48818-0G010	Bush, Stabilizer, Rear
48826	48826-0G010	Protector, Stabilizer Control Valve
48830	48830-60060	Link Assy, Rear Stabilizer
48835	48835-0G010	Bracket, Rear Stabilizer, Lower
48860	48006-60031	Housing Assy, Stabilizer Control W/accumulator
48880	48880-60050	Tube Assy, Rear Stabilizer Control, No.1
48880	48880-60051	Tube Assy, Rear Stabilizer Control, No.1
48885	48886-60031	Cylinder, Rear Stabilizer Control
48885	48886-60032	Cylinder, Rear Stabilizer Control
90105	90105-C0240	New Genuine Part
90105	90105-C0209	New Genuine Part
90119	90119-C0237	New Genuine Part
90119	90119-C0247	New Genuine Part
90119	90119-C0249	New Genuine Part
90119	90119-C0313	New Genuine Part
90119	90119-C0105	New Genuine Part
90119	90119-C0118	New Genuine Part
90119	90119-C0309	New Genuine Part
90170	90170-C0007	New Genuine Part
90178	90178-C0096	New Genuine Part
90178	90178-C0095	New Genuine Part
3147860020	31478-60020	Cap, Bleeder Plug(For Front Suspension Control)
9010514082	90105-14082	BOLT, WASHER BASED
9418401241	94184-01241	Nut(For Front Support To Front Shock Absorber)
9462231200	94622-31200	WASHER PLATE
9671124015	96711-24015	Ring, O (For Front Power Take-Off Shaft)

OEM	Part name	Category
31478-20020	Cap, Rear Shock Absorber Bleeder Plug, Rh	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
31478-60020	Cap, Bleeder Plug(For Front Suspension Control)	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48006-60031	Housing Assy, Stabilizer Control W/accumulator	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48036-60030	Bumper Sub-Assy, Rear Spring, Lh	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48231-0G050	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48302-60110	Spring Sub-Assy, Hollow	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48306-0G020	Bumper Sub-Assy, Rear Spring, Lh	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48306-60240	Bumper Sub-Assy, Rear Spring, Rh	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48505-0G010	Cushion, Rear Shock Absorber, No.1	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48505-0G020	Cushion, Rear Shock Absorber, No.2	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48505-0G030	Cushion, Rear Shock Absorber, No.1	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48505-0G040	Cushion, Rear Shock Absorber, No.2	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48530-69535	Absorber Assy, Shock, Rear	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48530-8Z047	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48710-0G010	Arm Assy, Upper Control, Rear Rh	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48720-0G010	Arm Assy, Lower Control, Rh	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48740-0G010	Rod Assy, Rear Lateral Control	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48770-0G010	Arm Assy, Upper Control, Rear Rh	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48790-0G010	Arm Assy, Upper Control, Rear Lh	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48805-60160	Bar, Stabilizer, Rear - REAR STABILIZER	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48805-60180	BAR SUBASSY RR	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48818-0G010	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48826-0G010	Protector, Stabilizer Control Valve	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48830-60060	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48835-0G010	Bracket, Rear Stabilizer, Lower	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48880-60050	Tube Assy, Rear Stabilizer Control, No.1	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48880-60051	Tube Assy, Rear Stabilizer Control, No.1	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48886-60031	Cylinder, Rear Stabilizer Control	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
48886-60032	Cylinder, Rear Stabilizer Control	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90105-14082	BOLT, WASHER BASED	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90105-C0209	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90105-C0240	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90119-C0105	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90119-C0118	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90119-C0237	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90119-C0247	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90119-C0249	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90119-C0309	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90119-C0313	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90170-C0007	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90178-C0095	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90178-C0096	New Genuine Part	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
90430-16016	Gasket	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
94184-01241	Nut(For Front Support To Front Shock Absorber)	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
94622-31200	WASHER PLATE	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
96341-41603	Bolt, Union(For Rear Stabilizer Contorol Tube)	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
96711-24015	Ring, O (For Front Power Take-Off Shaft)	Rear Spring & Shock Absorber ([05.2010 - ] (1005- )VX)
