Search › Model › GRJ152

GRJ152

Toyota LAND-CRUISER-PRADO · 2015 · 4,765 parts · 232 categories

← Back to categories

4,765 items

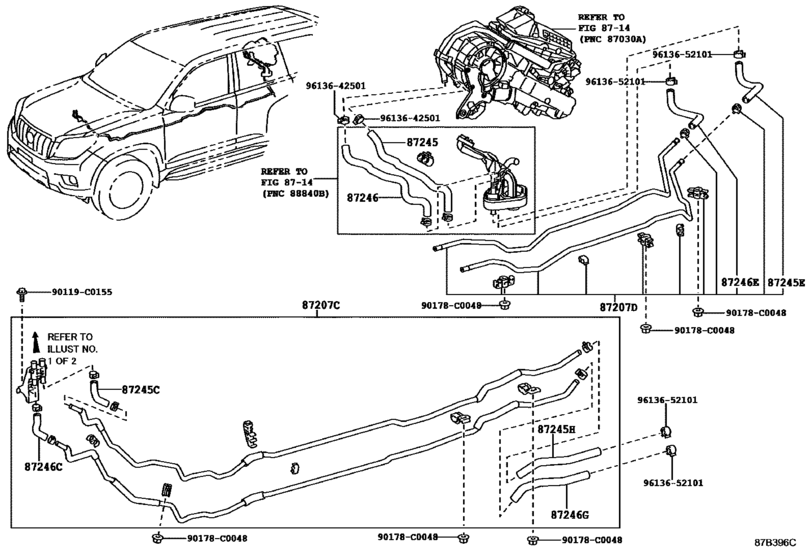

Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152) 15

#	OEM	Part name
87207	87207-0G022	Pipe & Hose Sub-Assy, Water C
87207	87207-0G010	Pipe & Hose Sub-Assy, Water D
87245	87245-60E60	Hose, Heater Water, Inlet - HEATER WATER, OUTLET
87245	87245-0G080	Hose, Heater Water ,inlet C
87245	87245-0G030	Hose, Heater Water, Inlet E
87245	87245-0G060	Hose, Heater Water, Inlet H
87246	87245-60E50	Hose, Heater Water, Outlet - HEATER WATER, INLET
87246	87245-0G070	Hose, Heater Water, Outlet C
87246	87245-0G040	Hose, Heater Water, Outlet E
87246	87245-0G050	Hose, Heater Water, Outlet G
87246	87245-0G150	Hose, Heater Water, Outlet C
90119	90119-C0155	New Genuine Part
90178	90178-C0048	New Genuine Part
9613642501	96136-42501	Clip(For Ventilation Hose)
9613652101	96136-52101	Clip(For Ventilation Hose)

OEM	Part name	Category
87207-0G010	Pipe & Hose Sub-Assy, Water D	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
87207-0G022	Pipe & Hose Sub-Assy, Water C	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
87245-0G030	Hose, Heater Water, Inlet E	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
87245-0G040	Hose, Heater Water, Outlet E	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
87245-0G050	Hose, Heater Water, Outlet G	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
87245-0G060	Hose, Heater Water, Inlet H	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
87245-0G070	Hose, Heater Water, Outlet C	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
87245-0G080	Hose, Heater Water ,inlet C	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
87245-0G150	Hose, Heater Water, Outlet C	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
87245-60E50	Hose, Heater Water, Outlet - HEATER WATER, INLET	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
87245-60E60	Hose, Heater Water, Inlet - HEATER WATER, OUTLET	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
90119-C0155	New Genuine Part	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
90178-C0048	New Genuine Part	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
96136-42501	Clip(For Ventilation Hose)	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
96136-52101	Clip(For Ventilation Hose)	Heating & Air Conditioning - Water Piping ([09.2015 - ] REAR (1005-1509)GRJ150 ; (1509- )GRJ152)
