GRJ152

Toyota LAND-CRUISER-PRADO · 2015 · 4,765 parts · 232 categories
GRJ152 ×

← Back to categories

4,765 items

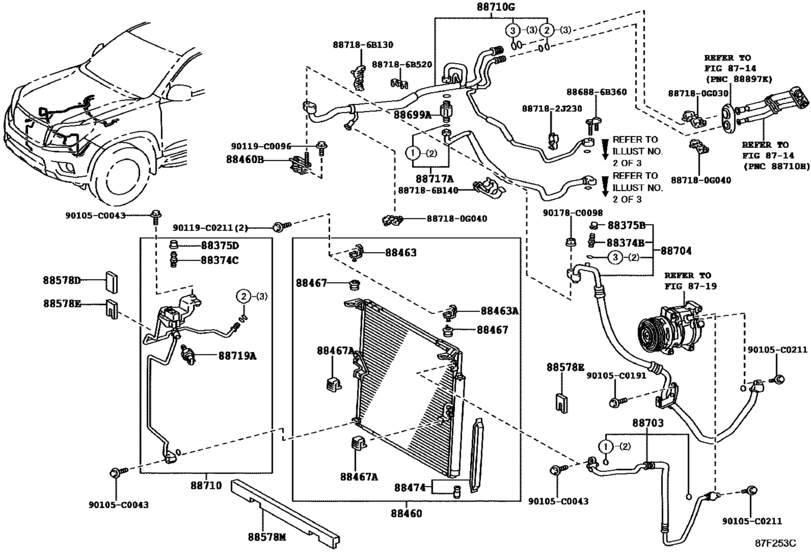

Heating & Air Conditioning - Cooler Piping ([09.2015 - ] FRONT,W/O(REAR) (1509- )GRJ152..TX) 33
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88460 88460-0G040 Condenser Assy, Cooler
88460 88688-6B140 Bracket, Cooler Condenser, No.1
88463 88463-0G010 Bracket, Cooler Condenser, No.1
88463 88463-0G020 Bracket, Cooler Condenser, No.2
88467 88467-0G010 Cushion, Cooler Condenser, No.1
88467 88467-35080 Cushion, Cooler Condenser, No.1
88474 88474-17010 Dryer, Cooler
88578 88578-0G090 Packing, Cooler Pipe, No.1
88578 88578-0G100 Packing, Cooler Pipe, No.2
88578 88578-0G050 Packing, Cooling Pipe, No.3
88699 88699-60010 Valve, Air
88703 88703-0G040 Hose Sub-Assy, Discharge
88704 88704-0G050 Hose Sub-Assy, Suction
88710 88710-0G110 Tube Assy, Air Conditioner
88710 88710-0G690 Tube & Accessory Assy, Air Conditioner, No.2
88717 88717-6B190 Pipe, Cooler Refrigerant Suction, A
88719 88719-33020 Sensor, Airconditioner Pressure
90105 90105-C0043 New Genuine Part
90105 90105-C0191 New Genuine Part
90105 90105-C0211 New Genuine Part
90119 90119-C0096 New Genuine Part
90119 90119-C0211 New Genuine Part
90178 90178-C0098 New Genuine Part
886886 88688-6B360 Bracket, Cooler Diaphragm
887180 88718-0G030 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0G040 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2J230 Pipe, Cooler Refrigerant Suction, No.2
887186 88718-6B130 Pipe, Cooler Refrigerant Suction, No.2
887186 88718-6B140 Pipe, Cooler Refrigerant Suction, No.2
887186 88718-6B520 Pipe, Cooler Refrigerant Suction, No.2
