GRJ152

Toyota LAND-CRUISER-PRADO · 2015 · 4,765 parts · 232 categories
GRJ152 ×

← Back to categories

4,765 items

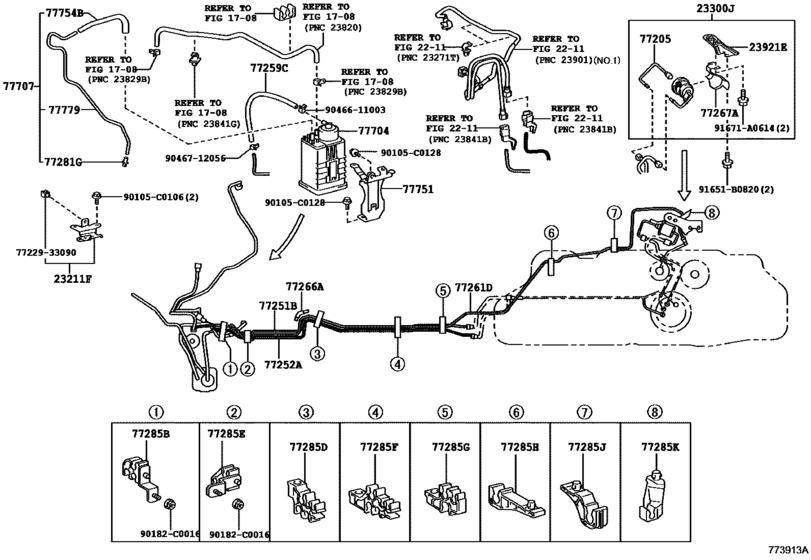

Fuel Tank & Tube ([09.2015 - ] FUEL TUBE (1509- )GRJ152) 37
#OEMPart name
23211 23264-31011 Bracket
23300 23310-31030 Filter Assy, Fuel
23300 23310-31031 Filter Assy, Fuel
23921 23921-30060 Support, Fuel Filter
23921 23921-31060 Support, Fuel Filter
77205 77205-60C90 Tube Sub-Assy, Fuel Main
77251 77251-0G030 Tube, Fuel Main
77252 77252-0G010 Tube, Fuel Main, No.2
77259 95333-06040 Hose
77261 77261-0G030 Tube, Fuel Tank To Canister
77266 77266-60160 Protector, Fuel Tube, No.1
77267 77266-60170 Protector, Fuel Tube, No.2
77281 77281-60430 Clamp, Fuel Hose
77285 77285-35631 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35670 Clamp, Fuel Tube, No.1
77285 77285-35641 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35680 Clamp, Fuel Tube, No.1
77285 77285-35690 Clamp, Fuel Tube, No.1
77285 77285-35700 Clamp, Fuel Tube, No.1
77285 77285-35710 Clamp, Fuel Tube, No.1
77285 77285-0G010 Clamp, Fuel Tube, No.1
77704 77704-63010 Canister Sub-Assy, Charcoal
77707 77707-0G010 Tube Sub-Assy, Charcoal Canister Outlet
77751 77751-0G010 Bracket, Charcoal Canister Base
77754 77754-60380 Hose, Charcoal Canister Outlet, No.1
77779 77779-0G010 Tube, Charcoal Canister Outlet
90105 90105-C0106 New Genuine Part
90105 90105-C0128 New Genuine Part
90182 90182-C0016 New Genuine Part
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
91671 91671-A0614 Bolt
7722933090 77229-33090 Clamp, Breather Tube
9046611003 90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)
9046611003 90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
