Search › Model › GRJ152

GRJ152

Toyota LAND-CRUISER-PRADO · 2015 · 4,765 parts · 232 categories

4,765 items

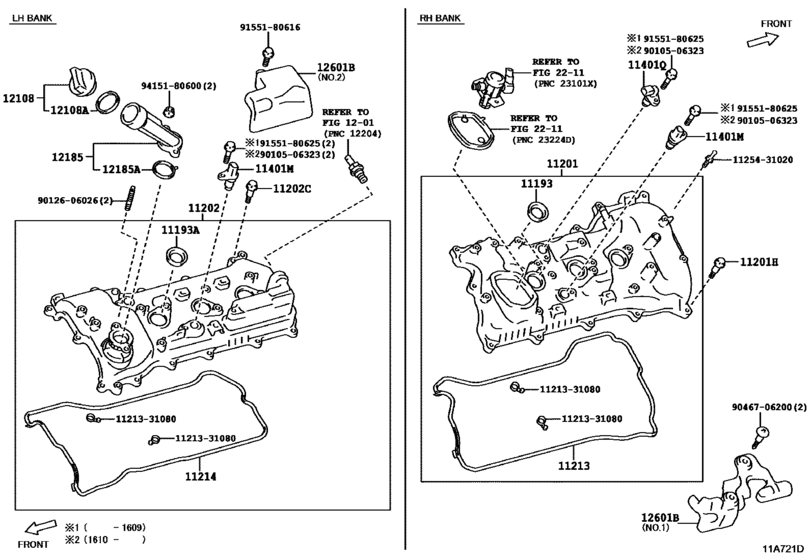

Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS) 25

#	OEM	Part name
11193	11193-31010	Gasket(For Spark Plug Tube)
11201	11201-31300	Cover Sub-Assy, Cylinder Head
11201	11201-31301	Cover Sub-Assy, Cylinder Head
11201	90109-06384	Bolt(For Cylinder Head Cover)
11202	11202-31110	Cover Sub-Assy, Cylinder Head, Lh
11213	11213-31070	Gasket, Cylinder Head Cover
11213	11213-31090	GASKET CYLINDER
11214	11214-31050	Gasket, Cylinder Head Cover, No.2
11214	11214-31070	GASKET CYLINDER
11401	90919-05060	Sensor, Cam Position
11401	90919-05061	Sensor, Cam Position
12108	12180-38010	Cap Sub-Assy, Oil Filler
12108	90430-35001	Gasket(For Oil Filler Cap)
12185	12190-31030	Housing, Oil Filler Cap
12185	12196-38010	Gasket, Oil Filler Cap Housing
12601	12601-31050	Cover Sub-Assy, Engine, No.1
12601	12601-31060	Cover Sub-Assy, Engine, No.1
1121331080	11213-31080	Gasket, Cylinder Head Cover, No.2
1125431020	11254-31020	Bracket, V-Bank Cover, No.1
9010506323	90105-06323	BOLT FLANGE
9012606026	90126-06026	Bolt, Stud(Manifold To Throttle Body)
9046706200	90467-06200	CLIP
9155180616	91551-80616	BOLT FLANGE
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
11193-31010	Gasket(For Spark Plug Tube)	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
11201-31300	Cover Sub-Assy, Cylinder Head	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
11201-31301	Cover Sub-Assy, Cylinder Head	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
11202-31110	Cover Sub-Assy, Cylinder Head, Lh	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
11213-31070	Gasket, Cylinder Head Cover	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
11213-31080	Gasket, Cylinder Head Cover, No.2	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
11213-31090	GASKET CYLINDER	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
11214-31050	Gasket, Cylinder Head Cover, No.2	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
11214-31070	GASKET CYLINDER	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
11254-31020	Bracket, V-Bank Cover, No.1	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
12180-38010	Cap Sub-Assy, Oil Filler	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
12190-31030	Housing, Oil Filler Cap	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
12196-38010	Gasket, Oil Filler Cap Housing	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
12601-31050	Cover Sub-Assy, Engine, No.1	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
12601-31060	Cover Sub-Assy, Engine, No.1	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
90105-06323	BOLT FLANGE	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
90109-06384	Bolt(For Cylinder Head Cover)	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
90126-06026	Bolt, Stud(Manifold To Throttle Body)	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
90430-35001	Gasket(For Oil Filler Cap)	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
90467-06200	CLIP	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
90919-05060	Sensor, Cam Position	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
90919-05061	Sensor, Cam Position	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
91551-80616	BOLT FLANGE	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
91551-80625	Bolt(For Camshaft Housing Set)	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([09.2015 - ] CYLINDER HEAD COVER (1509- )7GRFKS)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 232
Collected: 2026-08-02
