Search › Model › GRJ152
GRJ152

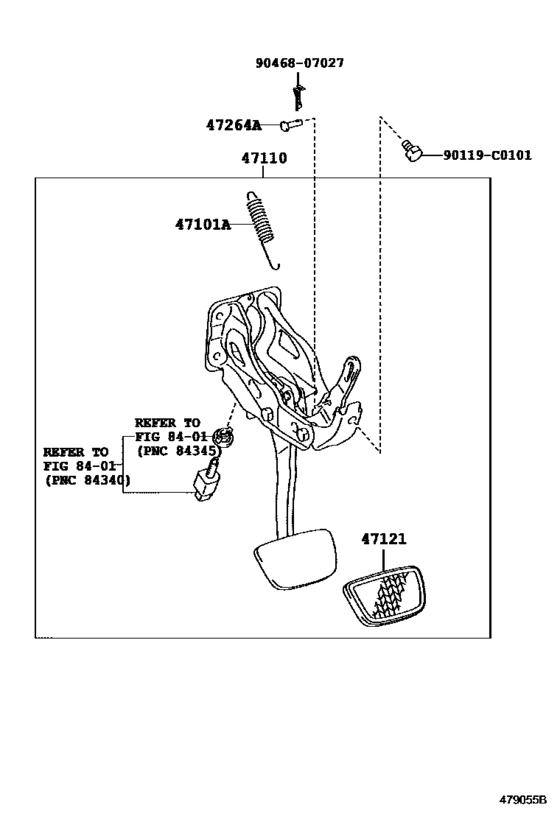

Brake Pedal & Bracket ([05.2010 - ] (1005- )GRJ15#) 6
| # | OEM | Part name |
|---|---|---|
| 47101 | 90507-20034 | Spring(For Brake Pedal Return) |
| 47110 | 47110-0G011 | Support Assy, Brake Pedal |
| 47121 | 47121-50020 | Pad, Brake Pedal |
| 47264 | 90240-06027 | Pin(For Push Rod) |
| 90119 | 90119-C0101 | New Genuine Part |
| 9046807027 | 90468-07027 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 47110-0G011 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([05.2010 - ] (1005- )GRJ15#) |
| 47121-50020 | Pad, Brake Pedal | Brake Pedal & Bracket ([05.2010 - ] (1005- )GRJ15#) |
| 90119-C0101 | New Genuine Part | Brake Pedal & Bracket ([05.2010 - ] (1005- )GRJ15#) |
| 90240-06027 | Pin(For Push Rod) | Brake Pedal & Bracket ([05.2010 - ] (1005- )GRJ15#) |
| 90468-07027 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([05.2010 - ] (1005- )GRJ15#) |
| 90507-20034 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([05.2010 - ] (1005- )GRJ15#) |
