Search › Model › GRJ125

GRJ125

Toyota LAND-CRUISER-PRADO · 2003 · 5,348 parts · 313 categories
GRJ125 ×

← Back to categories

5,348 items

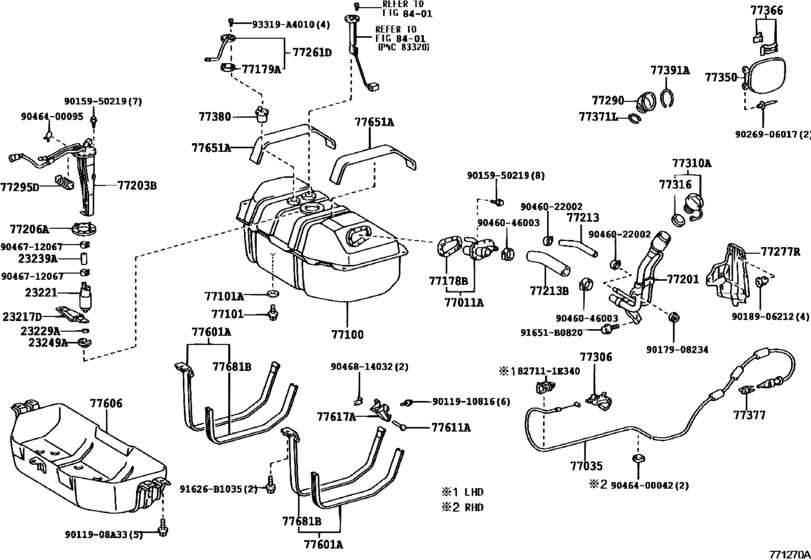

Fuel Tank & Tube ([01.2003 - ] FUEL TANK (0301- )GRJ125) 68
#OEMPart name
0 82711-1E340 Clamp, Hood Lock Control Cable
23217 23217-76040 Filter, Fuel Pump
23217 23217-46090 Filter, Fuel Pump
23221 23221-31010 Pump, Fuel
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23239 23239-11010 Hose, Fuel Pump
23249 23249-74610 Rubber, Cushion(For Fuel Pump)
77011 77011-60140 Pipe Sub-Assy, Fuel Tank Filler, Lower
77035 77035-60120 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-60640 Tank Assy, Fuel
77100 77001-60641 Tank Assy, Fuel
77101 90105-12116 Plug(For Fuel Tank)
77101 90430-12245 Gasket(For Fuel Tank)
77178 77178-34010 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-60880 Pipe Sub-Assy, Fuel Tank Inlet
77203 77203-60190 Tube Sub-Assy, Fuel Suction
77206 77169-14010 Gasket, Fuel Pump Bracket
77213 95312-13020 Hose, Fuel, No.1 (For Breather Tube)
77213 95313-13020 Hose, Fuel, No.1 (For Breather Tube)
77213 77213-60260 Hose, Fuel Tank To Filler Pipe
77261 77026-60150 Tube, Fuel Tank To Canister
77277 77277-60080 Protector, Fuel Tank Filler Pipe
77290 77291-60110 Shield Assy, Fuel Tank Filler Pipe
77295 77295-60270 Grommet, Fuel Tube
77306 77306-28050-A0 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-28050-C0 Fuel Lid Lock Open Lever Sub-Assy (Black)
77306 77306-58010-A0 Lever Sub-Assy, Fuel Lid Lock Open (Ivory)
77306 77306-58010-C0 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-35040 Cap Assy, Fuel Tank
77310 77300-47010 Cap Assy, Fuel Tank
77316 77316-33042 Gasket, Fuel Tank Cap
77350 77350-60080 Lid Assy, Fuel Filler Opening
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77366 77360-35040 Spring, Fuel Filler Opening Lid Hinge
77371 77371-35010 Ring, Fuel Tank Filler Pipe Shield
77377 77377-35010 Retainer, Fuel Filler Opening Lid Lock
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-60050 Ring, Fuel Inlet Box
77601 77601-60280 Band Sub-Assy, Fuel Tank, No.1
77601 77601-60410 Band Sub-Assy, Fuel Tank
77601 77617-60170 Union, Auxiliary Fuel Band
77606 77606-60150 Protector Sub-Assy, Fuel Tank, No.1
77611 77653-60070 Pin (For Fuel Tank Band)
77617 77617-60100 Union, Auxiliary Fuel Band
77651 77651-26070 Cushion, Fuel Tank, No.1
77681 77682-16010 Seat, Fuel Tank Band, Rh
91626 91626-B1035 BOLT WWASHER
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
93319 93319-A4010 SCREW WWASHER
9011908 90119-08A33 BOLT
9011910816 90119-10816 BOLT W-WASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9017908234 90179-08234 NUT
9018906212 90189-06212 GROMMET SCREW
9026906017 90269-06017 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046400042 90464-00042 Clamp (For Fuel Lid Lock Control Cable)
9046400095 90464-00095 New Genuine Part
9046712067 90467-12067 Clip(For Fuel Pump Hose)
9046814032 90468-14032 CLIP
